336 Rockwell Automation Publication 1756-RM003N-EN-P - October 2011
Chapter 7 Move/Logical Instructions (MOV, MVM, BTD, MVMT, BTDT, CLR, SWPB, AND, OR, XOR, NOT, BAND, BOR, BXOR, BNOT)

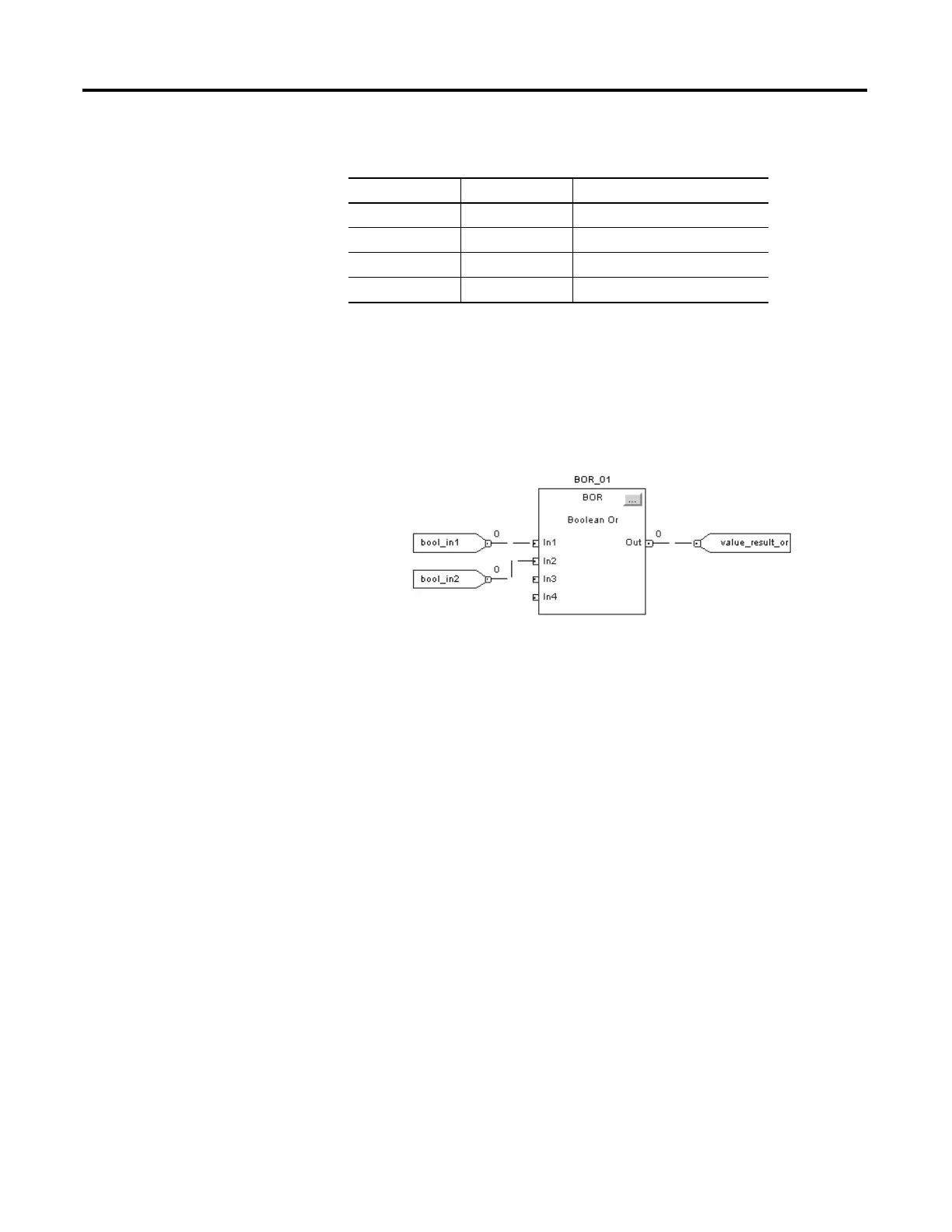

Example 1: This example ORs bool_in1 and bool_in2 and places the result in value_result_or.
Structured Text
value_result_or := bool_in1 OR bool_in2;
Function Block
Example 2: In this example, light1 is set (on) if the following occurs:
· Only bool_in1 is set (true)
· Only bool_in2 is set (true)
· Both bool_in1 and bool_in2 are set (true)
Otherwise, light1 is cleared (off ).
Structured Text
IF bool_in1 OR bool_in2 THEN
light1 := 1;
ELSE
light1 := 0;
END_IF;
If BOOL_IN1 is If BOOL_IN2 is Then VALUE_RESULT_OR is
000
011
101
111
