Appendix D User Interrupts

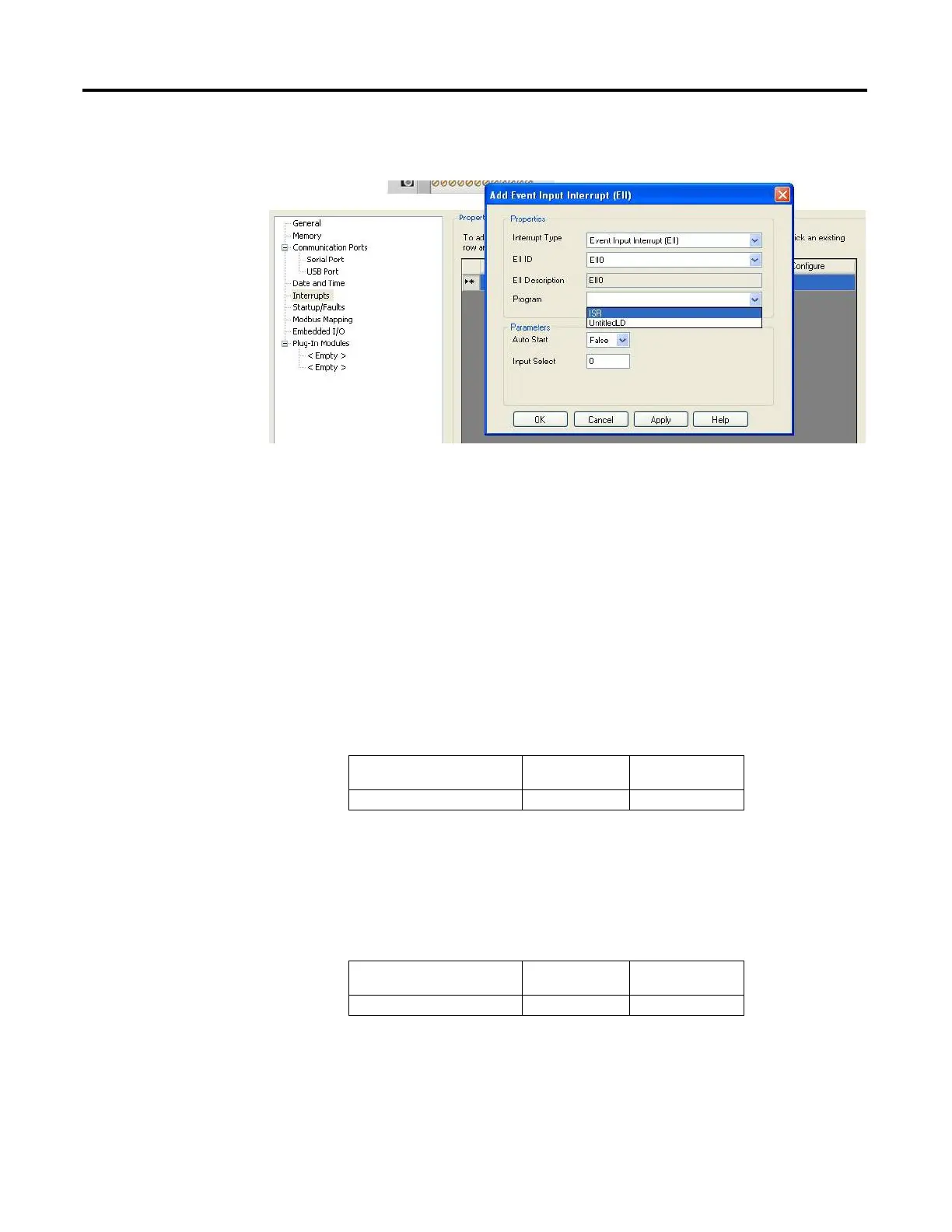

Configure the EII from the Interrupt Configuration window.
Event Input Interrupt (EII)
Function Configuration and
Status
EII Function Configuration
The Event Input Interrupt Function has the following related configuration
parameters.
EII Program POU
This is the name of the Program Organizational Unit (POU) which is executed
immediately when this EII Interrupt occurs. You can choose any
pre-programmed POU from the drop-down list.
EII Auto Start (EII0.AS)
AS (Auto Start) is a control bit that can be used in the control program. The auto
start bit is configured with the programming device and stored as part of the user
program. The auto start bit automatically sets the Event User Interrupt Enable bit
when the controller enters any executing mode.
EII Input Select (EII0.IS)
The IS (Input Select) parameter is used to configure each EII to a specific input
on the controller. Valid inputs are 0…N, where N is either 15, or the maximum
input ID, whichever is smaller.
Sub-Element Description Data Format User Program
Access
AS - Auto Start binary (bit) read only
Sub-Element Description Data Format User Program
Access
IS - Input Select word (INT) read only
