Rockwell Automation Publication 2080-UM002G-EN-E - March 2015 45

Wire Your Controller Chapter 4

Embedded Serial Port

Wiring

The embedded serial port is a non-isolated RS232/RS485 serial port which is

targeted to be used for short distances (<3 m) to devices such as HMIs.

See Embedded Serial Port Cables

on page7 for a list of cables that can be used

with the embedded serial port 8-pin Mini DIN connector.

For example the 1761-CBL-PM02 cable is typically used to connect the

embedded serial port to PanelView Component HMI using RS232.

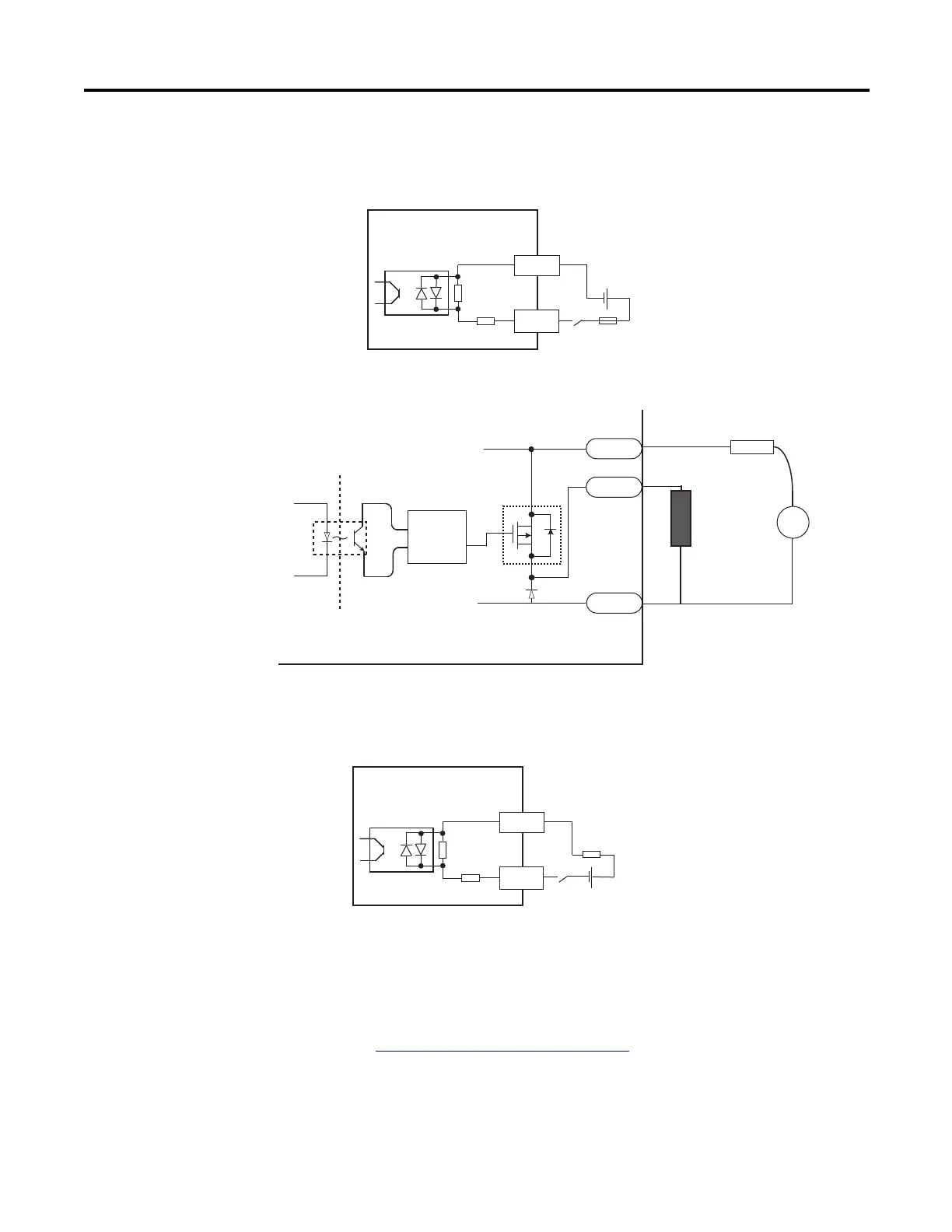

Sink input wiring example

Com

Fuse

24V

I/P

45627

Source output wiring example

Micro800 Source output

DC COM

OUT

+V DC

–

24V supply

Logic side

User side

Load

Fuse

45626

Source input wiring example

Com

Fuse

24V

I/P

45625
