28 Rockwell Automation Publication 2080-UM002G-EN-E - March 2015

Chapter 3 Install Your Controller

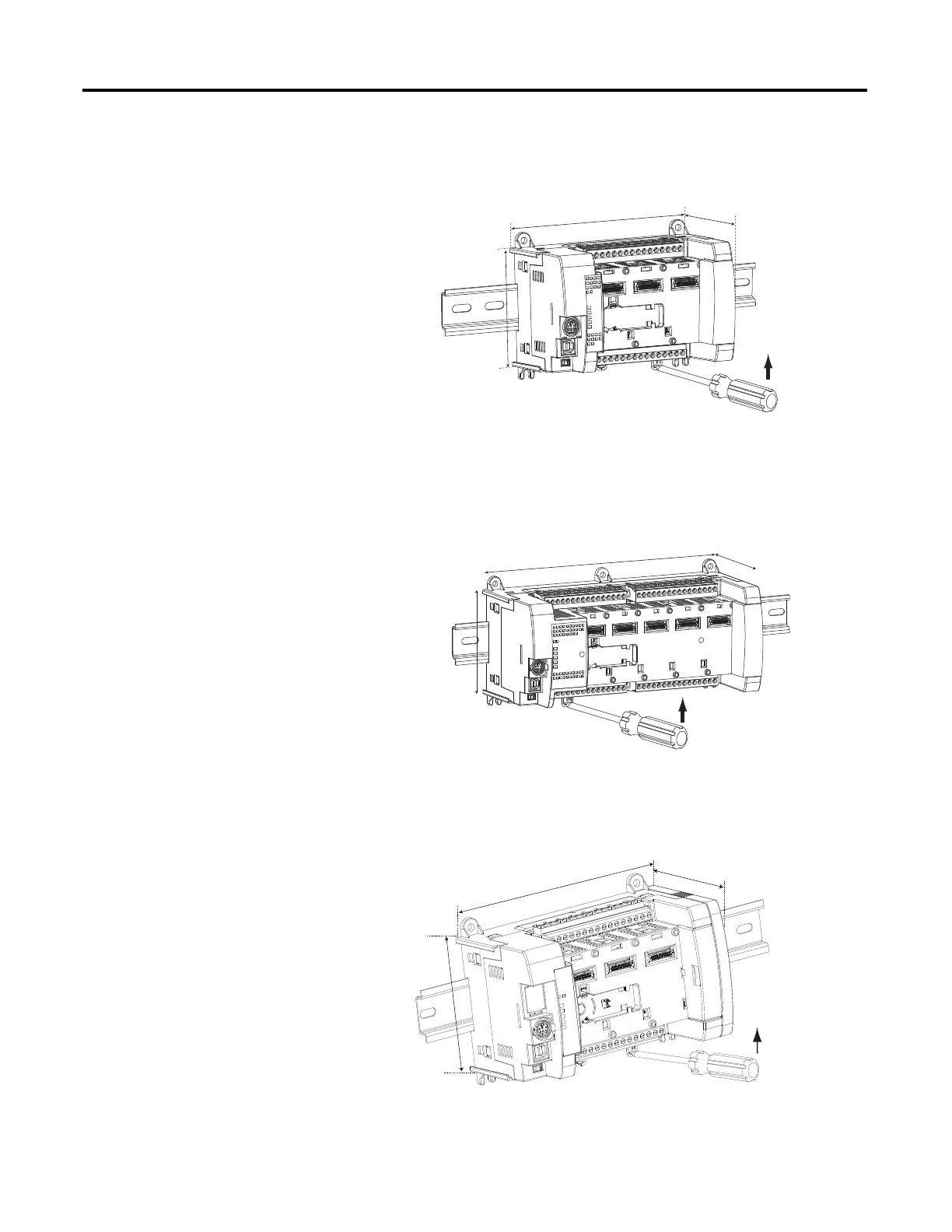

Micro830 24-Point Controllers

2080-LC30-24QWB, 2080-LC30-24QVB, 2080-LC30-24QBB

Micro830 48-Point Controllers

2080-LC30-48AWB, 2080-LC30-48QWB, 2080-LC30-48QVB, 2080-LC30-

48QBB

Micro850 24-Point Controllers

2080-LC50-24AWB, 2080-LC50-24QBB, 2080-LC50-24QVB, 2080-LC50-24QWB

45018

150 (5.91)

80 (3.15)

90 (3.54)

Measurements in millimeters (inches)

45038

210 (8.27)

80 (3.15)

90 (3.54)

Measurements in millimeters (inches)

45912

158 (6.22)

80 (3.15)

90 (3.54)

Measurements in millimeters (inches)
