PowerFlex 755T
Allen-Bradley PowerFlex 755T Installation Instructions
4
of 1
of 1 rating
192 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Rockwell Automation Publication 750-IN10
0B-EN-P - July 2017
97
Mechanica
l and Electric
al Installatio
n
Chapter 4
2.
Ro

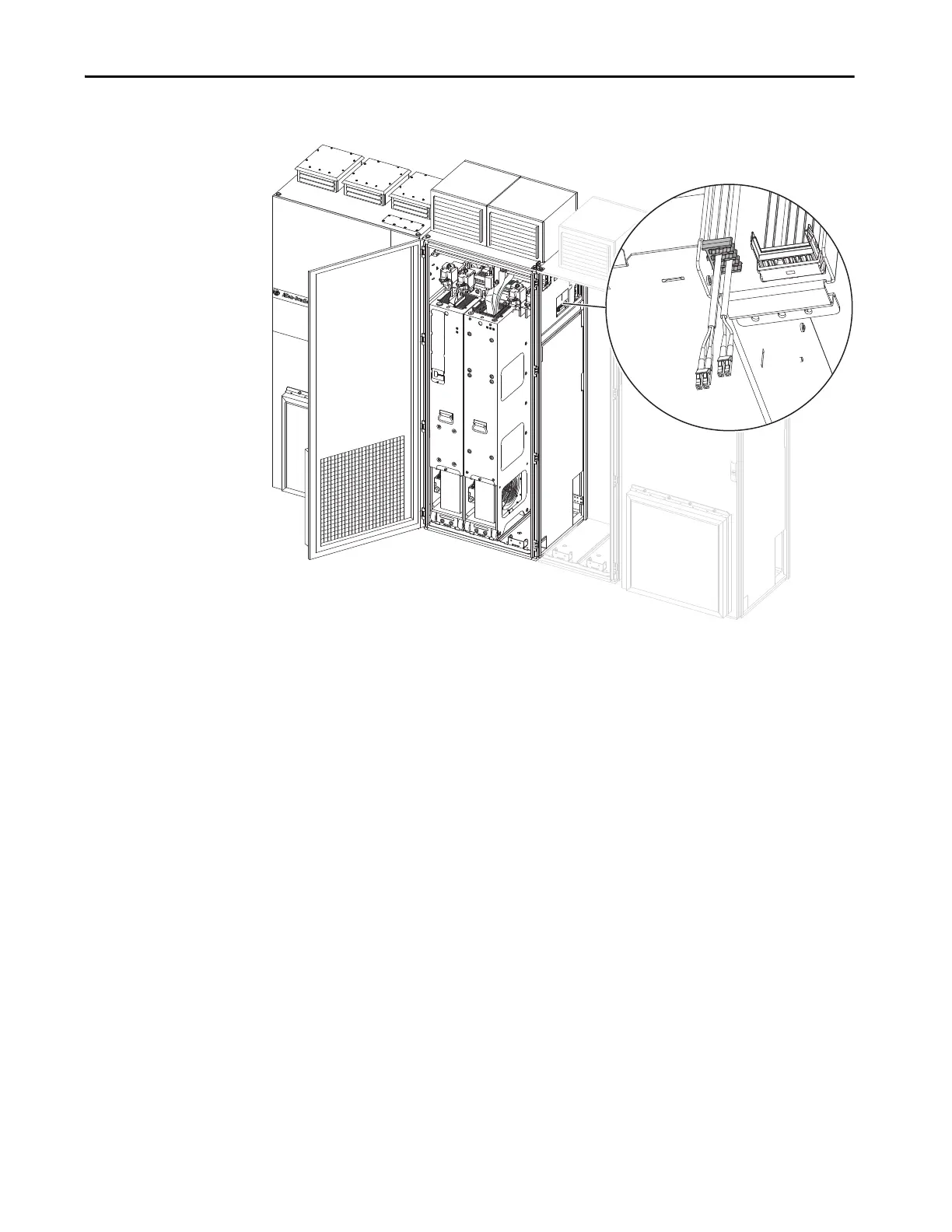

ute the cables through the control power chan
nel cable
g
uides
.
Reverse Angle View
96
98
Table of Contents
Installation
3
Default Chapter
3
Table of Contents
3
Additional Resources
5
Chapter 1 General Precautions
7
Catalog Number Explanation
10
Product Rating Cross-References
13
Commonly Used Tools
16
Hardware Installation Diagrams
17
Fastener Torque Sequences
18
Receiving
19
Chapter 2
20
Shipment Configurations
20
Handling
22
Storage
25
Chapter 3 CE Conformity
27
Location Planning
31
Minimum Clearances
32
Mounting Options
35
Mounting Hardware
39
Default Chapter
39
Approximate Dimensions
39
Frame 11 Drives Top, Front, and Bottom Views
43
Frame 12 Drives Top, Front, and Bottom Views
44
Drives Optional Entry and Exit Wire Bays Top, Front, and Bottom Views
45
Optional Entry Wire Bays Top, Front, and Bottom Views
51
Frame 9 Top, Front, and Bottom Views
53
Frame 10 Top, Front, and Bottom Views
54
Frame 11 Top, Front, and Bottom Views
55
Frame 12 Top, Front, and Bottom Views
56
Recommended Cabinet Mounting Hardware
39
Installation Site Requirements
58
Prepare Enclosures
59
Chapter 4
60
Component Removal Requirements
60
Table of Contents
63
Default Chapter
64
L0 L1
64
L0 L1 L2
64
Line Side Converter
64
Motor Side Inverter
64
Line Side Converter
65
L2 L3
66
Motor Side Inverter
68
Shipping Split Section
68
Remove Protective Guards
70
Remove Power Module
73
Remove LCL Filter Module
79
Place the Enclosures
85
Join Enclosures
87
Affix the Enclosures to the Floor
93
Electrical Interconnections
94
Fiber-Optic Connections
96
Chapter 5 Grounding Requirements
99
Power Cable Types Acceptable for 400
101
Motor Considerations
101
Bus Bar Locations
102
Field Connections
106
Recommended Cable Spacing
110
Fuses and Circuit Breakers
113
Motor Overload Protection
126
Short Circuit Current Rating
126
Input Contactor Precautions
126
Output Contactor Precaution
126
Bypass Contactor Precaution
127
Applying and Removing Power
127
Drive Power Jumper Configuration
127
I/O Wiring
135
Chapter 6 I/O Terminal Blocks
136
I/O Wiring I/O Terminal Blocks
136
Access Control Pod
138
Main Control Board
140
Hardware Enable Circuitry
141
Safety Enable Circuitry
142
Fiber Optic Interface Board
143
Option Module Installation
144
11-Series I/O Module
145
11-Series I/O Wiring Examples
148
22-Series I/O Module
154
22-Series I/O Wiring Examples
157
Safe Torque off Option Module
161
Safe Speed Monitor Option Module
163
Integrated Safety - Safe Torque off Option Module
165
Devicenet Option Module
166
Controlnet Option Module
167
Dual-Port Ethernet/Ip Option Module
168
Profibus Option Module
169
Bacnet/Ip Option Module
170
Single Incremental Encoder Option Module
171
Dual Incremental Encoder Option Module
173
Universal Feedback Option Module
177
Motor Power Cables
180
Feedback Device Resolution
180
Motor Feedback Wiring Examples
180
Rockwell Automation Publication 750-IN100B-EN-P - July
181
Other manuals for Allen-Bradley PowerFlex 755T
User Manual
192 pages
Product Information, Original Instructions
48 pages
4
Based on 1 rating
Ask a question
Give review
