138 Rockwell Automation Publication 750-IN100B-EN-P - July 2017
Chapter 6 I/O Wiring
Access Control Pod
The control pod is located in the input bay of 755TL and 755TR drives and
the control bay of a common bus inverter, if equipped.

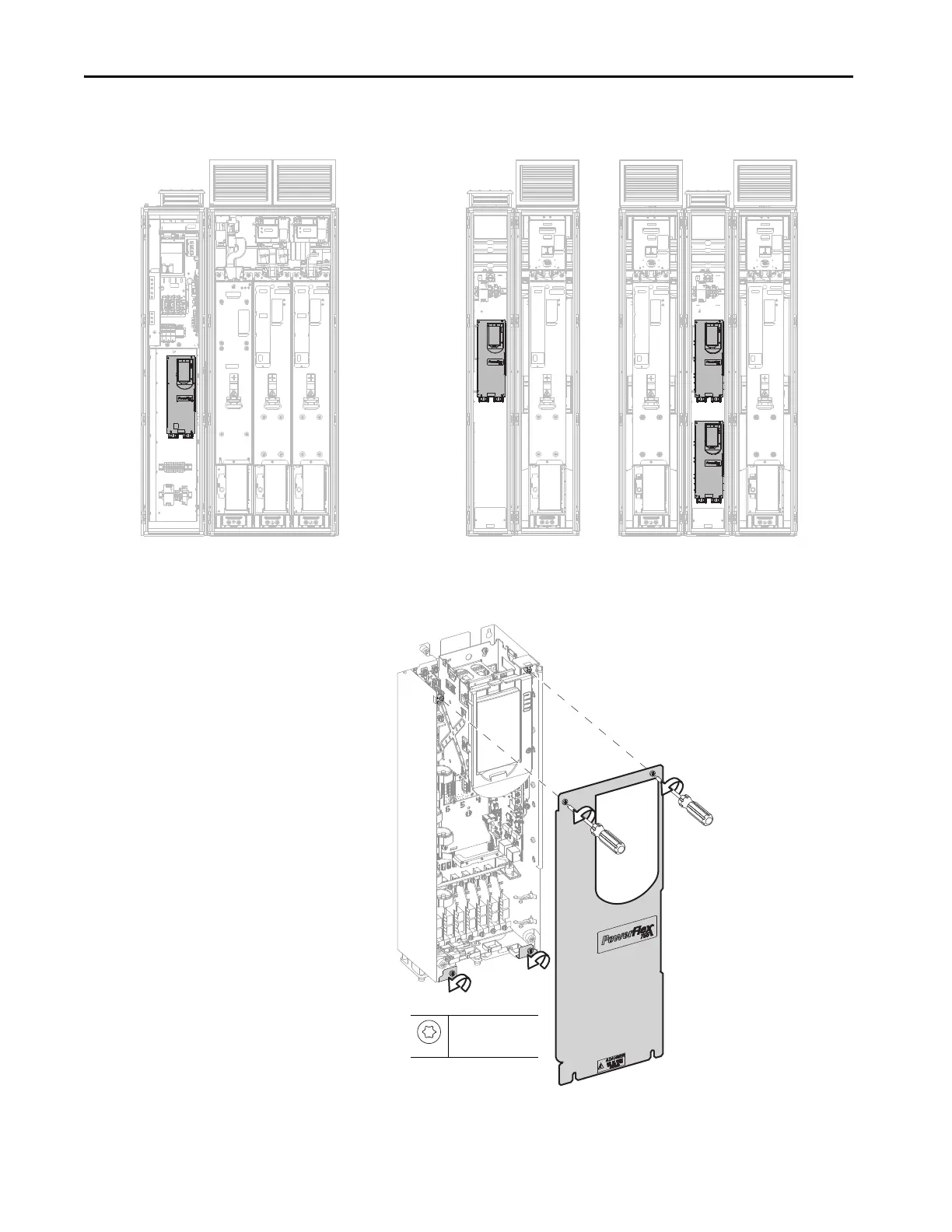

1. Remove the control pod front cover.
Remove top screws.
Loosen bottom screws.
Input Bay
755TL and 755TR Drives and 755TM Bus Supplies
Control Bay
755TM Common Bus Inverters
M4 x 8 mm
T25
2.6 N•m (23 lb•in)
