Control Identification

Select Cycle Pads

SELECT CYCLE pads are used to select the specific washer cy-

cle. These pads include NORMAL, PERM PRESS, and DELI-

CATES. These pads allow the user to select a cycle other than the

default cycle (LIGHT NORMAL COLD). The SELECT CYCLE

keypads are not active after the first fill has been completed. The

selected cycle is indicated by the light (LED) on the pad. Pressing

the flashing START pad will confirm the selection and the cycle

will begin.

Select Wash Temp Pads

SELECT WASH TEMP pads are used to select the temperature

of the water used for the wash fill. These pads include HOT,

WARM, and COLD. These pads allow the user to select a water

temperature other than the default setting (COLD).

NOTE: Cycles are picked by selecting a Soil, Cycle and

Temp pad.

Select Cycle Modifier Pads

The Cycle Modifier pad is used to select cycle modifier options.

The LIGHT option is the default and indicates no cycle modifiers

are active. The MEDIUM and HEAVY options can be program-

med to offer extra features for an added vend price.

TLW25C_SVG1

Soil

Cycle

Temp

MEDIUM

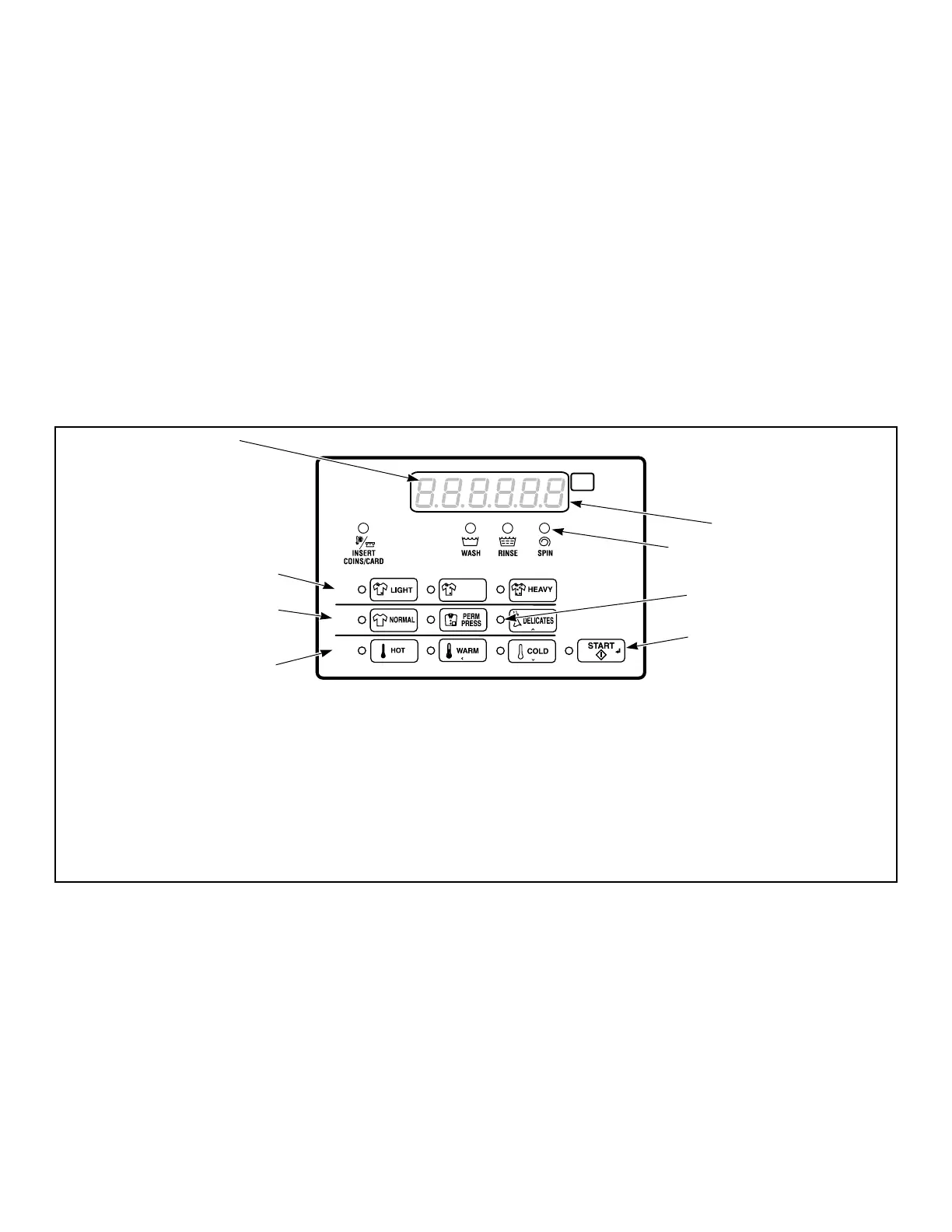

1. SELECT WASH TEMP pads

2. SELECT CYCLE pads

3. SELECT Cycle Modifier pads

4. Six 7-Segment Digits

5. Display

6. LED Status Lights

7. LED Light

8. START pad

Figure 1

Control Identification
