Opening the Service Door
Coin Models
Models through Serial No. 1810000001
Manual programming requires the user to open and close the
service door. Opening and closing the service door trips a switch
allowing access to various programming options, diagnostics, and
audit capabilities. On coin models, the coin vault switch must be
closed to enter Manual Mode.
Models starting Serial No. 1810000001
Manual programming requires the user to unplug the bullet con-
nector located between the “white/black” and “red/blue” wires.
Reconnect the connector for normal operation.
After opening and closing the service door or unplugging the bul-
let connector, the programmer has 4.25 minutes to begin pro-
gramming.
The service door is located on the top of the meter case. Refer to
Figure 2 .
Card Reader Models
Manual programming requires the user to remove the control
panel and unplug the bullet connector located between the
“white/black” and “red/blue” wires. This will allow the user to
access various programming options, diagnostics, and audit capa-
bilities. Refer to Figure 2 .

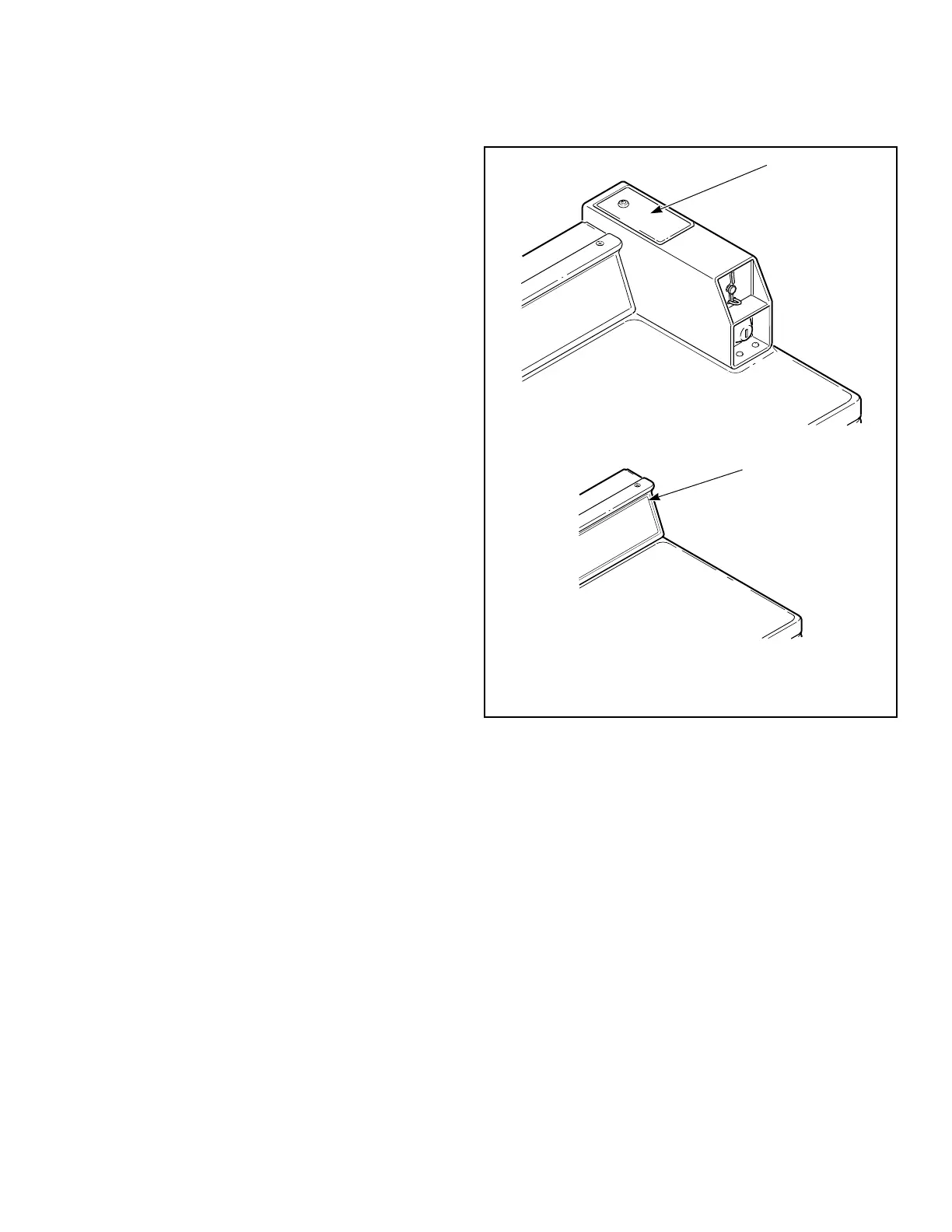

1. Service Door
2. Control Panel
Figure 2
Opening the Service Door
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. 204370ENR1
