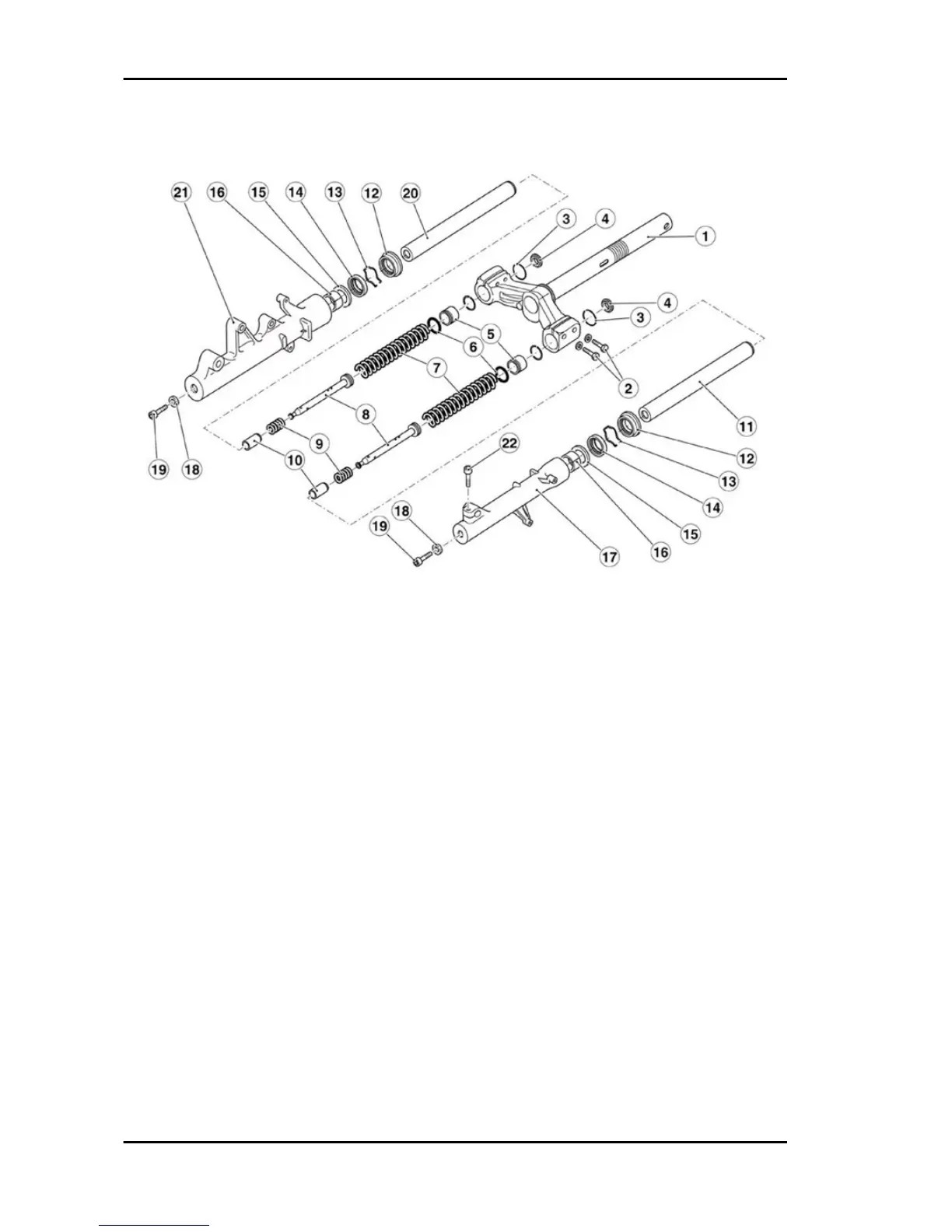

Front fork
KEY:
1. Fork base
2. Fork clamp screws
3. Snap ring
4. Rubber cap
5. Sealing cap
6. O-Ring
7. Spring
8. Pumping member
9. Counter spring
10. End stop buffer
11. Left stem
12. Dust guard gasket
13. Safety circlip
14. Sealing gasket
15. Cap
16. Bushing
17. Left wheel holder
18. Sealing washer
19. Lower screw
Suspensions ATLANTIC 300 i.e.
SUSP - 198
