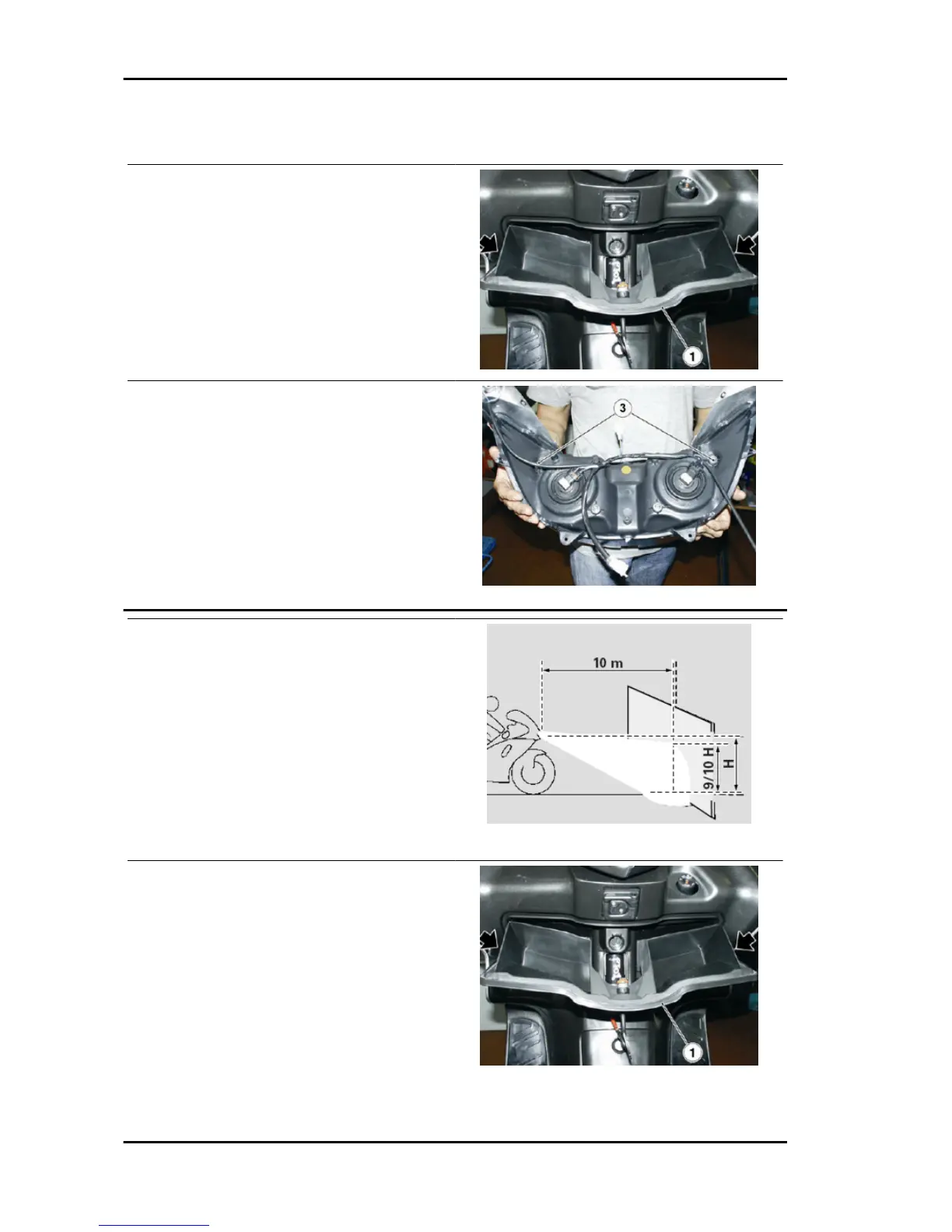

Headlight adjustment
LIGHT BEAM HORIZONTAL ADJUSTMENT
To adjust the light beam:
•
Open the glove-box «1» and release
the end of stroke side rods by pressing
them down moderately.
•
Use a screwdriver to operate on the
upper set screws «3» on both head-
lights:
TIGHTEN the screw (clockwise) to move the light
beam to the right (in relation to the riding direction).
UNDO the screw (anticlockwise) to move the light
beam to the left (in relation to the riding direction).
LIGHT BEAM VERTICAL ADJUSTMENT
For a quick check of the correct direction of the
front light beams, place the scooter ten metres
from a vertical wall and make sure the ground is
level.
Turn on the low-beam light, sit on the vehicle and
check that the light beam projected to the wall is a
little below the headlight horizontal straight line
(about 9/10 of the total height).
To adjust the light beam:
•
Open the glove-box «1» and release
the end of stroke side rods by pressing
them down moderately.
Maintenance ATLANTIC 300 i.e.
MAIN - 56
