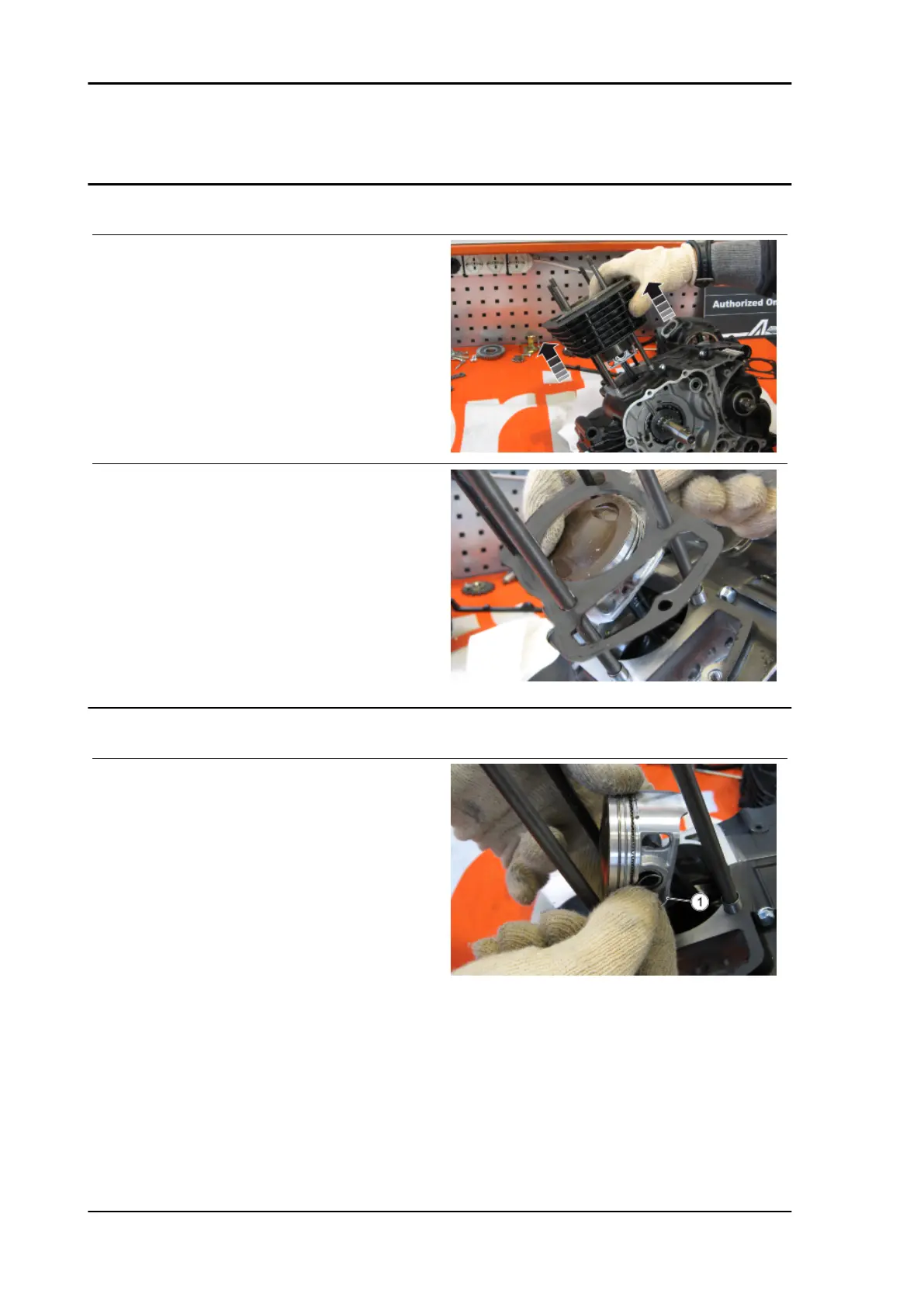

Cylinder-piston assembly
Removing the cylinder
•
Remove the complete cylinder head
gasket, the timing chain and the sliders
•
Remove the cylinder
•
Remove the gasket
Disassembling the piston
•
Remove the retainer ring (1)
Engine
ETX - STX 150
ENG - 104
103
105
Table of Contents
