Tighten the nut (2), until the adjuster is
locked in place (3).
•
Check the clearance at the extremity of
the clutch lever.
•
Reposition the protective casing (1).
•
If the adjuster (3) is completely
screwed in, completely unscrewed,
and/or it is not possible to obtain the
correct clearance:
•
Slide the protective casing (1) out.
Completely screw in the nut (2) on the
adjuster (3).
•
Completely tighten the adjuster (3).

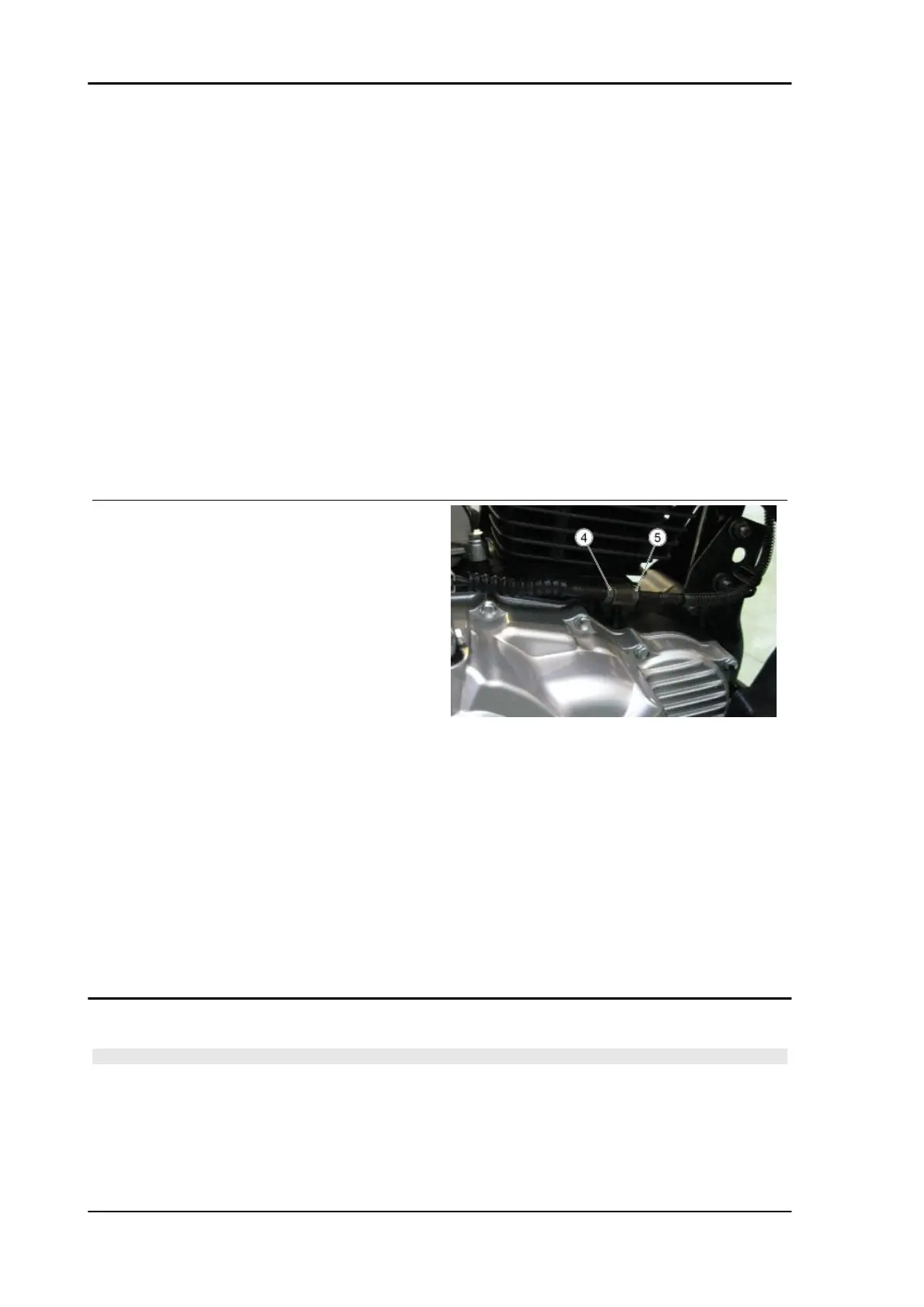

Operating from the right vehicle side:
•
Loosen the nut (4)
•
Turn the adjuster (5) until the clearance
at the extreme end of the clutch lever
is between 10 - 20 mm (0,39 - 0,79 in)
•
Tighten the nut (4), until the adjuster is
locked in place (5).
•
Check the clearance at the extremity of
the clutch lever.
•
Start the engine.
•
Completely activate the clutch, and in-
sert first gear.
•
Make sure that the engine does not
stop and that the vehicle does not
move forward, and that the friction
does not "slide" during acceleration or
during driving.
Headlight adjustment
NOTE
IN COMPLIANCE WITH LOCAL LEGISLATION, SPECIFIC PROCEDURES MUST BE FOLLOWED
WHEN ALIGNING THE LIGHTS.
Maintenance ETX - STX 150
MAIN - 38
