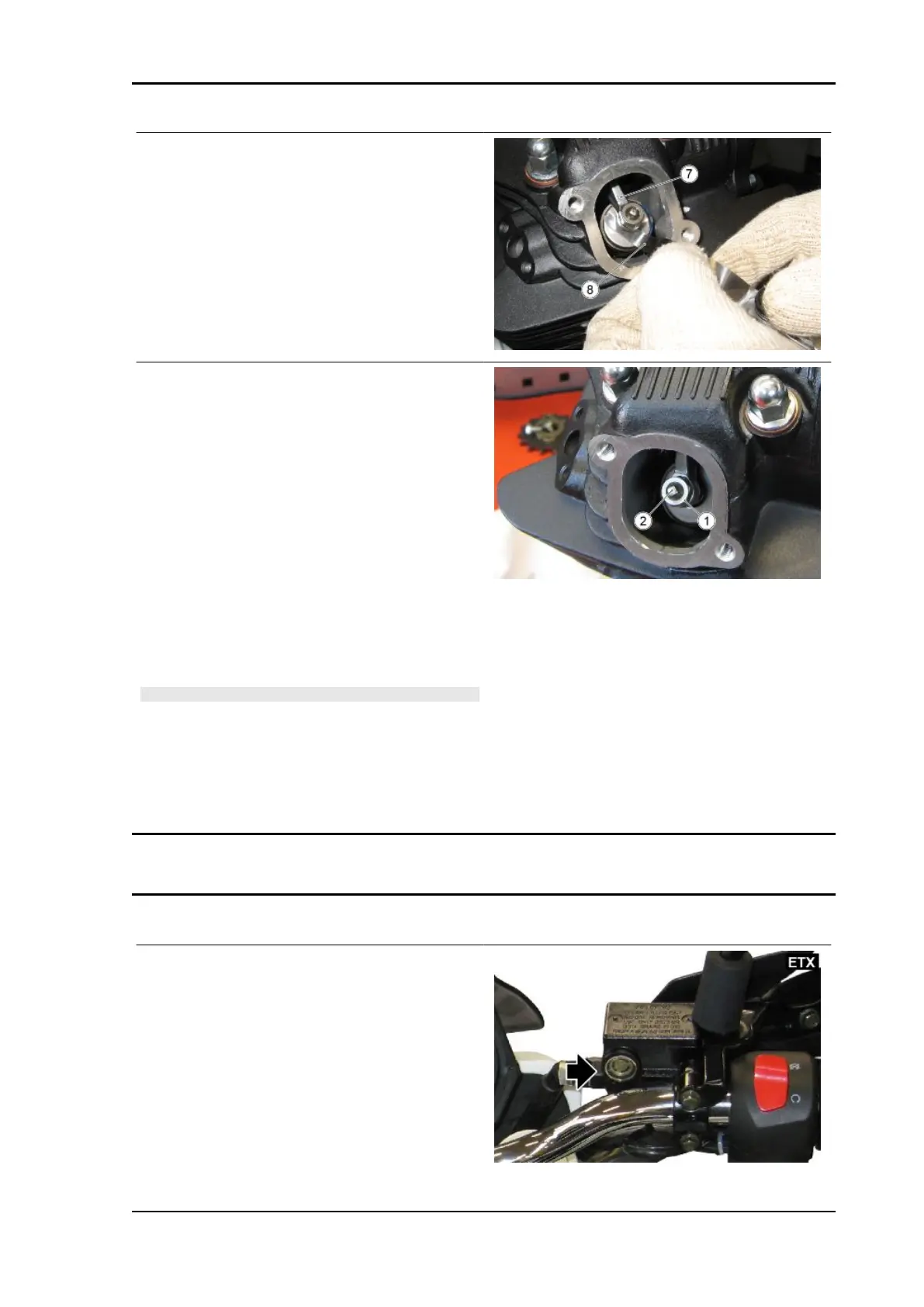

Check that the tappets (7) have clear-
ance and with a suitable feeler gauge
(8) check that the clearance is within
the limit values.
VALVE CLEARANCE ADJUSTMENT
•
Loosen the nut (1).
•
Turn the adjuster (2) until obtaining the
following clearance:
Technical specifications
Values valid with control clearance between
rockers and valve
Inlet valve: 0.15 mm (0.0059 in)
Exhaust valve: 0.20 mm (0.0079 in)
•
The measurement must be taken using
a special thickness gauge.
CAUTION
IF CLEARANCE IS LARGER THAN RECOMMENDED, THE
TAPPETS WILL BE NOISY. OTHERWISE, THE VALVES DO
NOT CLOSE CORRECTLY, WHICH CAN LEAD TO PROB-
LEMS SUCH AS:
•
PRESSURE DROP;
•
ENGINE OVERHEAT;
•
VALVE BURN OUT, ETC.
Braking system
Level check
Frequently check the brake fluid tank level,
through the inspection points on the right side of
the handlebar corresponding to the sight glass in
the model ETX or the reference notches in the
model STX.
The brake fluid level must be half of the inspection
sight glass in the model ETX and within the refer-
ence notch MIN and MAX in the model STX if the
tanks are parallel to the ground.
ETX - STX 150 Maintenance
MAIN - 35
