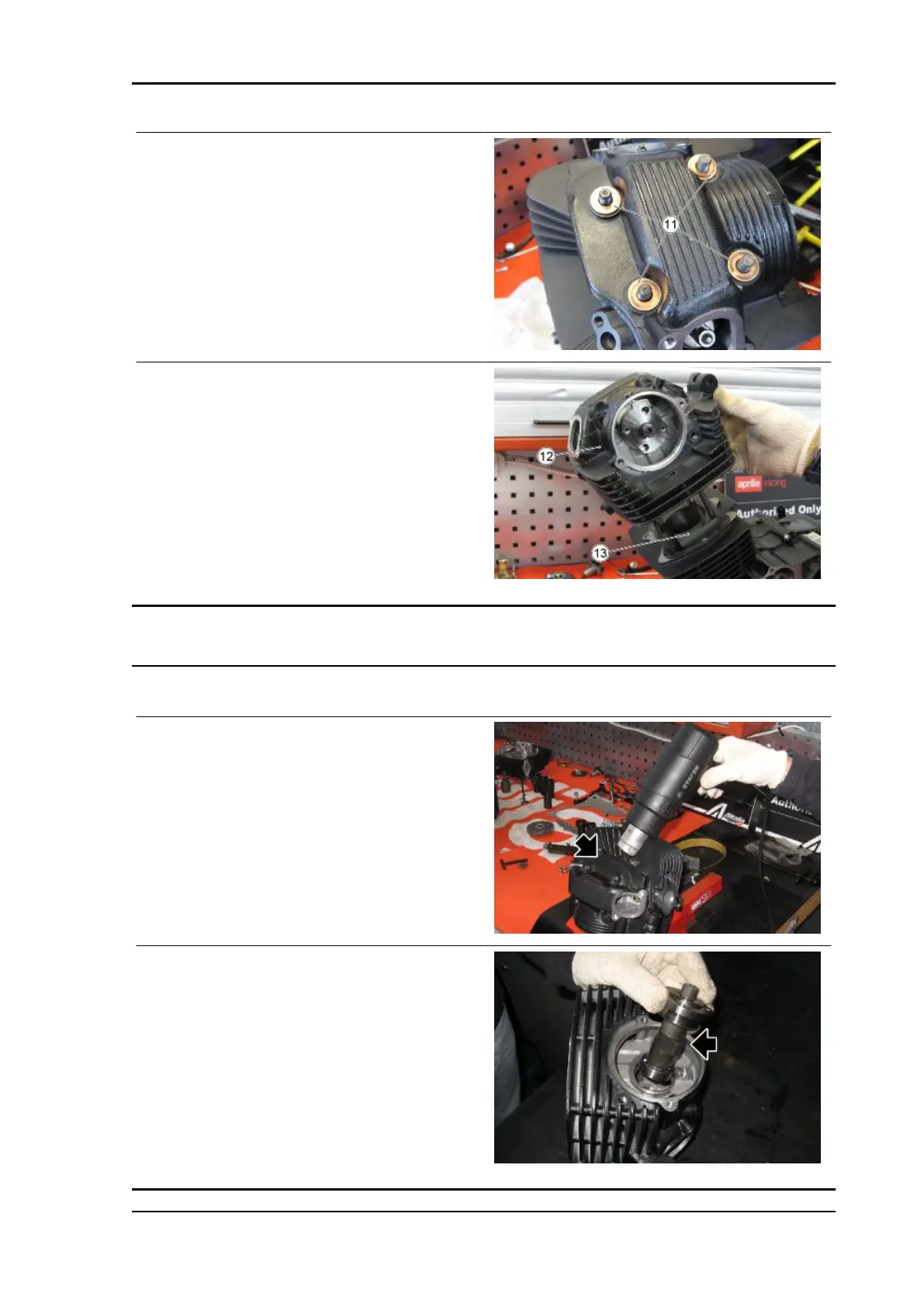

Remove the four washers (11)
•
Remove the complete cylinder head
(12) and collect the seal (13)
Cylinder head
Removing the overhead camshaft
•
Remove the cylinder head and the
rockers
•
Warm up the corresponding cylinder
head of the camshaft bearing to facili-
tate the removal.
•
Take out the camshaft complete with
the bearing.
ETX - STX 150
Engine
ENG - 93
92
94
Table of Contents
The Value of Service
2
Index of Topics
5
Safety Rules
7
Maintenance Rules
8
Dimensions and Weight
11
Back Side
16
Index of Topics
23
Special Tools
23
Maintenance
25
Maintenance Chart
26
Spark Plug
28
Engine Oil
29
Fuel Filter
31
Air Filter Housing
32
Air Filter Removal
33
Checking the Valve Clearance
33
Valve Clearance Check
33
Valve Clearance Adjustment
35
Braking System
35
Level Check
35
Recommended Products
36
Clutch System
37
Adjusting the Lever
37
Headlight Adjustment
38
Index of Topics
40
Electrical System
40
Electrical System Installation
41
Front Side
43
General Wiring Diagram
50
Index of Topics
53
Engine from Vehicle
53
Removing the Engine from the Vehicle
54
Gear Selector
68
Starter Motor
71
Removing the Starter Motor
72
Generator Side
73
Specific Tooling
76
Removing the Stator
77
Disassembling the Clutch
85
Checking the Clutch Plates
88
Checking the Clutch Housing
88
Primary Driven Gear Check
88
Removing the Intake Manifold
89
Removing the Cylinder Head
89
Cylinder Head
93
Removing the Valves
95
Checking the Rocker Arms
97
Chain Removal
99
Checking the Chain
101
Checking the Sliders
101
Cam Timing
101
Removing the Cylinder
104
Disassembling the Piston
104
Checking the Cylinder
105
Checking the Piston
105
Piston Rings
106
Installing the Cylinder
107
Crankcase - Crankshaft
107
Removing the Crankshaft
109
Removing the Countershaft
109
Oil Pump
110
Index of Topics
115
Removing the Front Wheel
116
Front Fork
120
Removing the Fork Legs
120
Disassembling the Fork
122
Checking the Components
126
Filling Oil
126
Removing the Rear Wheel
127
Shock Absorbers
128
Index of Topics
130
Front Brake Calliper
131
Rear Brake Disc
131
Front Brake Disc
132
Front Brake Pads
133
Rear Drum Brake
136
Engine Guard
143
Windshield Removal
145
Removing the Instrument Panel
147
High Beam Light
151
Turn Indicators
153
Side Body Panels
156
Tank Removal
161
Front Mudguard Removal
163
Lower Mudguard Removal
164
Battery Removal
165
