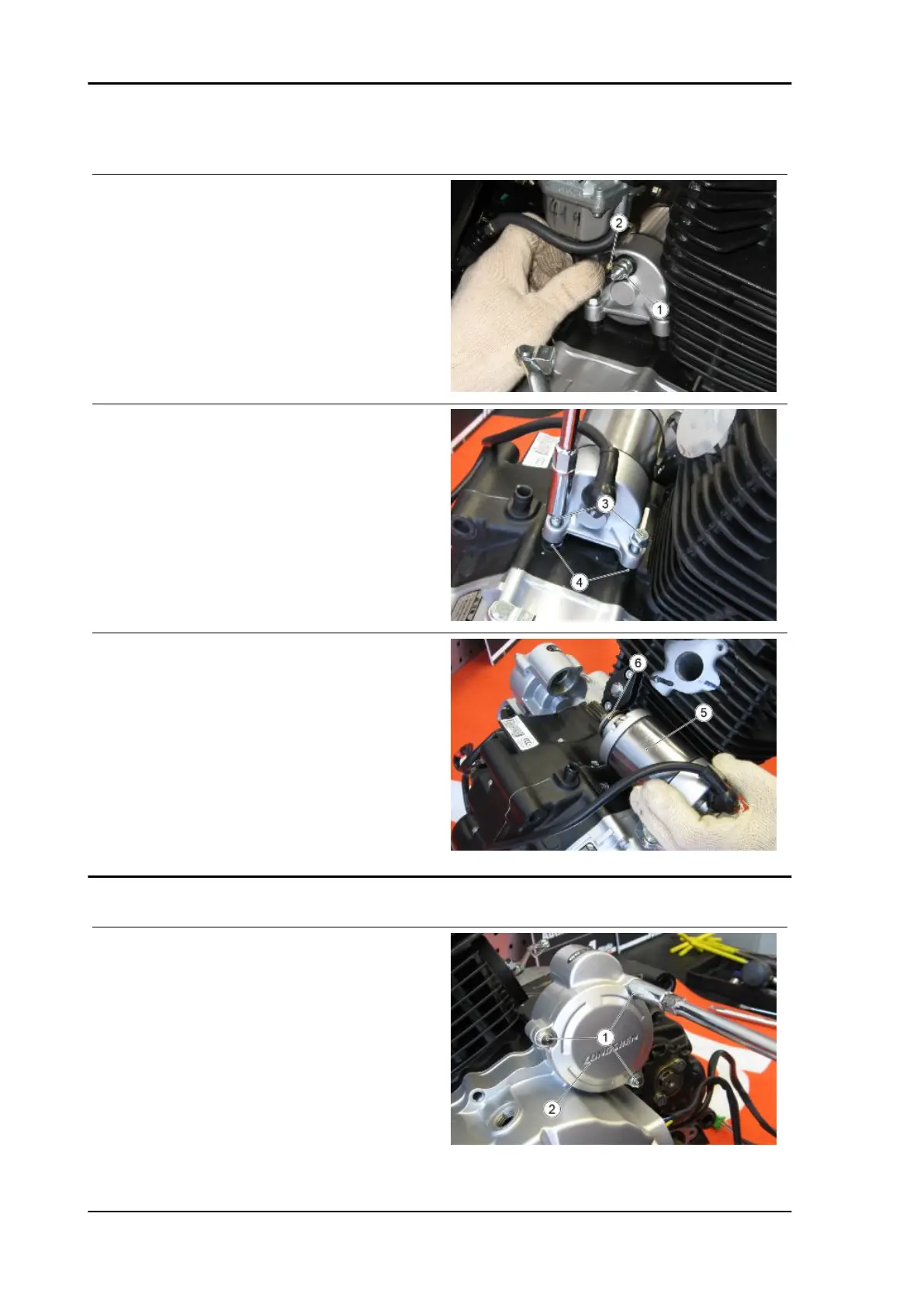

Removing the starter motor
The removal and installation of the starter motor
can be carried out even if the motor is installed on
the frame:
•
Remove the locking nut (1) of the sup-
ply cable (2)
•
Remove the two fixing screws (3),
making sure to collect the rubber
spacer washers (4)
•
Remove the starter motor (5) and if
necessary replace the sealing gasket
(6)
Removing the idle gear
•
Remove the three fixing screws (1) of
the intermediate gear cover (2)
Engine
ETX - STX 150
ENG - 72
71
73
