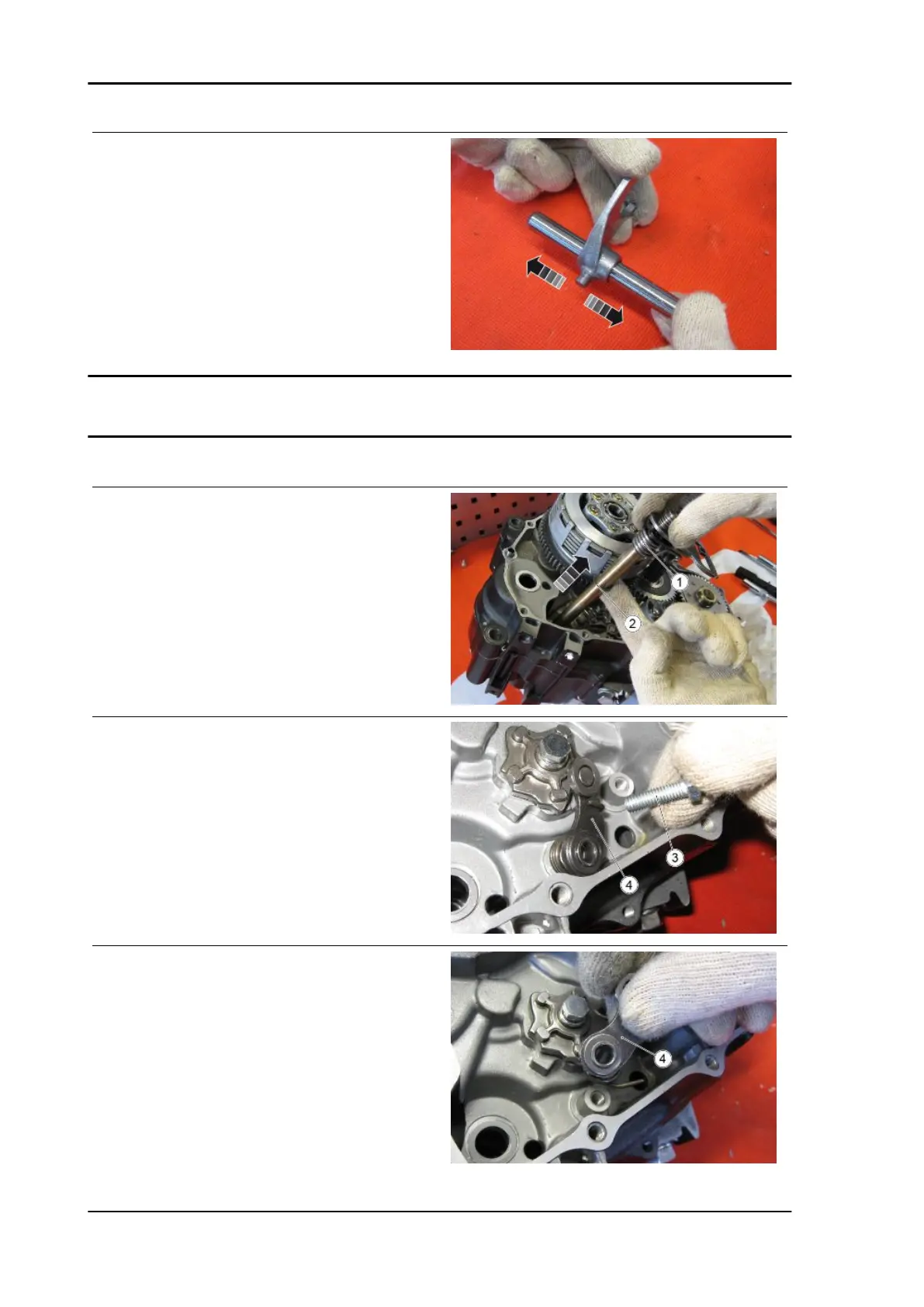

Check the transmission fork movement and if it is
not regular, replace the transmission forks.
Gear selector
Removing the gear selector
•
Drain the engine oil
•
Remove the clutch cover
•
Remove the complete selector shaft
(1), making sure to collect the washer
(2)
•
Remove the fixing screw (3) of the
complete index lever (4)
•
Remove the complete index lever (4)
Engine
ETX - STX 150
ENG - 68
67
69
