• When the lower hinges are being replaced, product should not be fully laid down to
avoid oil leakage to the system; it should be tilted to a 40-45° on average and the lower
hinge procedures should be performed in this position.
• Remove 2 pcs of M 5x20 spiral screws by attaching a torque bit to the chargeable gun.
12.22. Door puller mechanism with stopper
Service numbers used:
1755 left mechanism
1756 right mechanism
1 2
3
• It is found at the lower covers of the fresh food and freezer doors.

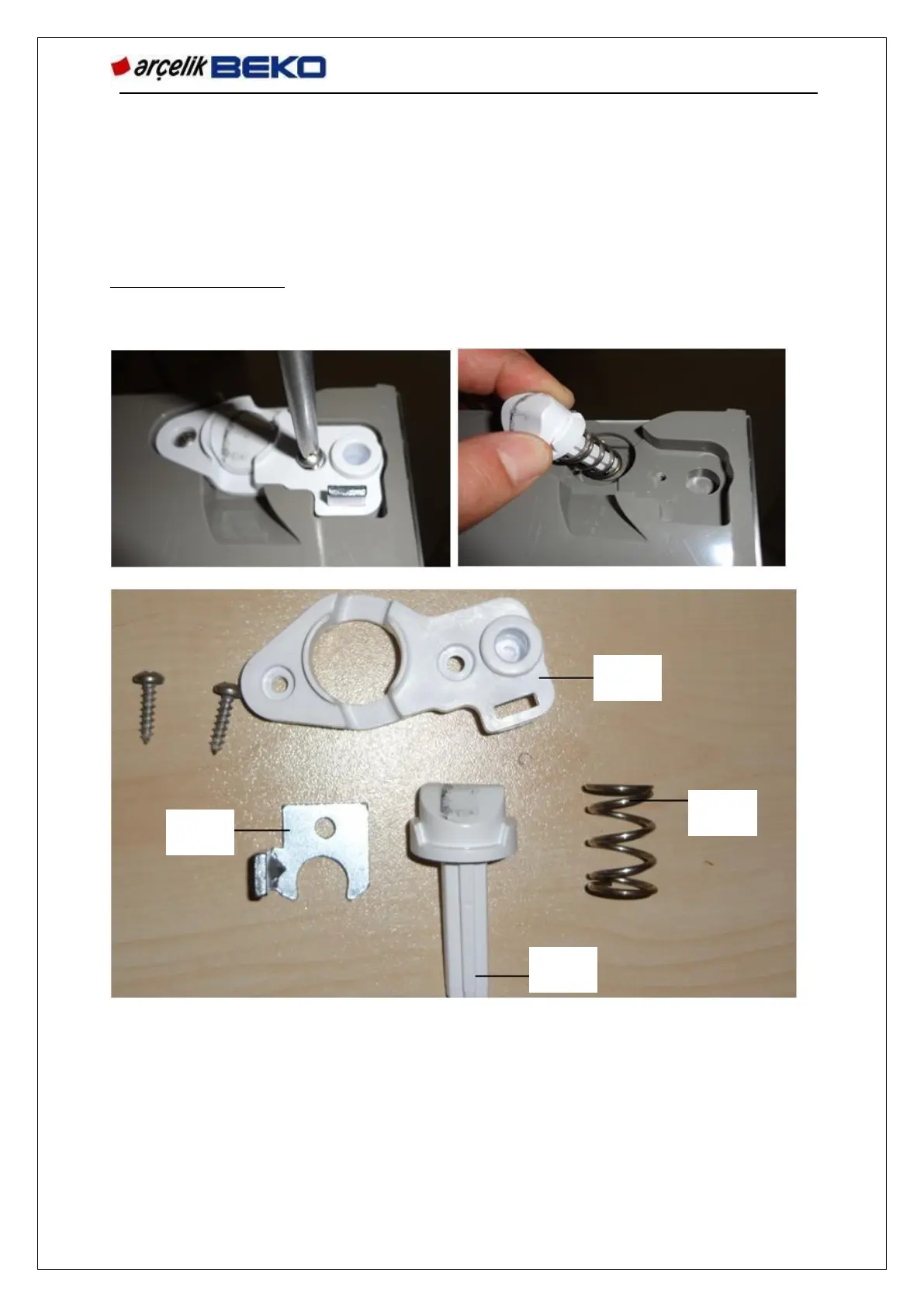

• Remove 2 pcs of 4x13 inox magnetic screws by attaching the star bit to the chargeable
gun, as shown in Picture 1.
• Remove the parts shown in Pictures 2 and 3.
