Aerosol Photometer - 2i 51
Accepting the Result
Once the instrument has set its reference to the
upstream aerosol, the calculated concentration will be
displayed as well as an estimate of the aerosol
stability.

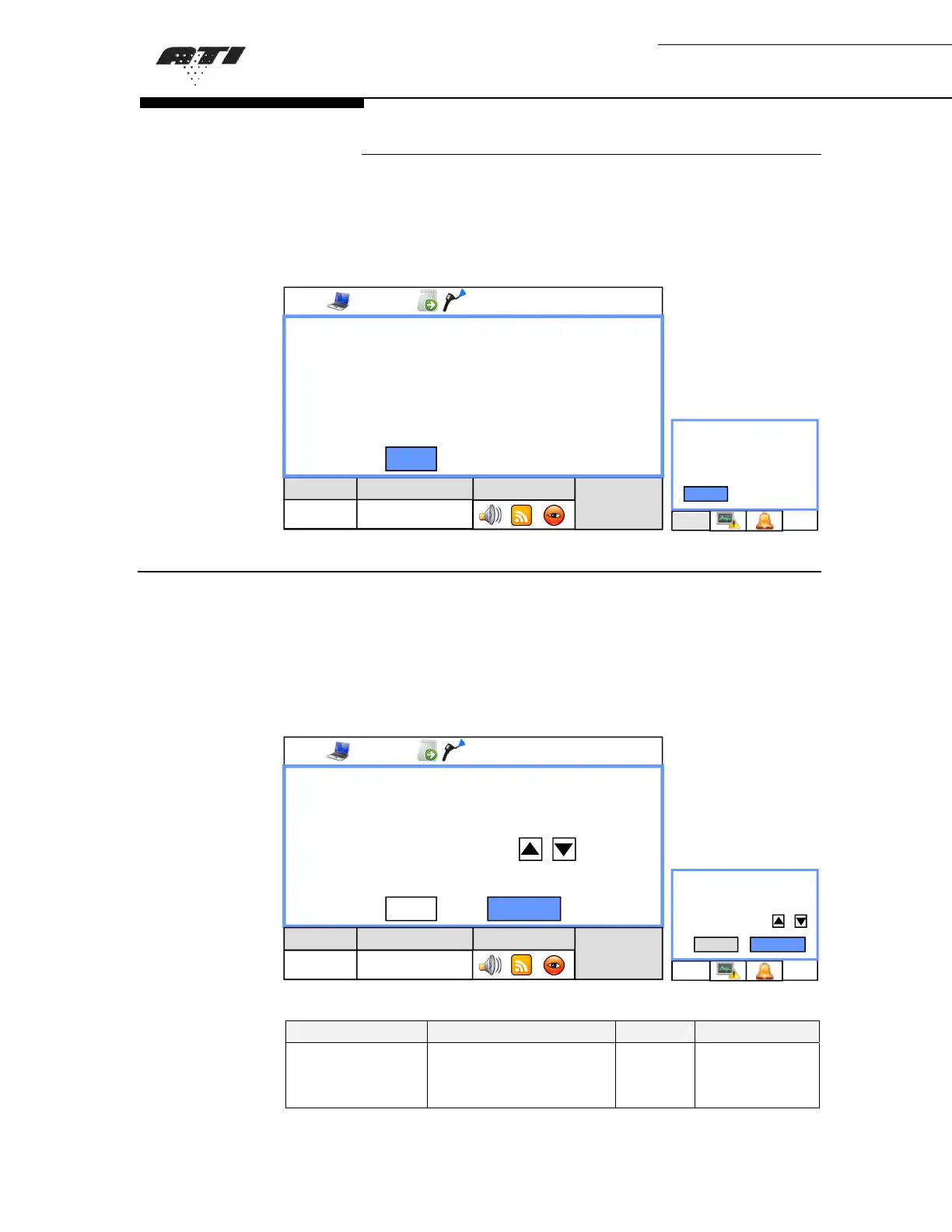

Figure 18: Set 100% to Upstream Concentration Final Screenshot
Set Internal Reference
Establishes the internal reference base response
based upon a gain setting stored during factory
calibration. When changing reagents be sure to re-
zero the instrument.
Figure 19: Set Internal Reference Screenshot
Table 9: Internal Reference Set Point
Parameter Function Icon Limits
Internal
Reference Set
Point
.
N/A
5 to 120
Increment of
1
Set 100% to Upstream Concentration
The 100% concentration is: 2 g/L
WARNING
Upstream aerosol concentration too low
16 Feb 2012 09:59
Back
Reagent
Alarm Set Point
Alarms
PAO 0.001
Sampling
PAO
Set 100% Upstream
WARNING
Concentration < 5g/L
Back
Set Internal Reference
Verify your reagent selection
100 g/L
16 Feb 2012 09:59
Back Proceed
Reagent
Alarm Set Point
Alarms
PAO 0.001
Sampling
PAO
Set Internal Reference
100 g/L
Proceed Back
