11.88
Installing auxiliary shaft drive
•
Set crankshaft mark against mark on auxiliary
shaft.
e Caution:
Perform the work in accordance with the adjustment
specification
a See Installing cylinder head.
•
Lock clutch housing with retaining device,
BMW No. 11 5 640.
•

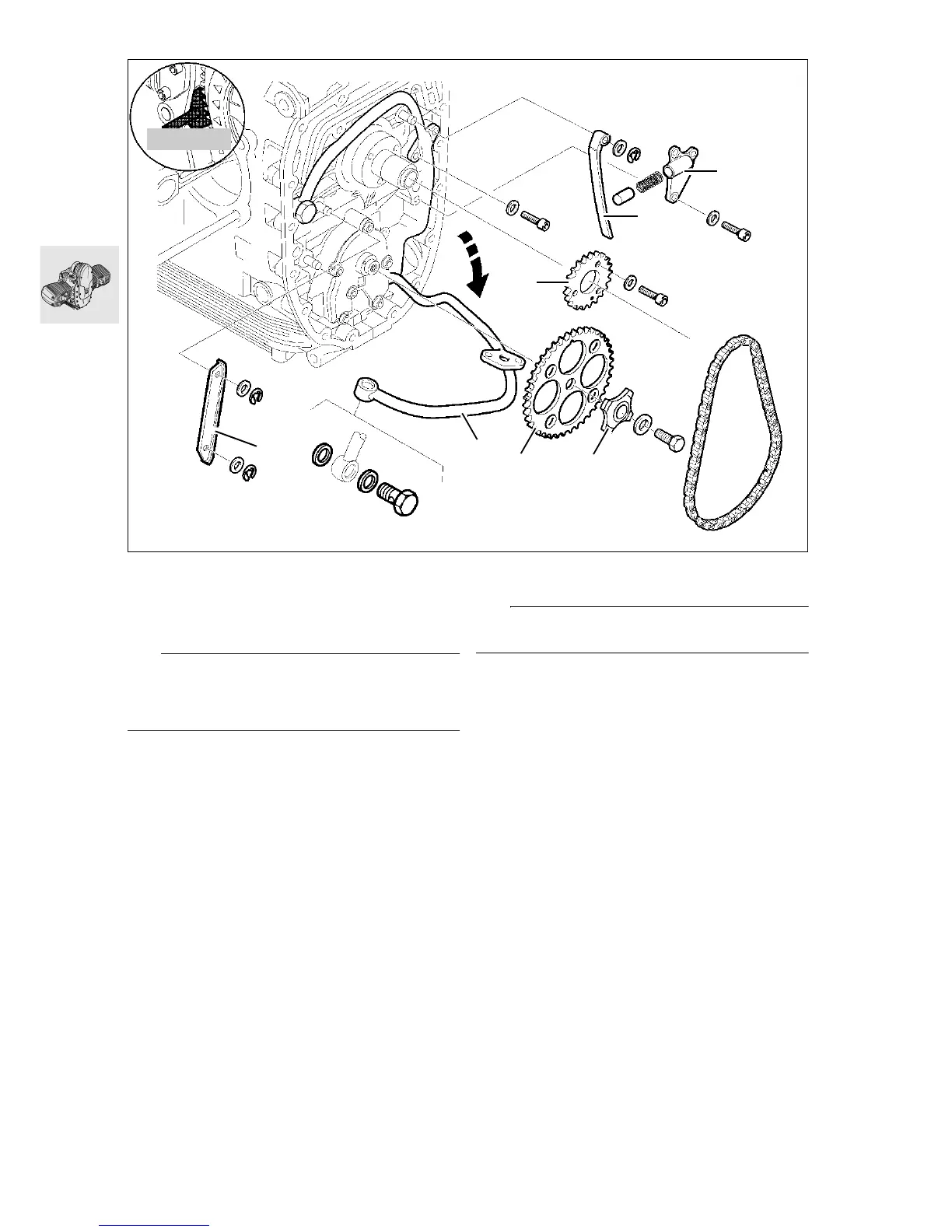

Install chain sprocket (1).
X Tightening torque:
M 6 screw .................................................... 10 Nm
•
Install drive-shaft chain with chainwheel (2) and
rotor (3).
X Tightening torque:
Retaining screw at chainwheel ..................... 70 Nm
•
Install/secure chain guide rail (4).
•
Install/secure chain tensioner rail (5).
•
Install chain tensioner housing (6) with piston and
spring.
X Tightening torque:
M 6 screw ...................................................... 9 Nm
•
Tighten down cooling oil line (7).
e Caution:
Use a new sealing ring.
X Tightening torque:
M 6 screw .................................................... 10 Nm
Banjo screw for cooling oil line..................... 25 Nm
Banjo screw for cooling oil line
with oil vent valve ......................................... 25 Nm
1
2
4
5
6
7
11 5 640
3
RS110250
