32.13
With wire cable distribution block
•
Remove cable cover (1) at fitting/disconnect the
cable.
•
Remove the choke lever/disconnect the cable.
•
Remove the wire cable adjusting screws (2) at
the right and left throttle stub pipes.
•
Press in retaining spring (3) and disconnect the
cables.
•

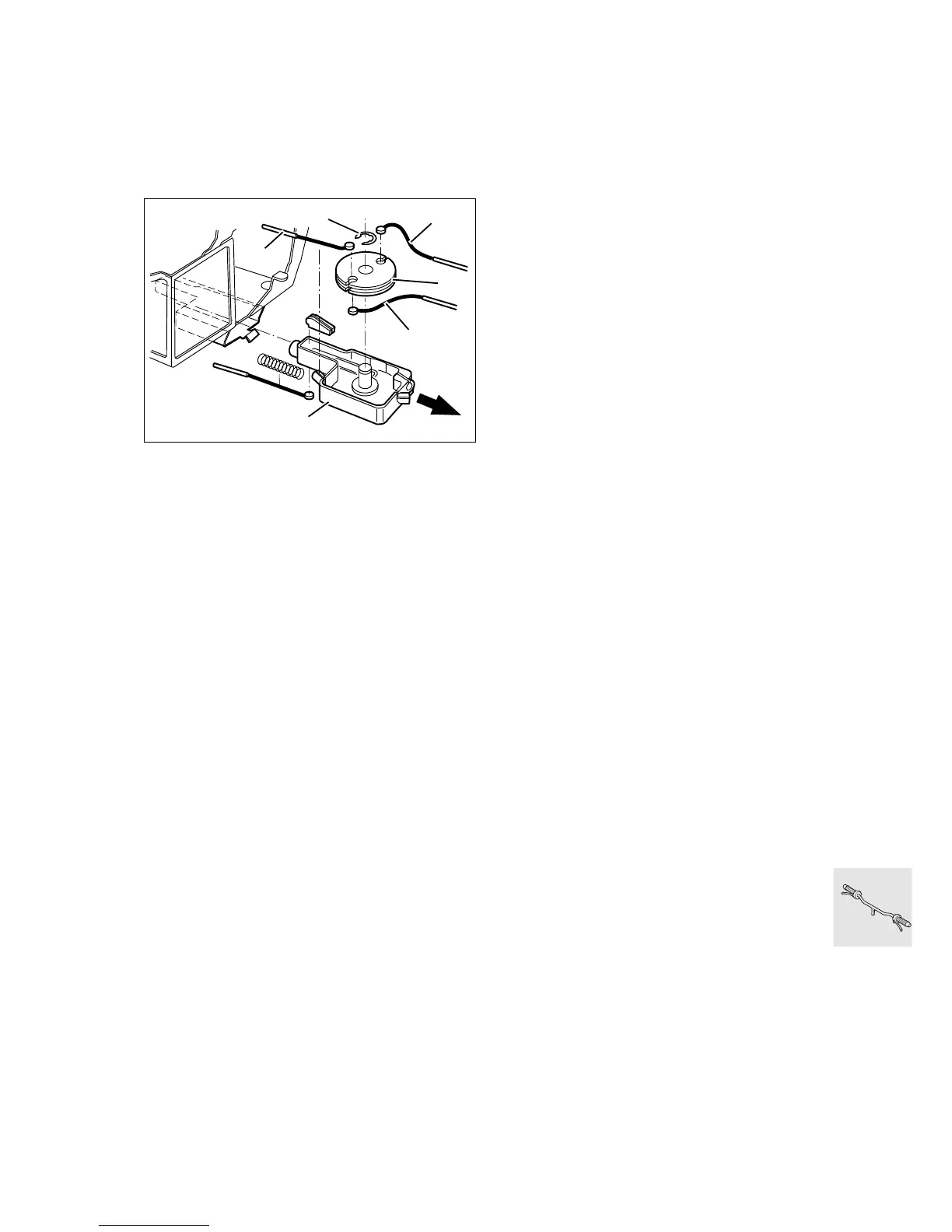

Pull out the cable distribution block (6) in the di-
rection of the arrow.
•
Release the keeper (7) and remove the distribut-
ing disk (8).
•
Disconnect cables (9), (10) and (11).
•
Install in the reverse order of work.
•
Adjust the wire cables.
a See Group 00
8
7
6
9
10
11
RT320130
