33.21

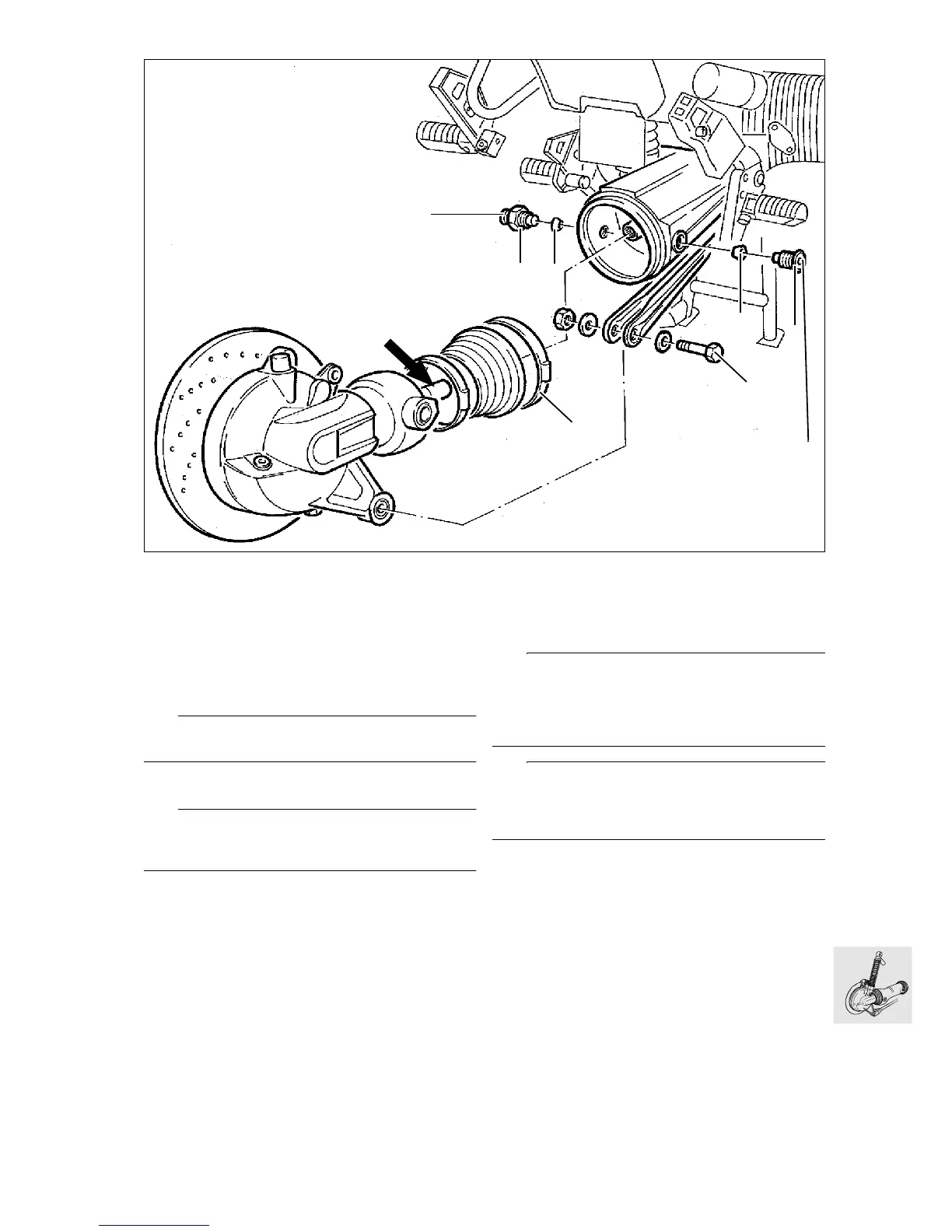

Installing rear wheel drive
•
Coat splines at sliding element (arrow) with
Staburags NBU 30 PTM.
•
Apply a small amount of grease to the inner race
(1, 2) of the left needle roller bearing and install it.
•
Install rear wheel drive with gaiter; insert sliding
section into drive shaft.
e Caution:
Support the rear wheel drive.
•
Screw in fixed bearing journal (3) using Loctite.
e Caution:
The inner race must never press against the ends of
the needles.
•
Apply Loctite to the entire length of the thread
on free bearing pin (4), and screw it in.
•
Tighten fixed bearing of swinging arm.
X Tightening torque:
Fixed bearing journal
(thread cleaned + Loctite 2701).................. 150 Nm
e Caution:
When threaded connections are made with the aid
of Loctite 2701, they must be tightened to their final
torque without delay.
The Loctite hardening time is at least 3 hours.
L Note:
Use an acetone-based cleaning agent, e.g.
Loctite Rapid Cleanser 706
Loctite Order No. 70636-AC
•
Tighten idler bearing for swinging arm.
X Tightening torque:
Free bearing journal
(thread cleaned + Loctite 2701 applied to complete
löength of thread on free bearing pin)............. 7 Nm
Locknut...................................................... 105 Nm
1
4
6
5
2
3
v
v
2701
2701
LT330011
