00.38

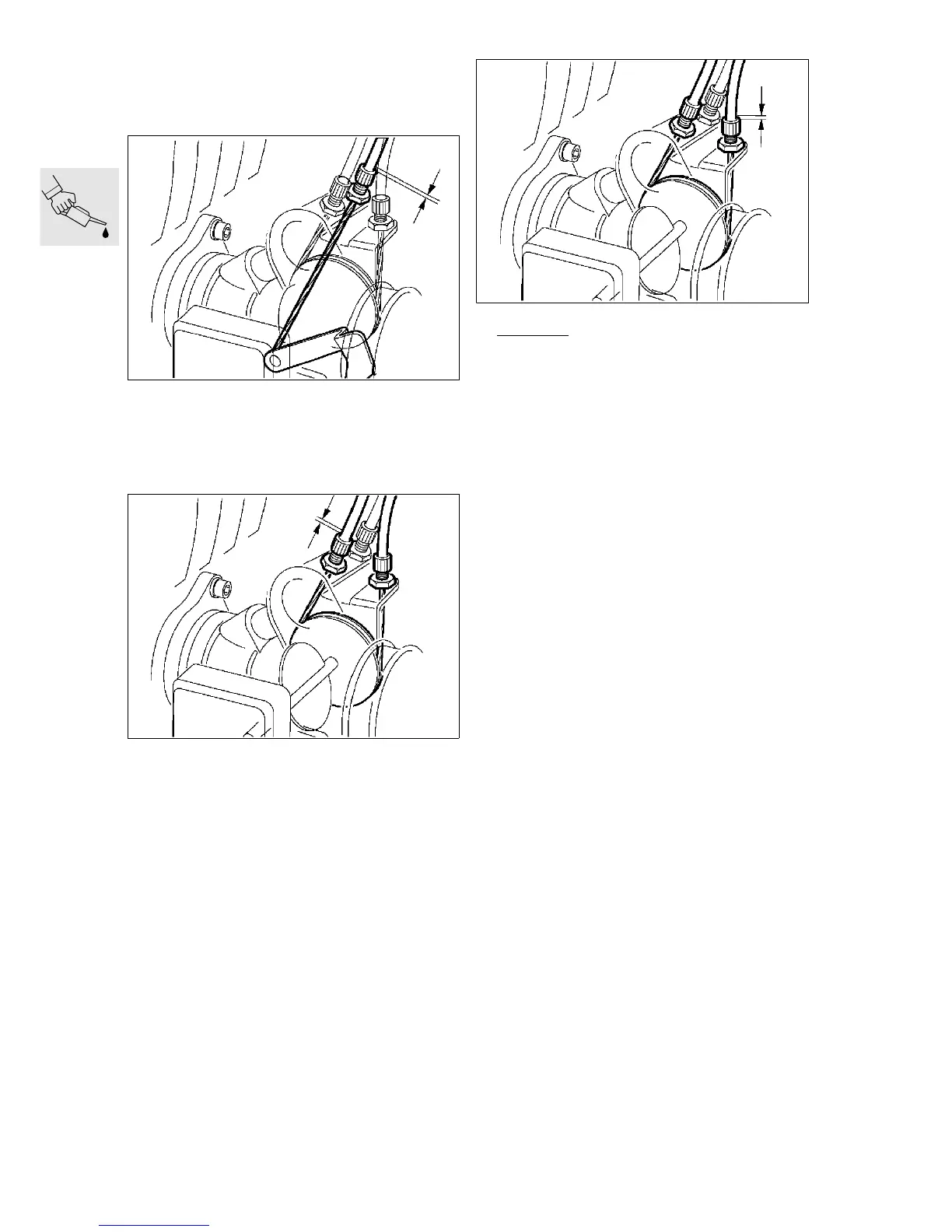

Checking/adjusting throttle syn-
chronisation and CO emission value
(Inspection I, II, III, IV)
•
[RT] Remove left side section of fairing.
•
Adjust wire cable for increased idle speed
(choke).
Choke cable play:.............................< 1 mm (0.039 in)
•
Adjust the wire cable from the throttle twistgrip
when the handlebar is on full right lock.
Throttle cable play:.......... app. 0.5 mm (0.0197 in)
•
Pre-adjust the wire connecting cable between
the throttle stub pipes with the left or right ad-
justing screw .
•
Adjust the connecting cable to zero play.
RS130020
RS130030
RS130040

BMW R 1100 RS Specifications

General

Displacement	1085 cc
Transmission	5-speed
Final Drive	Shaft drive
Engine Type	Air/oil-cooled flat twin (boxer)
Power	66 kW (90 hp) at 7, 250 rpm
Torque	95 Nm at 5500 rpm
Front Suspension	Telelever
Rear Suspension	Paralever
Front Brakes	Dual disc
Rear Brakes	Single disc
Fuel Capacity	22 liters
Seat Height	800 mm
Wheelbase	1471 mm
