00.24
Checking battery acid level/topping
up if necessary, cleaning/greasing
battery posts
(Inspection III, IV)
•
Remove dualseat.
•
[RS/RT] Take off left side fairing.
•
[GS] Take off right side fairing.
•
[R] Remove tank cover.
•

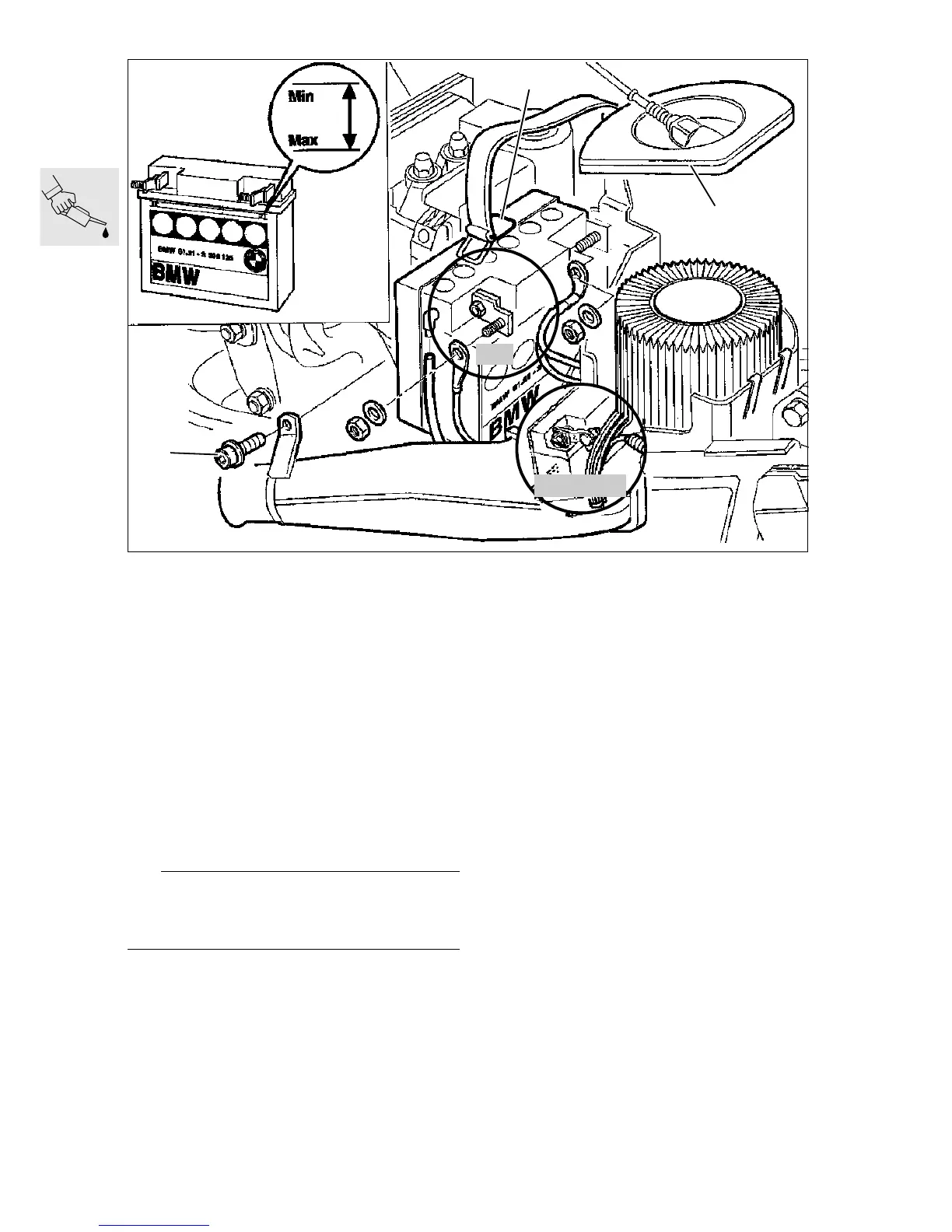

Remove air cleaner cover (1).
•
Remove intake air pipe (2).
•
[GS/R] Unscrew fuel tank fastenings.
•
[GS/R] Raise rear of fuel tank and support with a
suitable object.
•
Release the rubber battery strap (3).
•
Remove battery.
e Caution:
Disconnect negative terminal of battery first, then
positive terminal. Connect positive battery terminal
first, then negative terminal.
•
Top up battery acid level with distilled water as
far as the MAX mark.
•
Installation in reverse order.
Protective battery-post grease:
e.g. Bosch Ft 40 V1
X Tightening torque:
Fuel tank to rear frame ................................. 22 Nm
Renewing air cleaner
(Inspection III)
•
Remove dualseat.
•
[GS] Detach fuel tank at rear, raise it and support
it with a suitable object.
•
Renew air cleaner insert.
X Tightening torque:
Fuel tank to rear frame ................................. 22 Nm
R/GS/RT
RS
1
2
3
RS000340
