BMW R 1100 RS User Manual

11.93
Installing right cylinder head
Adjustment specification
e Caution:
When assembling, always start with the right
cylinder.

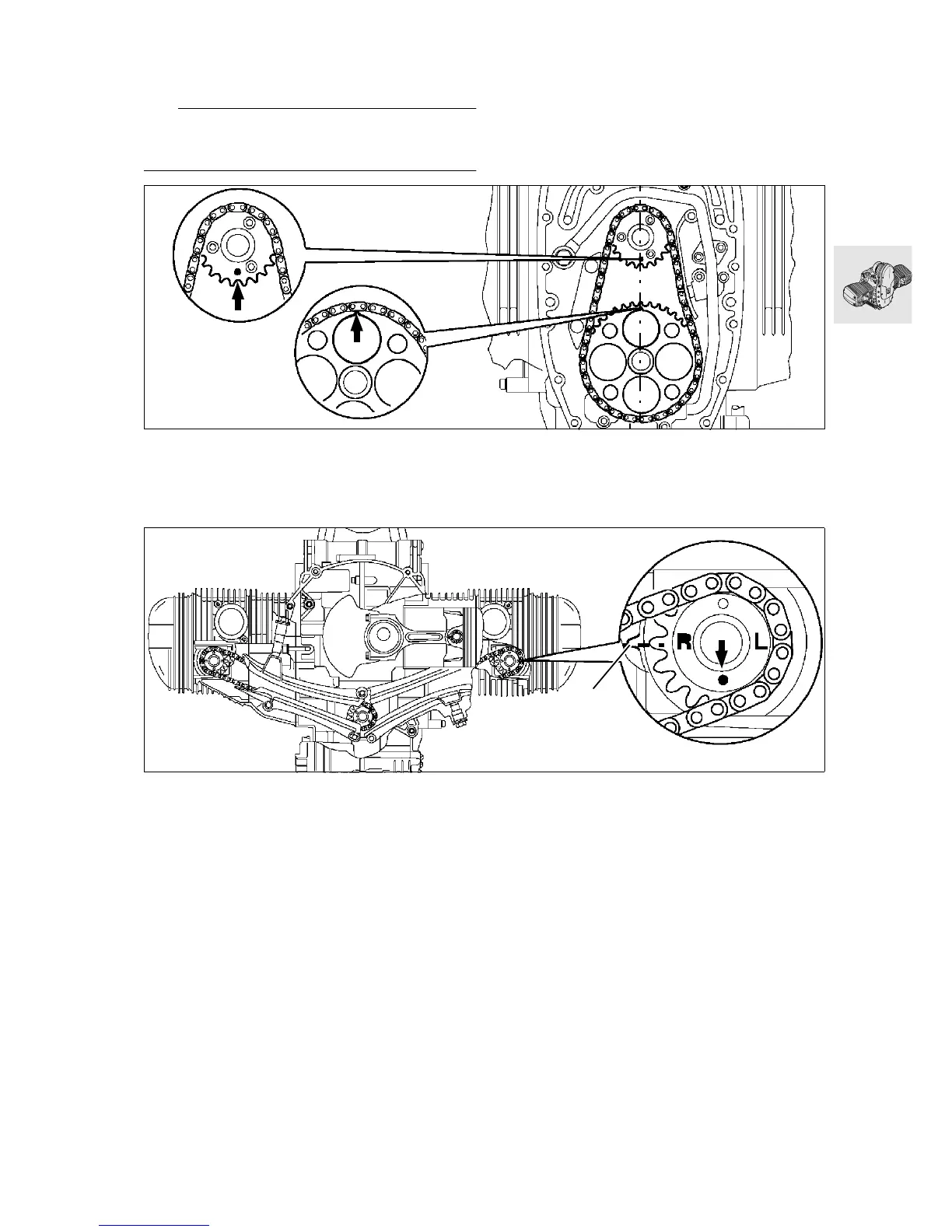

Right cylinder = at TDC on ignition stroke:
marks (arrows) on chainwheel/auxiliary shaft and
chain sprocket/crankshaft are aligned.
•
Locate ignition-stroke TDC with insert pin,
BMW No. 11 2 650, at hole in clutch housing
and en-gine block.
Right cylinder = at TDC on ignition stroke
Locating pin (arrow) on right camshaft sprocket
points downwards.
Mark (R or arrow) and tip of tooth on right camshaft
sprocket is precisely aligned with mark X on timing
gear carrier.
•
Check setting again with timing chain tensioner
installed.
RS110961
X
RS110150

BMW R 1100 RS Specifications

General

Displacement	1085 cc
Transmission	5-speed
Final Drive	Shaft drive
Engine Type	Air/oil-cooled flat twin (boxer)
Power	66 kW (90 hp) at 7, 250 rpm
Torque	95 Nm at 5500 rpm
Front Suspension	Telelever
Rear Suspension	Paralever
Front Brakes	Dual disc
Rear Brakes	Single disc
Fuel Capacity	22 liters
Seat Height	800 mm
Wheelbase	1471 mm
