Bose ControlSpace AMS-8 Safety Instructions & Installation Guide

English
15
voice
flat
voice
flat
2 5 4
3 1
1
2
3
4

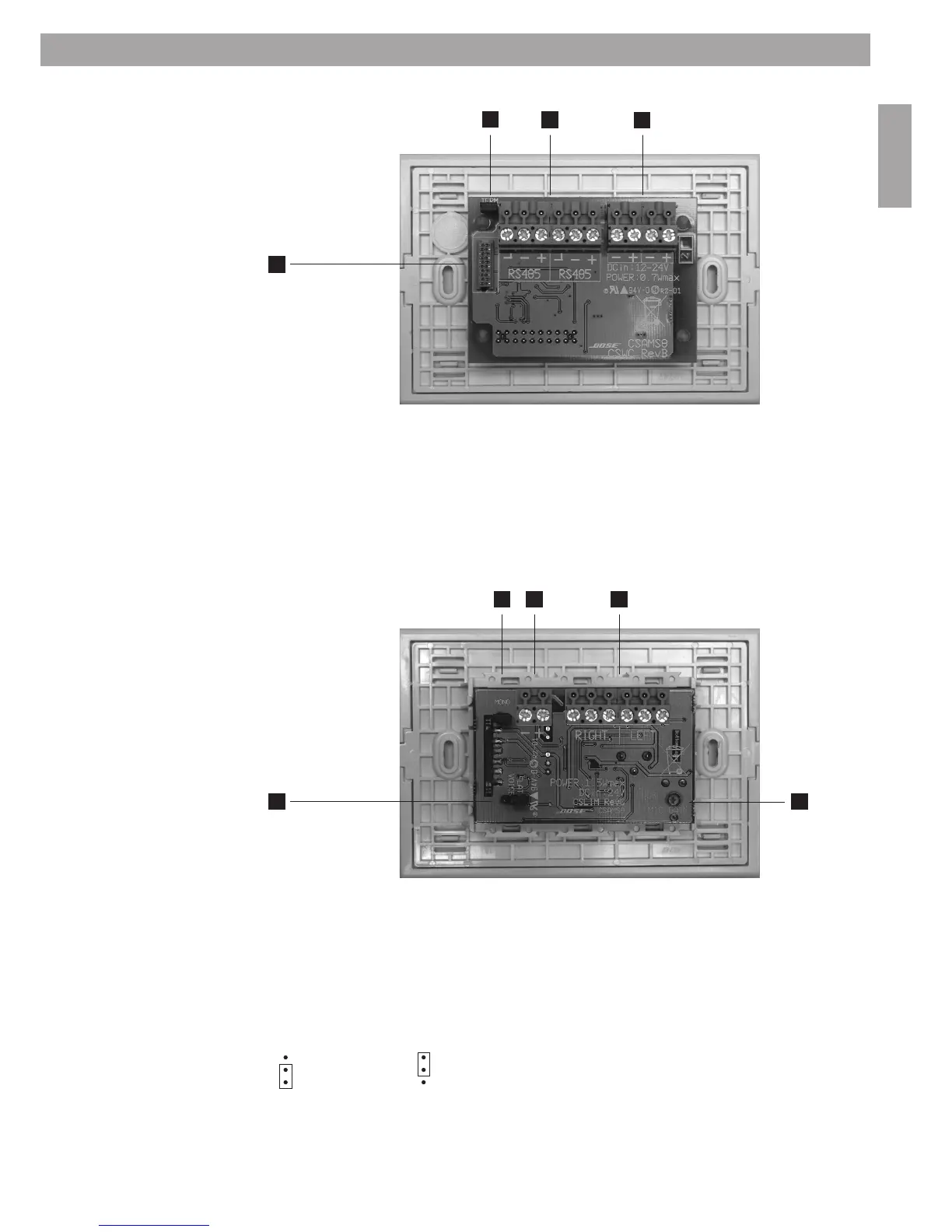

3.6 CS-WC connections and settings
1. Termination jumper, see NOTE in chapter 3.5
2. RS485 connector
3. Power supply connector (12-24Vdc)
4. Firmware update connector
NOTE: See Annex B. Wallpanel mounting instructions
1. The CS-LIM is equipped with a microphone gain adjuster, also accessible from the frontpanel by using a ‘0’ screw
driver. Turn the adjuster anti-clockwise (seen from the front) to decrease the gain to a minimum of 32dB. Turn the
adjuster clockwise to increase the gain to a max of 66dB. The factory gain setting is 38dB.
2. To change the CS-LIM from stereo to mono, this jumper needs to be set. In a mono configuration,
the audio cable should be connected to the LEFT output .
3.ToactivateavoiceEQ(optimizedEQforspeech)forthemicrophone input,
the jumper needs to be moved from FLAT to VOICE
=flatresponse =voiceEQ
4. Stereo, balanced line output connector.
5. Power supply connector (24Vdc).
NOTE: See Annex B. Wallpanel mounting instructions
3.7 CS-LIM connections and settings
3. System Installation
