Section 5: Removal/Installation 111
2. Install two hex fl ange screws to secure fuel
pump to blower housing. Alternately tight-
en screws to 12-16 in-lbs (1-2 Nm).
3. Squeeze hose clip and install hose from
fuel fi lter onto fuel inlet port (A).
4. Squeeze hose clip and install hose to fuel
pump module onto fuel outlet port (B).
5. Gently push crankcase vacuum hose onto
pulse line fi tting (C). Be sure hose is not
twisted after installation.
6. Turn ignition switch ON for two seconds,
and then OFF for 10 seconds. Turn the
ignition switch back to ON and check for
fuel leaks.
Fuel Pump Module
Removal
1. See Safety Precautions, Relieve Fuel Sys-
tem Pressure.
2. Squeeze clip and remove EVAP tube (to
elbow fi tting on cylinder 2 heat shield) from
top of fuel pump module (A). See Figure
5-6.
3. Remove three hex screws to release fuel
pump module from bracket.
4. Pull out grey secondary lock and press to
disconnect fuel pump module connector
(B).
5. Squeeze two tabs on quick disconnect fi t-
ting to release fuel rail from fuel outlet port
(C).
NOTE: Wrap shop towel around fi ttings to
catch any fuel leakage.
6. Squeeze clip at fuel inlet port (D) and
remove hose from mechanical diaphragm
fuel pump.
NOTE: Fuel pump module may contain
a small quantity of fuel. Hold fuel pump
module with inlet and outlet fi ttings pointing
upward until fuel can be drained into a suit-
able container.
Installation
1. Squeeze clip and install hose from me-
chanical diaphragm fuel pump onto fuel
inlet port (D).
2. Firmly push quick disconnect fi tting on fuel
rail onto fuel outlet port (C). Gently tug on
fi tting to verify that it is properly seated and
secure.
3. Connect fuel pump module connector (B).
Push in grey secondary lock to secure.
4. Squeeze clip and install EVAP tube (to el-
bow fi tting on cylinder 2 heat shield) at top
of fuel pump module (A).
5. Install three hex screws to fasten fuel pump
module to bracket. Alternately tighten
screws to 60-70 in-lbs (7-8 Nm).
6. Turn ignition switch ON for two seconds,
and then OFF for 10 seconds. Turn the
ignition switch back to ON and check for
fuel leaks.
A
B
C
D

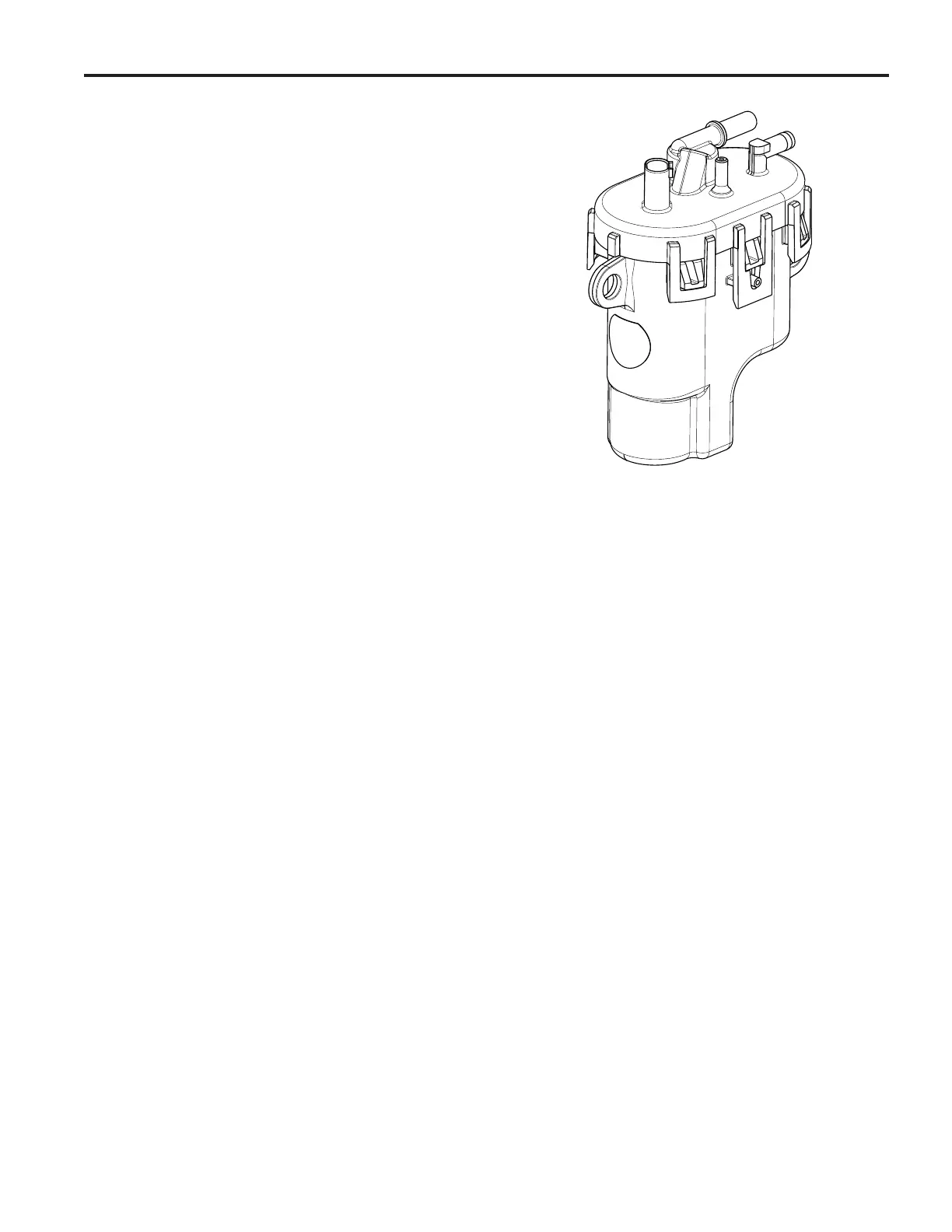

Figure 5-6 Fuel Pump Module.
