3.3.3 Installation Space Diagrams
The approximate installation space requirements may differ, depending on how
the machine is configured and the optional accessories attached.

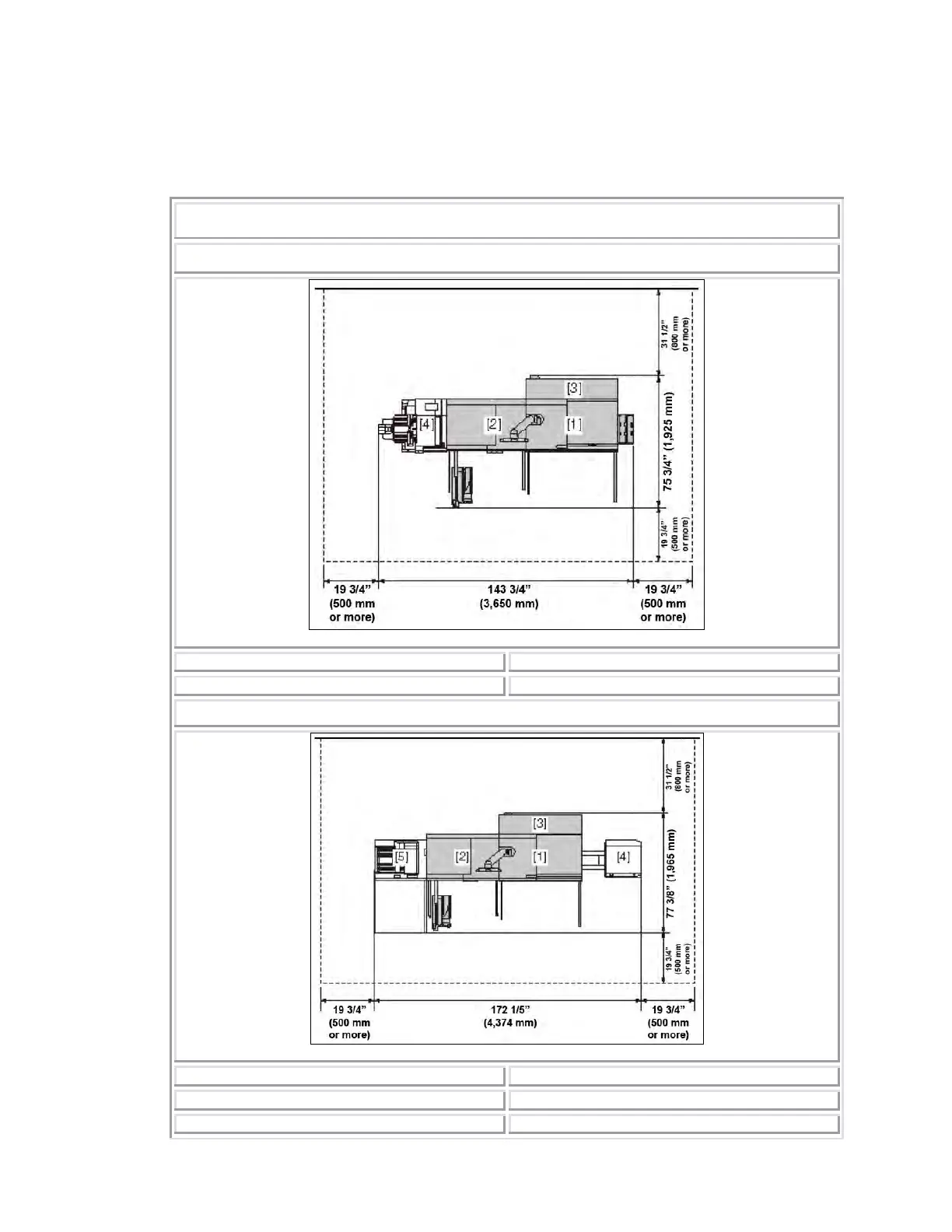

There must be enough space around the machine. The following diagrams show the
minimum dimensions; whenever possible, make sure there will be more space than indicated.
The optional Finisher-AJ1 is attached.
[1] Marking Engine
[3] Power Station Unit
[2] Sub Station
[4] Finisher-AJ1
The optional High Capacity Stacker-C1 and Paper Deck-AC1 are attached.
[1] Marking Engine
[4] Paper Deck-AC1
[2] Sub Station
[5] High Capacity Stacker-C1
[3] Power Station Unit
