Canon LV-WU360 User Manual

109
Appendix


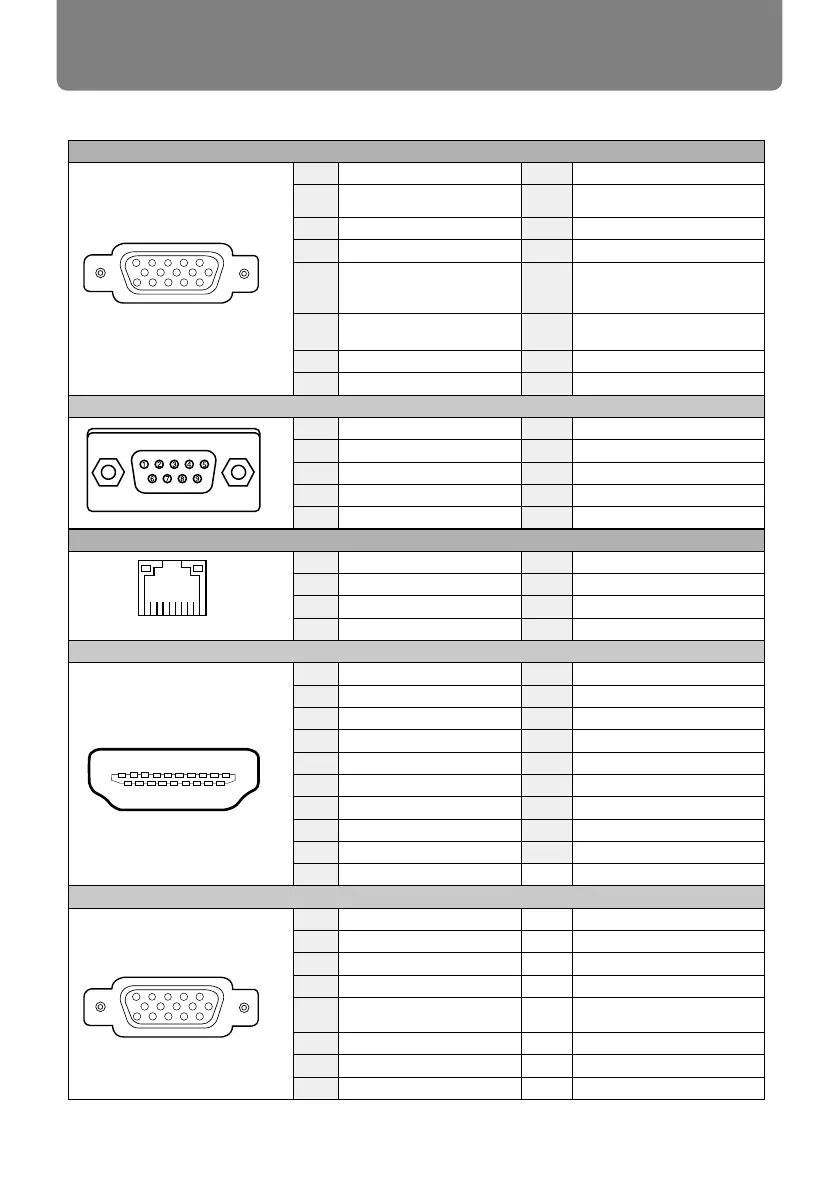

VGA IN / MONITOR OUT Terminal (D-sub 15)
1 Red (Input/output) 9 -----
2 Green(Input/output) 10 
3 Blue(Input/output) 11 Grounding
4 ----- 12 DDC data
5
Grounding
(line synchronizing)
13
Horizontal
synchronizing(compound sync.)
input/output
6 Grounding(red) 14
Vertial synchronizing input/
output
7 Grounding(green) 15 DDC Clock
8 Grounding(blue)
SERIAL Terminal(D-SUB 9)
1 ----- 6 -----
2 RXD 7 -----
3 TXD 8 -----
4 ----- 9 -----
5 GND
LAN Terminal
1 TX + 5 -----
2 TX - 6 RX -
3 RX + 7 -----
4 ----- 8 -----
HDMI Terminal (HDMI Type A 19)
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Date2 Shield 12 TMDS Clock-
3 TMDS Date2- 13 CEC
4 TMDS Date1+ 14 Reserved(N.C. on device)
5 TMDS Datel Shield 15 SCL
6 TMDS Datel- 16 SDA
7 TMDS Date0+ 17 DDC/CEC Ground
8 TMDS Date0 Shield 18 +5V Power
9 TMDS Date0- 19 Hot Plug Detect
10 TMDS Clock+
VGA IN 1 Terminal
1 Red/Pr/S-C input 9 -----
2 Green/Y/S-Y input 10 
3 B/Pb/- input 11 Grounding
4 ----- 12 DDC data
5 Grounding(line synchronizing) 13
Horizontal synchronizing
(compound sync.)input
6 Grounding(red) 14 Vertial synchronizing input
7 Grounding(green) 15 DDC clock
8 Grounding(blue)
5
1
2
34
10
9 678
15
14
13
1112
5
1
2
34
10
9 678
15
14
13
1112
8 7 6 5 4 3 2 1
1
246
8
9 7 5 3
10
12
14
1618
19
17 15 13 11
