Name and function of your projector
①
MONO(L/R) terminal
A MoNo audio signal (A single audio terminal)
should be connected to the MONO (R / L)
interface.
②
AUDIO OUT terminal
Connect external audio devices to this
terminal.
③
HDMI-1/HDMI-2 terminal
Connect HDMI1 digital output signals or
HDMI2 digital output signals to this terminal.
④
COMPUTER IN
Connect RGB to this terminal.
⑤
CONTROL
When using the RS232 functional to operate
the projector, connect the serial
communication to this terminal.
⑥
USB B terminal
When using the "USB display" function,
connect your computer to this terminal via the
USB cable.
⑦
USB A terminal
When using the Memory Viewer function,
insert the USB memory directly to this.
⑧
VIDEO IN terminal
Connect video output signal to this terminal.
⑨
AUDIO IN terminal
Connect audio signal of the PC to this terminal.
⑩
MONITOR OUT terminal
For monitor output , output the signal from
④
to
other monitors.
⑪
Remote Receiver (rear)
Use the remote control to operate the projector.
⑫
Anti-theft lock hole
An anti-theft wire cable (not included) can be
connected.
⑬
LAN terminal
Connect mesh cable to this terminal when
using network control and operate your
projector.

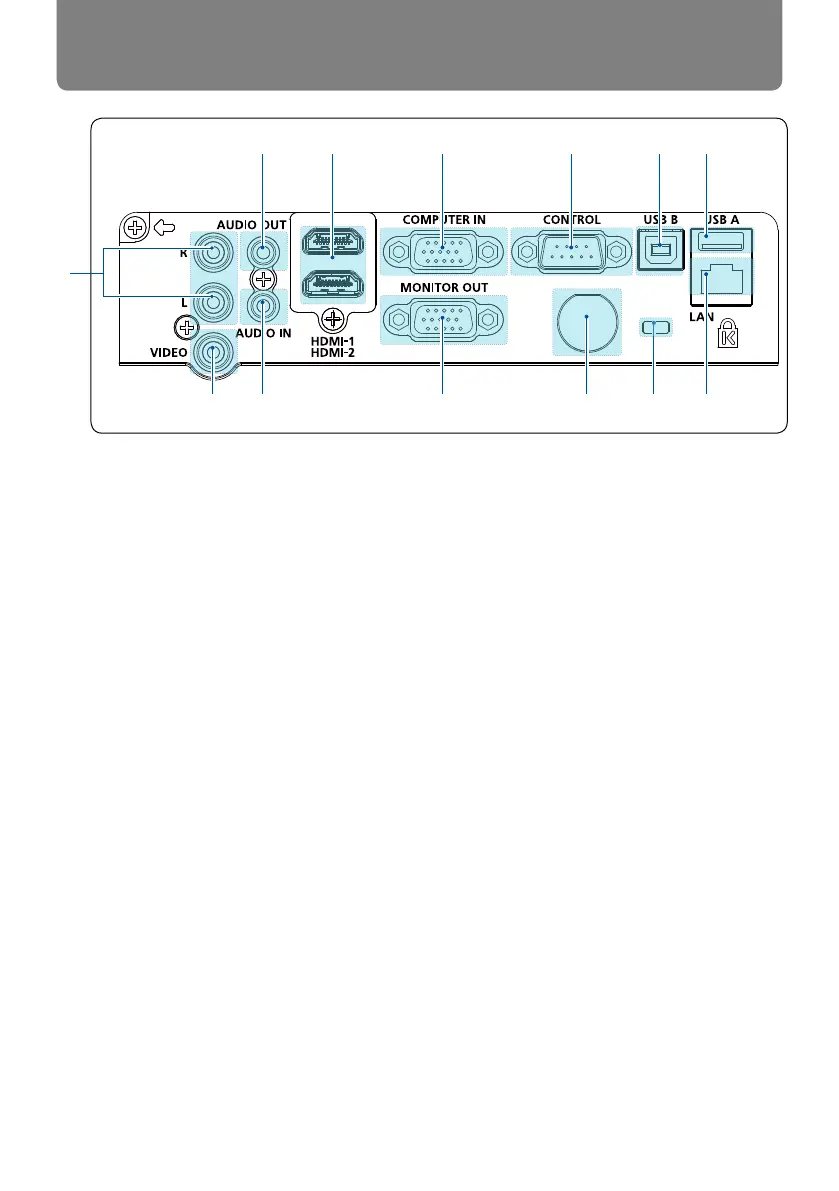

Terminals
①
② ③ ⑤④ ⑥ ⑦
⑧ ⑩ ⑪ ⑫⑨ ⑬
