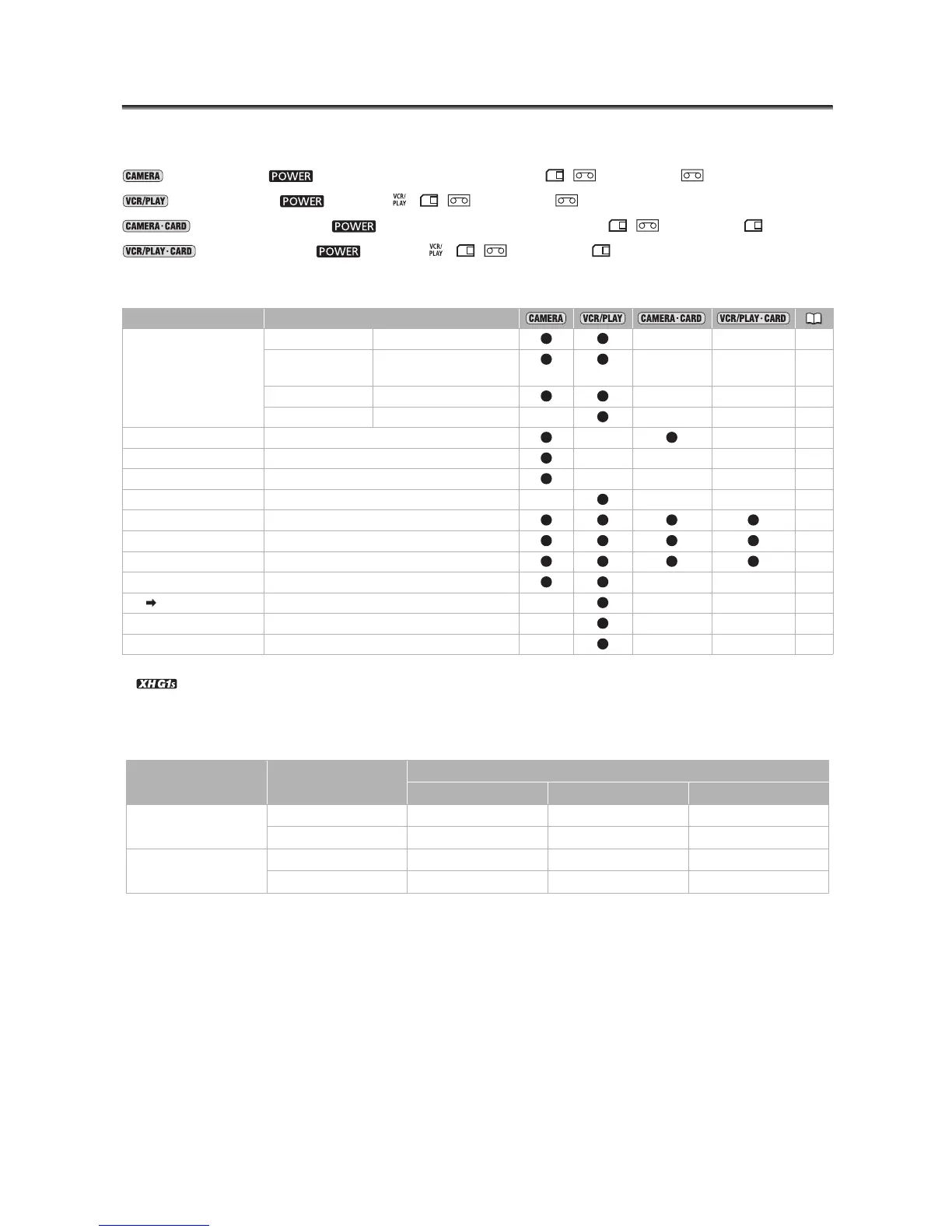

Menu Options and Default Settings
In the following tables, default settings are shown in boldface and the availability of menu settings in
different operating modes is indicated with the following icons:
: CAMERA MENU ( dial set to one of the recording modes, / switch set to )
: VCR/PLAY MENU ( dial set to , / switch set to )
: CARD CAMERA MENU ( dial set to one of the recording modes, / switch set to )
: CARD PLAY MENU ( dial set to , / switch set to )
1
Not available when recording in standard definition (SD) with the frame rate set to 24F.
2
only.
[HD DOWN-CONV]: Selects whether to down-convert the video signal output from the HDV/DV terminal
while playing back a tape recorded in HDV standard.
The down-converted output video signal will always be 60i, regardless of the frame rate of the original
recording.
Even if the audio was originally recorded using all 4 channels (with another camcorder), only channels
1 and 2 will be output.
 SIGNAL SETUP
Menu item (Submenu item and) Setting options
TIME CODE FRAME SETTNG DROP, NON-DROP – – 44
COUNT-UP REC-RUN, REC-RUN PS.,
FREE-RUN
1
– – 44
START VALUE 00:00:00:00 (SET, RESET) – – 44
HDV/DV IN REGEN., COPY – – – 86
GENLCK ADJST
2
0000 (-1023 to 1023) – – 46
SIGNAL STD HD, SD16:9, SD4:3 – – – 34
FRAME RATE 60i, 30F, 24F – – – 42
PLAYBACK STD AUTO, HDV, DV – – – 107
COMP.OUT 480i, 1080i/480i 80
SDI OUTPUT
2
ON(OSD), ON, OFF 79
SDI SPEC.
2
AUTO, SD LOCKED 79
UB OUT HD 24P 2:3, SET UB – – 46
AV DV ON, OFF – – – 87
HD DOWN-CONV ON, OFF – – – 81
LETTERBOX ON, OFF – – – 79
Standard of the tape
being played back
[HD DOWN-CONV]
Setting
[PLAYBACK STD] Setting
[AUTO] [HDV] [DV]
HDV [ON] DV DV No output
[OFF] HDV HDV No output
DV [ON] DV No output DV
[OFF] DV No output DV
