Canon XH A1S User Manual

58

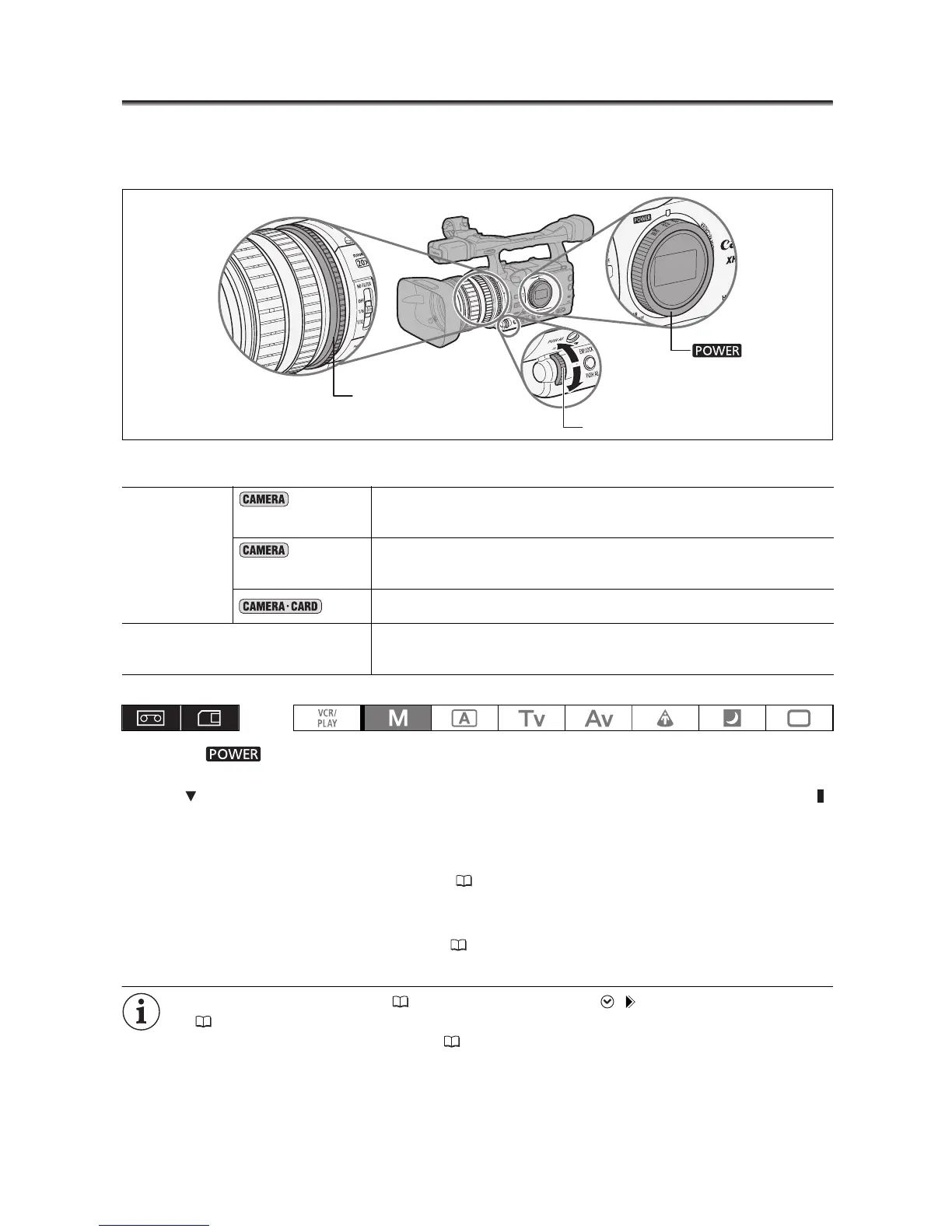

Recording in Manual Mode
You can set the exposure at any combination of shutter speed and aperture. The aperture value can be
adjusted in 1/8 EV stops; however, the aperture value displayed on the screen will change only in 1/4 EV
stops.
Available settings
* Can only be selected if the custom function [IRIS LIMIT] is set to [OFF].
1. Set the dial to M.
• The exposure indicator appears. Use the exposure indicator as an estimate.
• The mark above the indicator indicates the standard exposure (calculated by the camcorder). The
mark of the indicator indicates the current exposure level within
± 2 EV stops of the standard exposure
(beyond 2 stops, the marker will blink).
2. Select the aperture using the iris ring.
With the custom function [RINGS DIRECTION] ( 97) you can change the direction of the adjustment
when you turn the iris ring.
3. Select the shutter speed with the SHUTTER dial.
With the custom function [OPER.DIRECTION] ( 97) you can change the direction of the adjustment
when you operate the SHUTTER dial.
 You can use the custom keys ( 73) or the [SYSTEM SETUP/ ] [SHTR D.LOCK] setting
( 130) to prevent the accidental operation of the SHUTTER dial.
 With the custom function [IRIS LIMIT] ( 97) you can activate the iris limit to prevent the aperture
from closing below the diffraction limit of the lens. If the iris limit is not activated, aperture values
that exceed the diffraction limit will appear in gray when selecting the aperture. Using aperture
values displayed in gray will cause diffraction blur.
Shutter speed
(60i/30F)
1/4, 1/8, 1/15, 1/30, 1/60, 1/75, 1/90, 1/100, 1/120, 1/150, 1/180, 1/210, 1/250, 1/300,
1/360, 1/420, 1/500, 1/600, 1/720, 1/840, 1/1000, 1/1200, 1/1400, 1/1700, 1/2000,
1/2300, 1/2600, 1/3000, 1/4000, 1/8000, 1/15000, CS (clear scan)
(24F)
1/3, 1/6, 1/12, 1/24, 1/48, 1/60, 1/75, 1/90, 1/100, 1/120, 1/150, 1/180, 1/210, 1/250,
1/300, 1/360, 1/420, 1/500, 1/600, 1/720, 1/840, 1/1000, 1/1200, 1/1400, 1/1700, 1/2000,
1/2300, 1/2600, 1/3000, 1/4000, 1/8000,1/15000, CS (clear scan)
1/4, 1/8, 1/15, 1/30, 1/60, 1/75, 1/90, 1/100, 1/120, 1/150, 1/180, 1/210, 1/250, 1/300,
1/360, 1/420, 1/500
Aperture F1.6, F1.8, F2.0, F2.2, F2.4, F2.6, F2.8, F3.2, F3.4, F3.7, F4.0, F4.4, F4.8, F5.2, F5.6, F6.2,
F6.7, F7.3, F8.0, F8.7, F9.5, F10*, F11*, F12*, F14*, F15*, F16*, F17*, F19*, F21*, F22*,
CLOSE*
Iris ring
SHUTTER dial
dial

Canon XH A1S Specifications

General

Digital zoom	0 x
Optical zoom	20 x
Image stabilizer	Yes
Focal length range	4.5 - 90 mm
Focal length (35mm film equivalent)	32.5 - 650 mm
Sensor type	CCD
Total megapixels	1.67 MP
Optical sensor size	1/3 \
Effective megapixels (movie)	1.56 MP
Display diagonal	2.8 \
Display resolution (numeric)	207000 pixels
Maximum image resolution	1920 x 1080 pixels
Still image resolution(s)	1920 x 1080
3D	No
Camcorder type	Shoulder camcorder
Minimum illumination	0.3 lx
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Camcorder tape type	HDV
Camcorder media type	Memory card, Videotape
Compatible memory cards	MMC, SD, SDHC
Internal storage capacity	0 GB
Product color	Black
Built-in flash	-
Battery capacity	- mAh

Weight and Dimensions

Depth	394 mm
Width	163 mm
Height	192 mm
Weight	2135 g
