External Connections
Connecting to a Monitor/TV

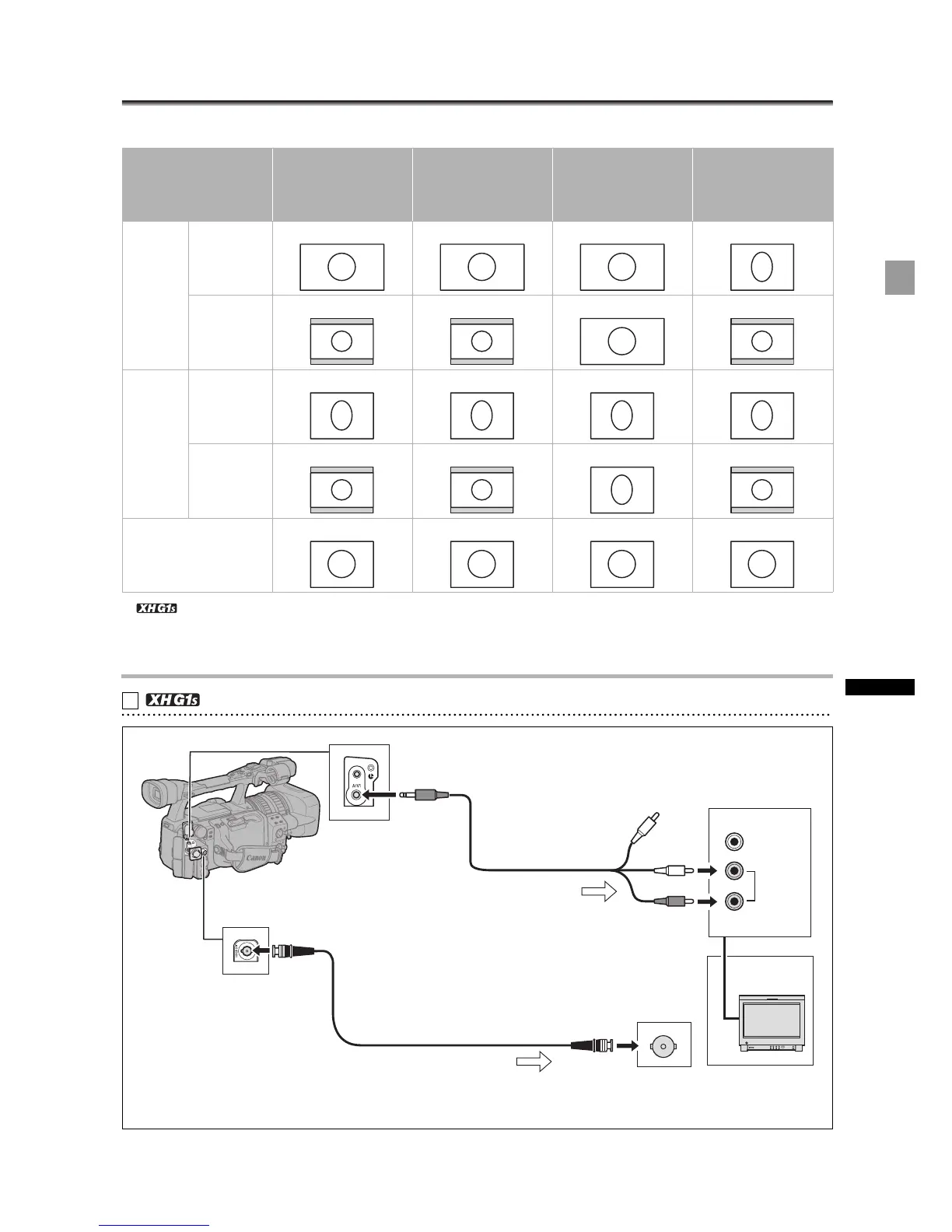

The different recording modes and the corresponding output terminals are given in the table below:
1
only.
2
The VIEWFINDER COMPONENT OUT terminal is output as 480i.
Connection to a High Definition Monitor or HDTV
Using the HD/SD SDI Terminal
HD/SD SDI Terminal
1
HD/SD COMPONENT
OUT and VIEWFINDER
COMPONENT OUT
Terminals
HDV/DV
Terminal
A/V1 and VIDEO 2
Terminals
HD [LETTERBOX]
set to [OFF]
1920x1080 D3 (1440x1080)
2
MPEG TS
[LETTERBOX]
set to [ON]
SD SDI D1 (SD) MPEG TS
SD 16:9 [LETTERBOX]
set to [OFF]
640x480 D1 (SD) DV (SD)
[LETTERBOX]
set to [ON]
SD SDI D1 (SD) DV (SD)
SD 4:3 640x480 D1 (SD) Normal DV (SD)
1
R
L
AUDIO
VIDEO
INPUT
STV-290N Stereo
Video Cable* (supplied)
BNC Cable (commercially available)
Signal flow
Signal flow
Open the terminal cover
* If [SDI OUTPUT] is set to [OFF] (no embedded audio), the audio signal is separate from the SDI video
output signal
Yello w
White
Red
