IPL (Initial Program Loading)
Via COM1 port (to send IPL data from register)
Operation
1. Turn to PGM mode.
2. Enter “7” and press <SUBTOTAL>.
3. Enter “180” and press <SUBTOTAL>.
4. Enter “49” and press <CASH>.
(In case of quitting, press <SUBTOTAL> instead of <CASH>.)
(Communication speed is fixed; 38400 bps.)
Via inline

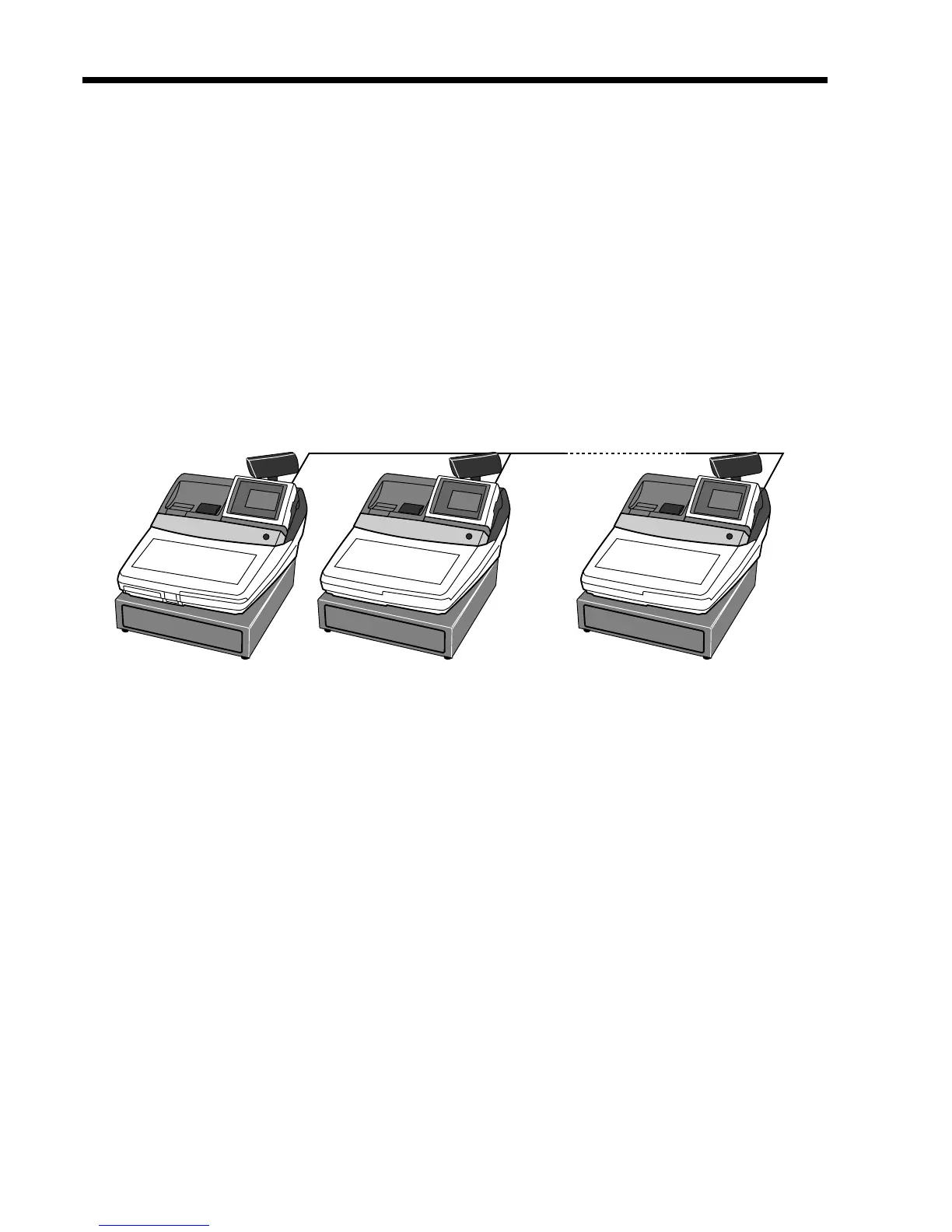

Inline
Max. 32 terminals
Master Satellite 1 Satellite 31
Operation (satellite)
1. Set the mode switch to PGM position and turn off the power switch.
(Refer page 14 of this manual for the location of the power switch.)
2. While holding down the <JOURNAL FEED>, turn on the register.
3. Release <JOURNAL FEED> after the register shows “INIT”.
4. Enter “44449999” and press <SUBTOTAL>.
5. Enter “D
4
D
3
D
2
D
1
” and press <SUBTOTAL>.
D
4
D
3
: 2-digit of machine ID for IPL
D
2
: Always “1”.
D
1
: 1-digit of baud rate designation, “0” means 312k bps, “1” means 156k bps.
6. Follow step 2 ~ 5 for all satellites to be IPL.
Operation (master)
1. Turn to PGM mode.
2. Enter “7” and press <SUBTOTAL>.
3. Enter “150” and press <SUBTOTAL>.
4. Enter “49” and press <CASH>.
(In case of quitting, press <SUBTOTAL> instead of <CASH>.)
