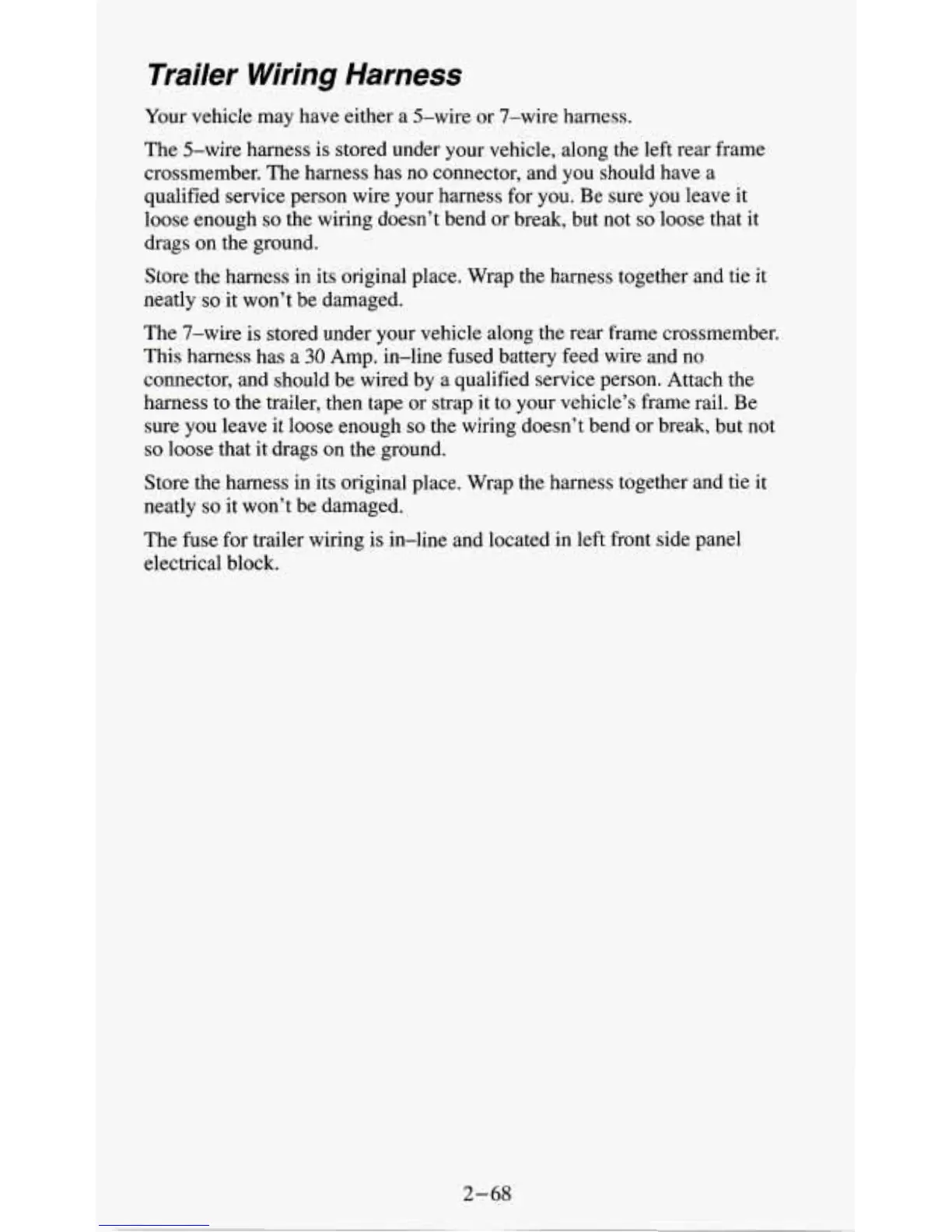

Trailer
Wiring
Harness
Your vehicle may have either a 5-wire or 7-wire harness.
The 5-wire harness is stored under your vehicle, along the left rear frame
crossmember. The harness has no connector, and you should have a
qualified service person wire your harness for you. Be sure you leave it
loose enough
so
the wiring doesn’t bend or break,
but
not
so
loose that it
drags on the ground.
Store the harness in its original place. Wrap the harness together and tie it
neatly
so
it won’t be damaged.
The 7-wire is stored under your vehicle along the rear frame crossmember.
This harness has a
30
Amp. in-line fused battery feed wire and no
connector, and should be wired by
a
qualified service person. Attach the
harness to the trailer, then tape or strap
it
to your vehicle’s frame rail. Be
sure you leave it loose enough
so
the
wiring doesn’t bend or break,
but
not
so
loose that it drags on the ground.
Store the harness in its original place. Wrap the harness together and tie it
neatly
so
it won’t be damaged.
The fuse for trailer wiring is in-line and located in left front side panel
electrical block.
2-68
