Chapter 1 SIP and SPA Product Overview
Introduction to SIPs and SPAs
SPA Services Cards
The following list describes some of the general charateristics of an SSC:
• An SSC is a carrier card that inserts into a router slot like a line card. It provides no network
connectivity.
• An SSC provides one or more subslots, which are used to house one or more SPAs. The supported
SPAs do not provide interface ports for network connectivity, but provide certain services.
• During normal operation the SSC should reside in the router fully populated either with functional
SPAs in all subslots, or with a blank filler plate (SPA-BLANK=) inserted in all empty subslots.
• SSCs support online insertion and removal (OIR) with SPAs inserted in their subslots. SPAs also
support OIR and can be inserted or removed independently from the SSC.
Shared Port Adapters
The following list describes some of the general characteristics of a SPA:
• A SPA is a modular type of port adapter that inserts into a subslot of a compatible SIP carrier card
to provide network connectivity and increased interface port density. A SIP can hold one or more
SPAs, depending on the SIP type.
• Some SPAs provide services rather than network connectivity, and insert into subslots of compatible
SSCs. For example, the IPSec VPN SPA provides services such as IP Security (IPSec)
encryption/decryption, generic routing encapsulation (GRE ), and Internet Key Exchange (IKE) key
generation.
• SPAs are available in the following sizes, as shown in Figure 1-1 and Figure 1-2:
– Single-height SPA—Inserts into one SIP subslot.
– Double-height SPA—Inserts into two single, vertically aligned SIP subslots.

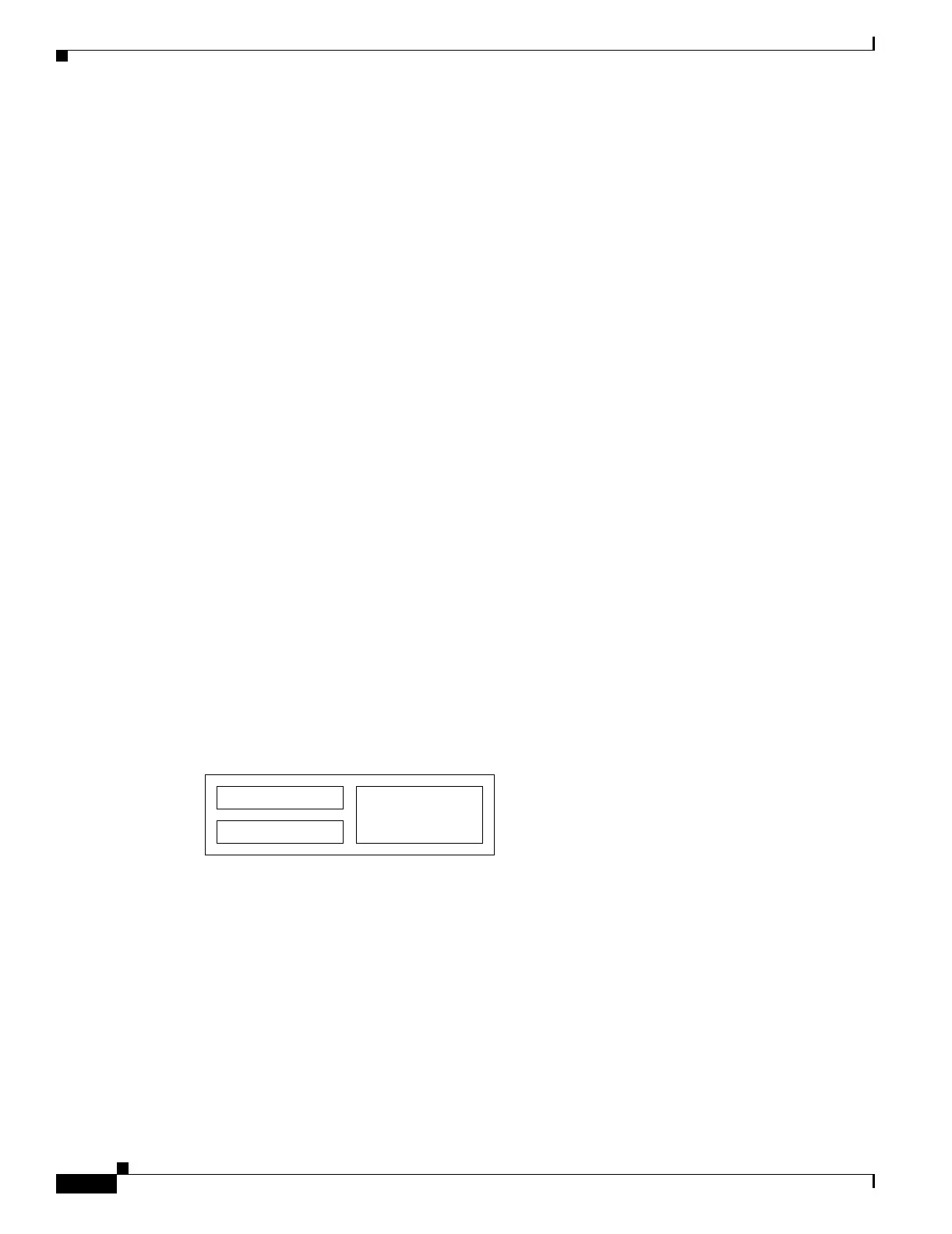

Figure 1-1 Single-Height and Double-Height SPA Sizes
Single-height SPA
Double-height SPA
Front of SIP
116886
