Chapter 2 Overview: Cisco 7600 Series SIPs
Cisco 7600 SIP-400 Overview
Cisco 7600 SIP-200 Default DIP Switch Settings
If SW3 and SW10 switches are present on the board, make sure they are set to the default settings, as
shown in Table 2-6. See Figure 2-6 for the location of the switches.
The switches are set to their defaults during manufacture. However, the switch settings may get
inadvertently changed during handling.
Note If the switches are not set to their default settings, there may be momentary packet drops during OIR of
the board.
Table 2-6 Cisco 7600 SIP-200 Default DIP Settings

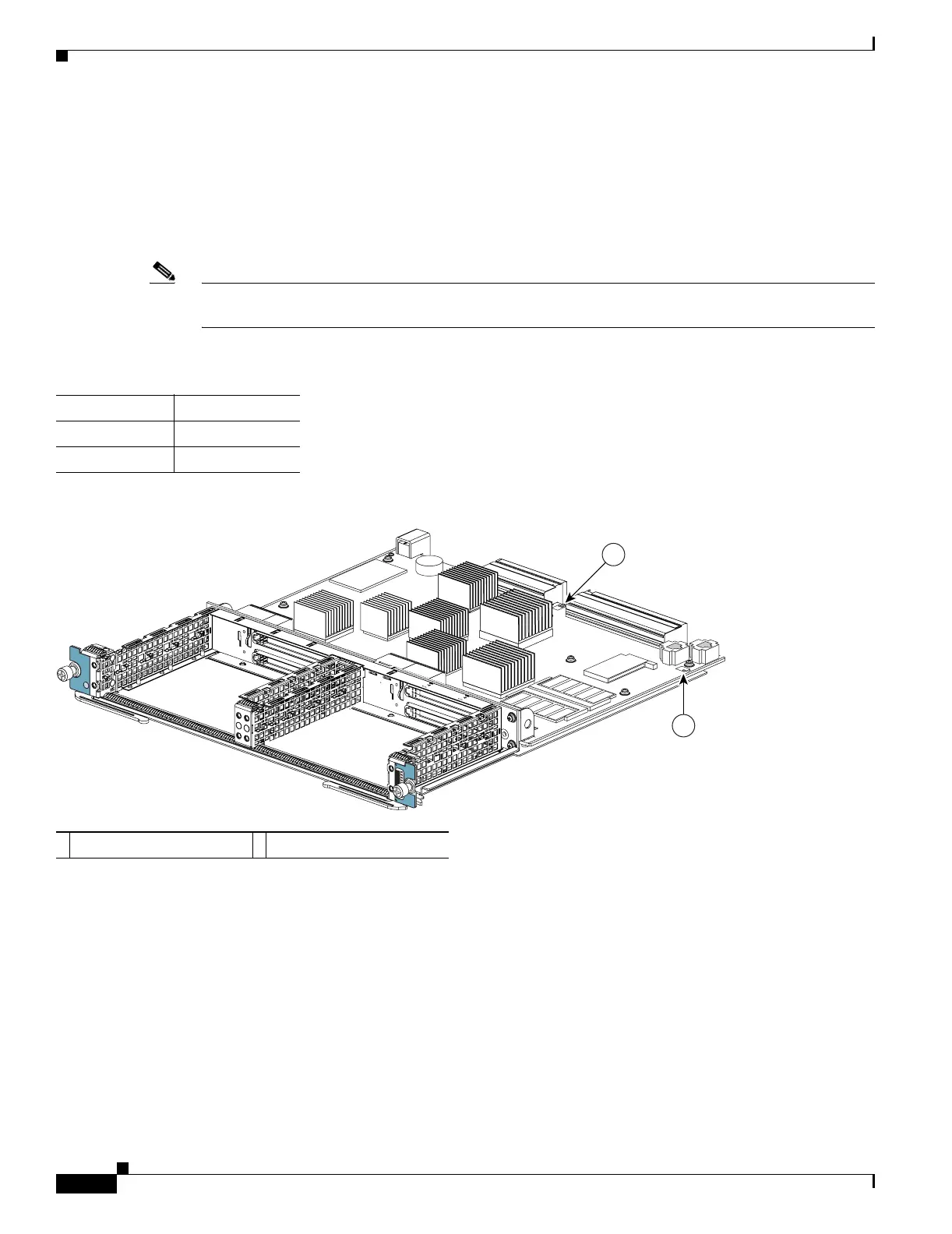

Figure 2-6 Cisco 7600 SIP-200 DIP Switch Locations
\
Cisco 7600 SIP-400 Overview
The following sections describe the Cisco 7600 SIP-400 (Cisco part number 7600-SIP-400):
• Cisco 7600 SIP-400 Processor, page 2-9
• Cisco 7600 SIP-400 LEDs, page 2-9
• Cisco 7600 SIP-400 Physical Specifications, page 2-9
Switch Default Position
SW3 Up
SW10 Down
1 SW3 2 SW10
S
T
A
T
U
S
2
0
MODULAR
SERVICES CARD
7
60
0
-M
S
C
-2
00
129724
1
2
