Chapter 3 Overview: Cisco 7600 Series Router Shared Port Adapters
1-Port OC-192c/STM-64 POS/RPR XFP SPA Overview
1-Port OC-192c/STM-64 POS/RPR XFP SPA Overview
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA is a single-height SPA that is installed in one SIP
subslot. The 1-Port OC-192c/STM-64 POS/RPR XFP SPA provides SONET and SDH network
connectivity with a bandwidth of 9.95 Gbps.
For more information about SPA bandwidth, see the “Bandwidth Oversubscription” section in this
chapter. For more information about SPAs and their compatibility with SIPs and modular optics, see the
product overview chapter in this guide.
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA uses a 10-Gbps small form-factor pluggable optical
receptacle for each port allowing connection to single-mode optical fiber. For more information on the
optical fiber cables used with this SPA, see the “OC-3c/STM-1 POS SPA SFP Optical Transceiver
Modules and Cables” section on page 3-16.
The following sections describe the 1-Port OC-192c/STM-64 POS/RPR XFP SPA:
• OC-3c/STM-1 POS SPA LEDs, page 3-15
• OC-3c/STM-1 POS SPA Interface Specifications, page 3-15
• OC-3c/STM-1 POS SPA SFP Optical Transceiver Modules and Cables, page 3-16
1-Port OC-192c/STM-64 POS/RPR XFP SPA LEDs
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA has six LEDs, as shown in Figure 3-26.

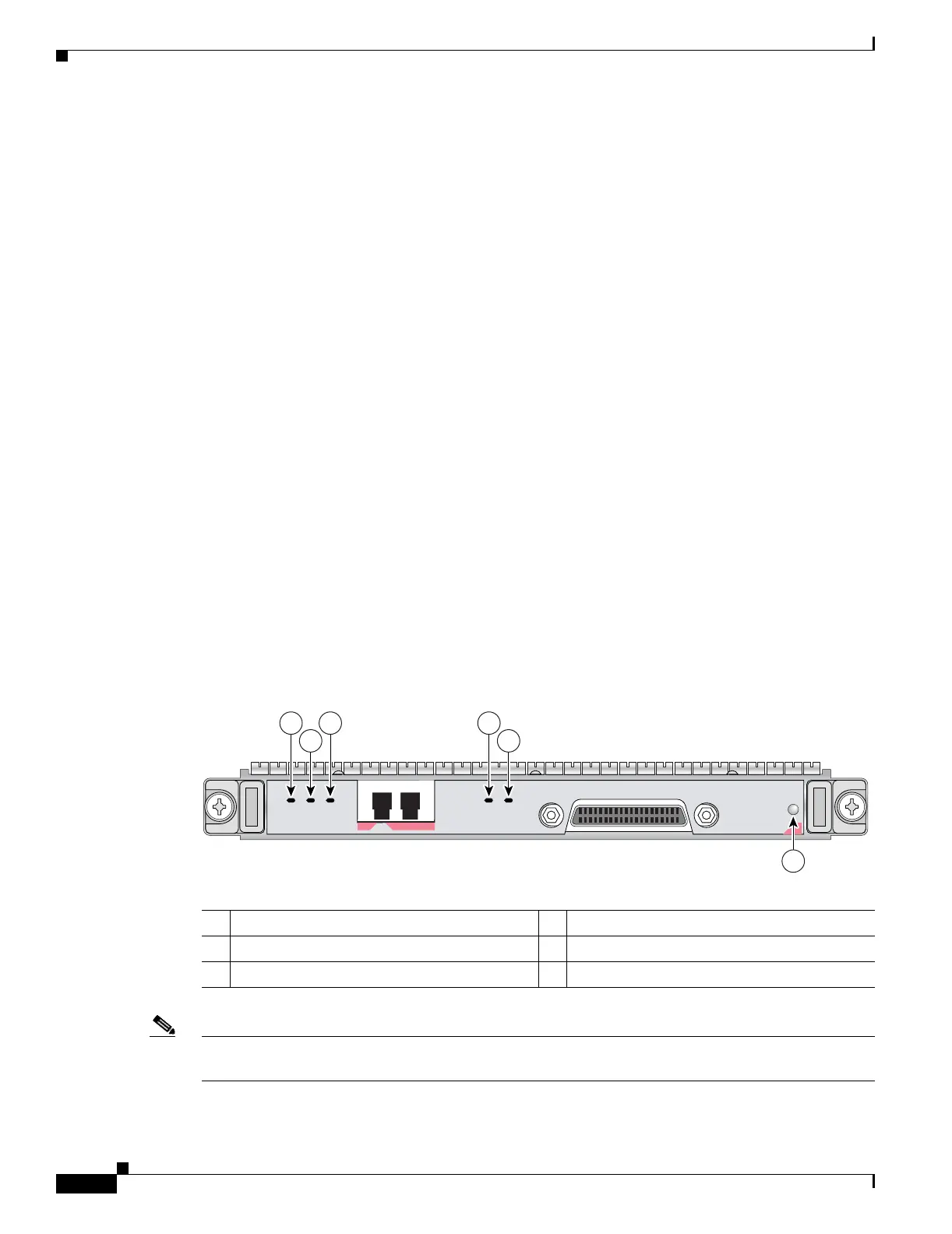

Figure 3-26 1-Port OC-192c/STM-64 POS/RPR XFP SPA Faceplate
Note The WRAP, PASSTHRU, and MATESYNC LEDs apply to the SPA in RPR/SRP mode only. As of ,
RPR/SRP mode is not supported.
1 WRAP LED 4 CARRIER LED
2 PASSTHRU LED 5 ACTIVE LED
3 MATESYNC LED 6 STATUS LED
MATESYNC
PASSTHRU
WRAP
CARRIER
ACTIVE
SPA-0C192POS-XFP
STA
TUS
0
129432
1
2
3 4
5
6
