Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide
OL-5052-08
Chapter 3 Overview: Cisco 7600 Series Router Shared Port Adapters
1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA Overview
The following sections describe the 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA:
• OC-3c/STM-1 POS SPA LEDs, page 3-15
• OC-3c/STM-1 POS SPA Interface Specifications, page 3-15
• OC-3c/STM-1 POS SPA SFP Optical Transceiver Modules and Cables, page 3-16
1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA POS SPA LEDs
The 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA has six LEDs. Figure 3-23 shows an example
of these LEDs on a 1-Port OC-192c/STM-64 POS/RPR SPA.

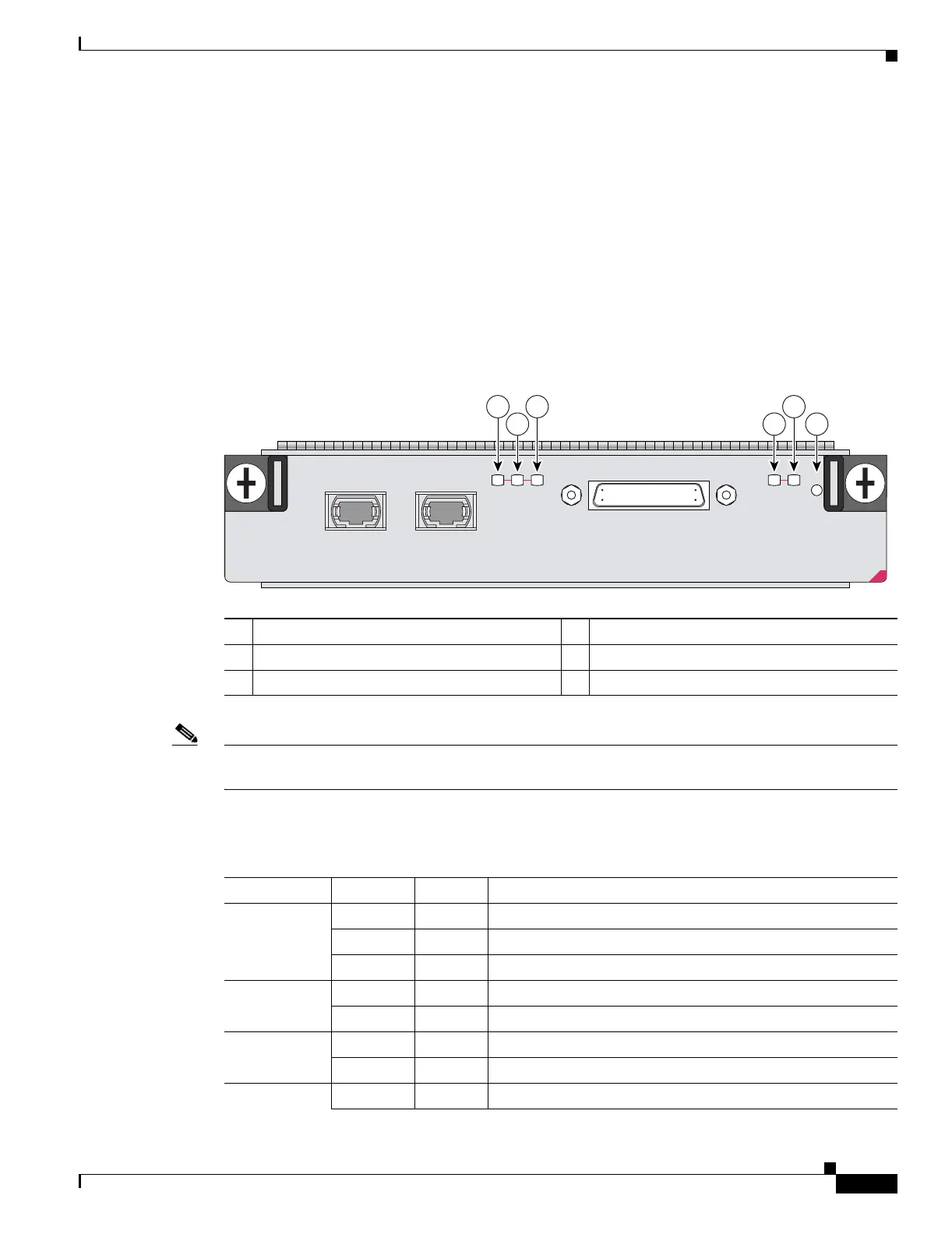

Figure 3-29 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA Faceplate
Note The WRAP, PASSTHRU, and MATESYNC LEDs apply to the SPA in RPR/SRP mode only. In
Cisco IOS Release 12.0(31)S, RPR/SRP mode is not supported.
The 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA LEDs are described in Table 3-16 .
1 WRAP LED 4 CARRIER LED
2 PASSTHRU LED 5 ACTIVE LED
3 MATESYNC LED 6 STATUS LED
SPA-OC192POS VSR
STATUS
MATESYNC
PASSTHRU
WRAP
ACTIVE
CARRIER
138989
TX RX
1
2
3 5
4 6
Table 3-19 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA LEDs
LED Label Color State Meaning
WRAP Off Off Port is not in wrap mode.
Green On Port is in wrap mode somewhere on the ring.
Amber On Port is in wrap mode locally.
PAS STHRU Off Off Port is not in pass thru mode.
Amber On Port is in pass thru mode.
MATESYNC Off Off Mate port is not synchronized.
Green On Mate port is synchronized.
CARRIER Off Off Port is not enabled by software.
