Chapter 3 Overview: Cisco 7600 Series Router Shared Port Adapters
1-Port OC-192c/STM-64 POS/RPR XFP SPA Overview
1-Port OC-192c/STM-64 POS/RPR XFP SPA Optical Transceiver Modules,
Connectors, and Cables
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA uses a single-mode, 9.95 Gbps, OC-192c optical fiber
(SONET STS-192c or SDH STM-64) optical transceiver module for SONET and SDH connection to the
network.
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA supports the following types of optical transceiver
module:
• Single-mode short-reach (SR) XFP module—XFP-10GLR-OC192SR
• Single-mode intermediate-reach (IR) XFP module—XFP-10GER-OC192IR
• Single-mode very-long reach XFP module—XFP-10GZR-OC192LR
Cisco Systems qualifies the optics that are approved for use with its SPAs. As of , the above-listed XFPs
are the only optical transceiver modules qualified for use.
Use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns (nominal diameter
is approximately 10/125 microns) to connect your router to a network.
Figure 3-27 shows the cable type for use with the XFP optical transceiver module on the 1-Port
OC-192c/STM-64 POS/RPR XFP SPA.

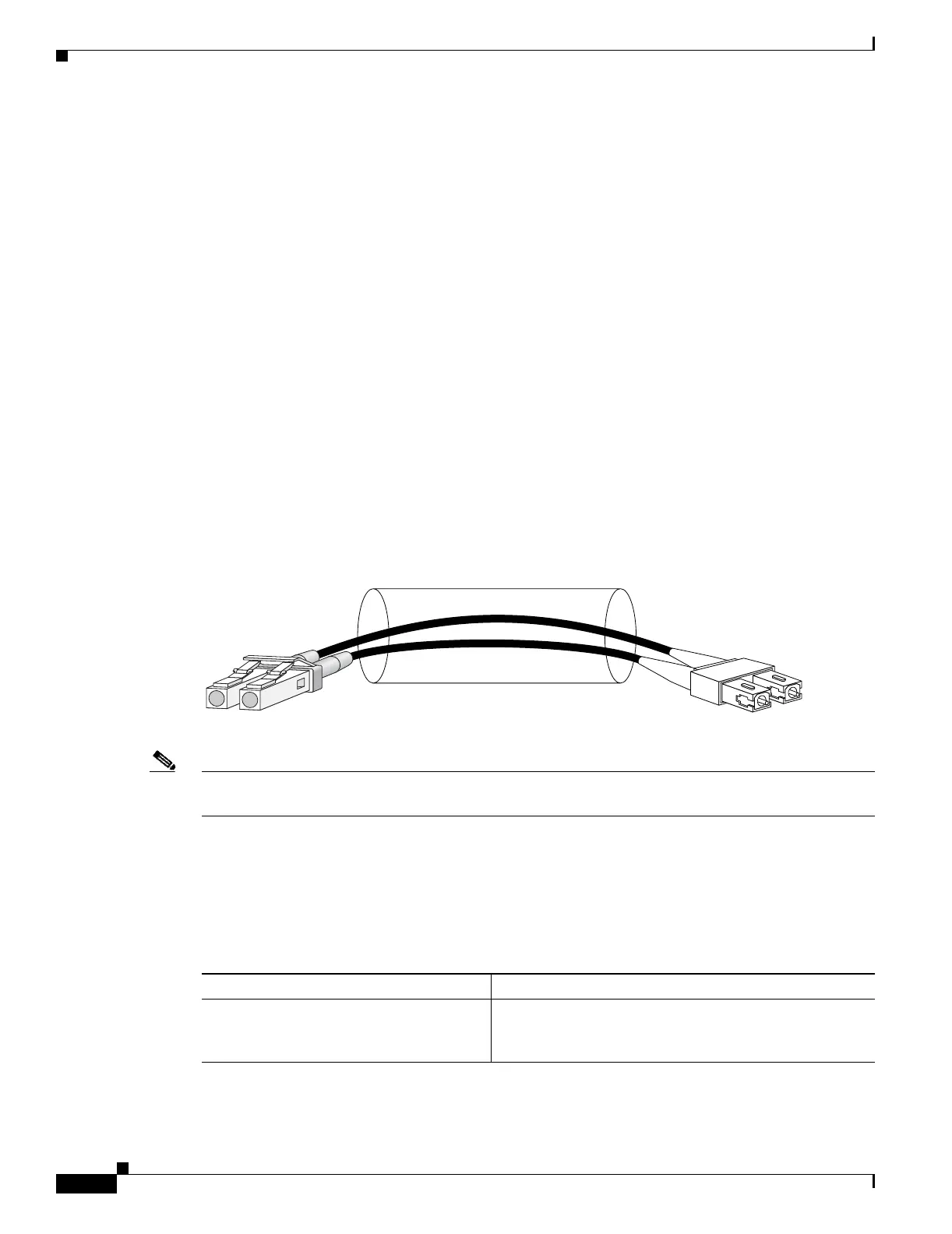

Figure 3-27 LC-Type Cable for the XFP Optical Transceiver Modules
Note The 40-pin connector on the 1-Port OC-192c/STM-64 POS/RPR XFP SPA is used for resilient packet
ring (RPR) connections. This feature is not supported in .
OC-192 Module Connections
Table 3-18 shows the OC-192 specifications for use with the 1-Port OC-192c/STM-64 POS/RPR XFP
SPA.
/ / / /
/ /
TXRX
84929
Table 3-18 OC-192 Specifications
Specification Description
Wavelength OC-192 SR-1: 1290 nm to 1330 nm
OC-192 IR-2: 1530 nm to 1565 nm
OC-192 LR-2: 1530 nm to 1565 nm
