Cisco 7600 Series User Manual

3-29
Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide
OL-5052-08
Chapter 3 Overview: Cisco 7600 Series Router Shared Port Adapters
1-Port OC-192c/STM-64 POS/RPR SPA Overview
1-Port OC-192c/STM-64 POS/RPR SPA LEDs
The 1-Port OC-192c/STM-64 POS/RPR SPA has six LEDs, as shown in Figure 3-23.

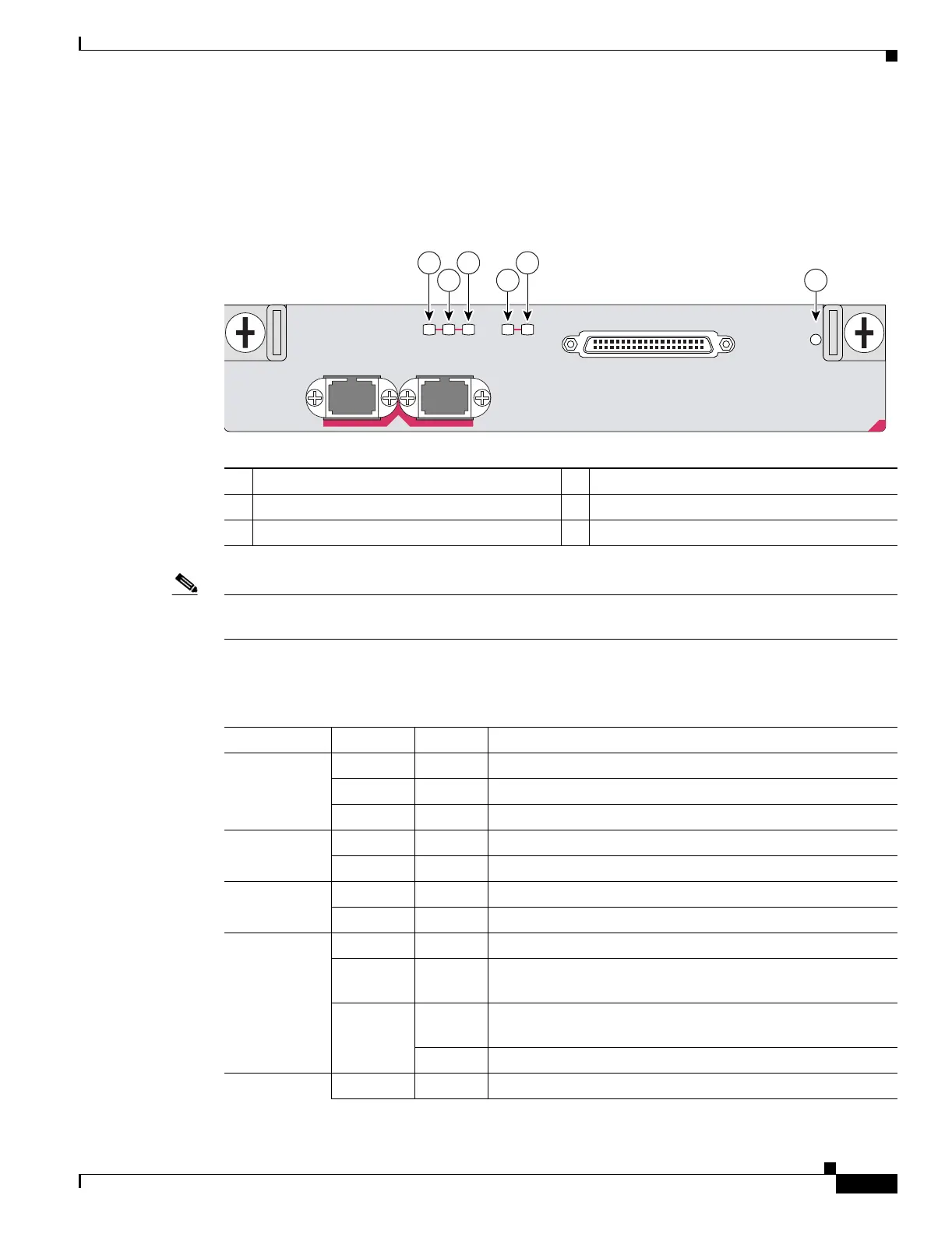

Figure 3-23 1-Port OC-192c/STM-64 POS/RPR SPA Faceplate
Note The WRAP, PASSTHRU, and MATESYNC LEDs apply to the SPA in RPR/SRP mode only. In
Cisco IOS Release 12.0(31)S, RPR/SRP mode is not supported.
The 1-Port OC-192c/STM-64 POS/RPR SPA LEDs are described in Table 3-16.
1 WRAP LED 4 CARRIER LED
2 PASSTHRU LED 5 ACTIVE LED
3 MATESYNC LED 6 STATUS LED
SPA-OC192POS LR
STATUS
MATESYNC
PASSTHRU
WRAP
ACTIVE
CARRIER
0
1
2
3
4 6
5
129138
TX RX
Table 3-16 1-Port OC-192c/STM-64 POS/RPR SPA LEDs
LED Label Color State Meaning
WRAP Off Off Port is not in wrap mode.
Green On Port is in wrap mode somewhere on the ring.
Amber On Port is in wrap mode locally.
PAS STHRU Off Off Port is not in pass-thru mode.
Amber On Port is in pass-thru mode.
MATESYNC Off Off Mate port is not synchronized.
Green On Mate port is synchronized.
CARRIER Off Off Port is not enabled by software.
Green On Port is enabled by software; there is a valid SONET signal
without alarms.
Amber On Port is enabled by software; there is at least one alarm (LOS,
LOF, RDI, and so on).
Blinking Indicates SRP mode mismatch alarm.
ACTIVE Off Off Port is not enabled by software.
