Chapter 6 PIX 525
Installing a Circuit Board in the PIX 525

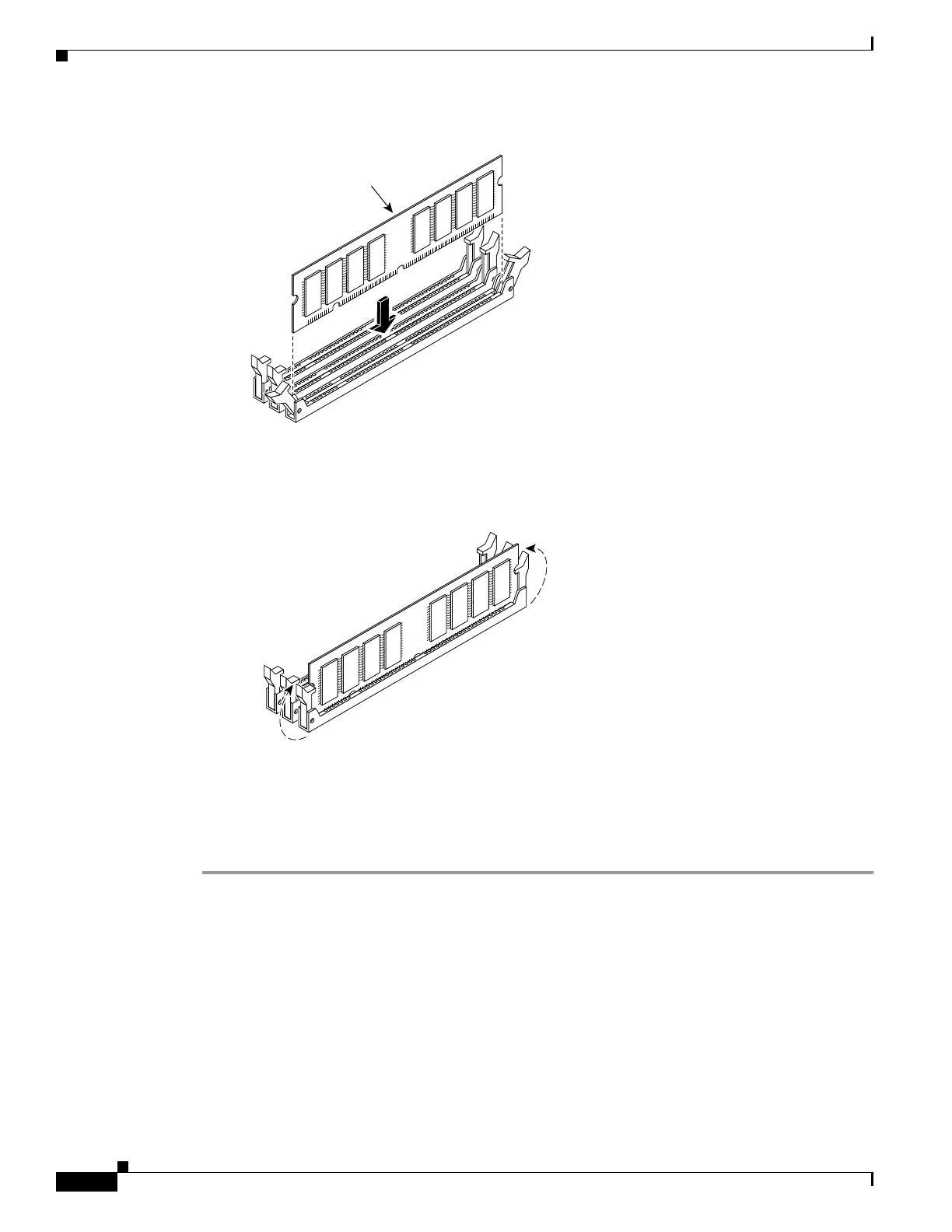

Figure 6-12 Inserting a DIMM Memory Strip in the PIX 525
Figure 6-13 Securing a DIMM Memory Strip in the PIX 525
When you finish inserting new RAM memory, reinstall the tray on the PIX 525. Reattach the screws. If
desired, rack mount the PIX Firewall and attach all cables and cords as discussed in previous sections.
After the PIX Firewall is installed, you can view the amount of RAM memory in the system startup
messages or with the show version command.
Installing a Circuit Board in the PIX 525
The information in this section refers to all PIX 525 models. Table 6-3 lists the optional circuit board
combinations that are available for the PIX 525. This section includes the following topics:
• PIX Firewall VPN Accelerator Circuit Board, page 6-17
• Gigabit Ethernet Circuit Board, page 6-18
