User Manual
Configuring via Web-based Interface
Configuration
On the
System / Configuration
page, you can
reboot the device,
save the changed
se
ttings to
the
non-volatile
memory
,
restore
the
factor
y
defaults,
backup
the
current
configuration,
or
restore
the
router's configuration from a previously created file.

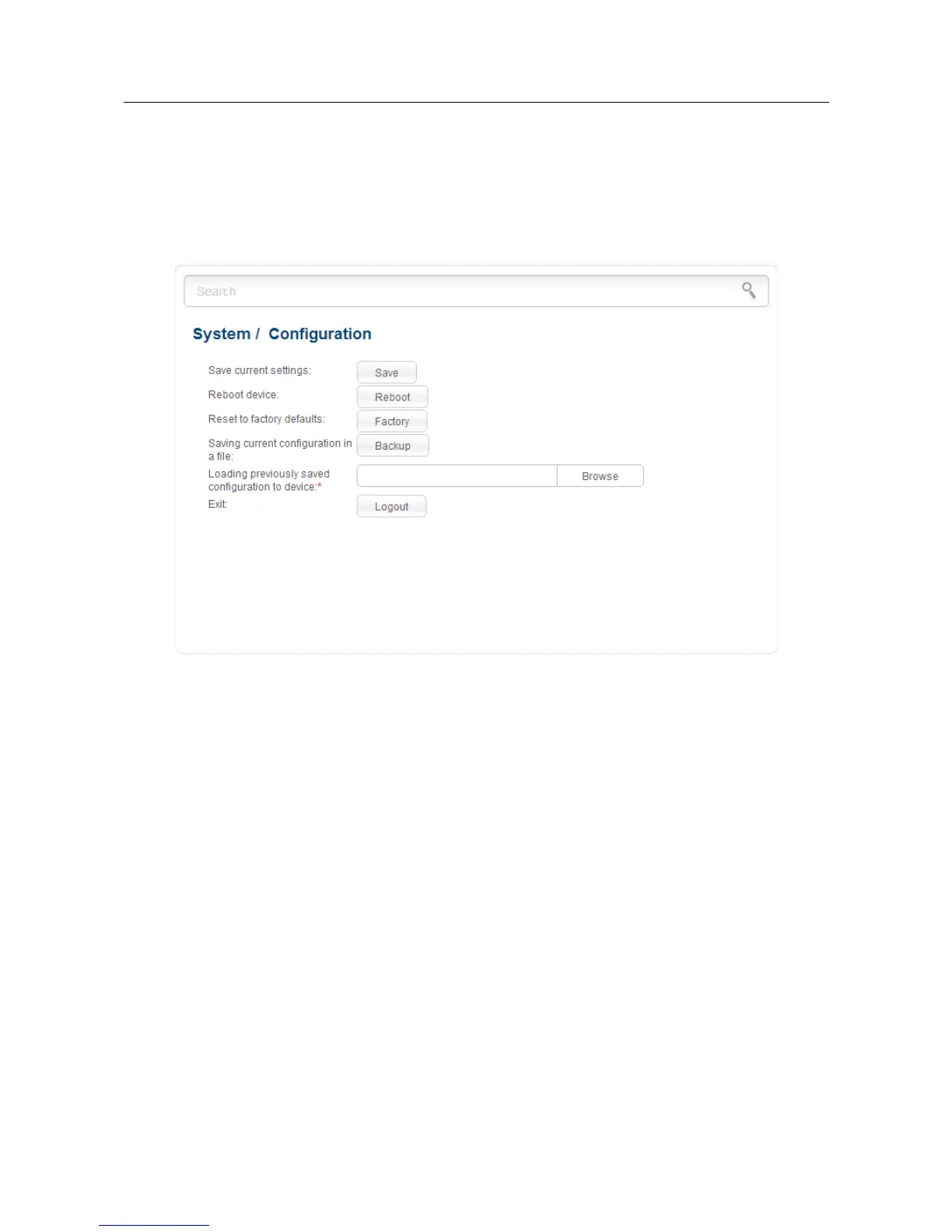

Figure 161. The
System / Configuration
page.
Page
207
of 225
206
208
