DIR-620 Wireless N300 Router with 3G/CDMA/LTE Support
and USB Port
User Manual
Configuring via Web-based Interface
PPTP + Static IP or L2TP + Static IP Connection

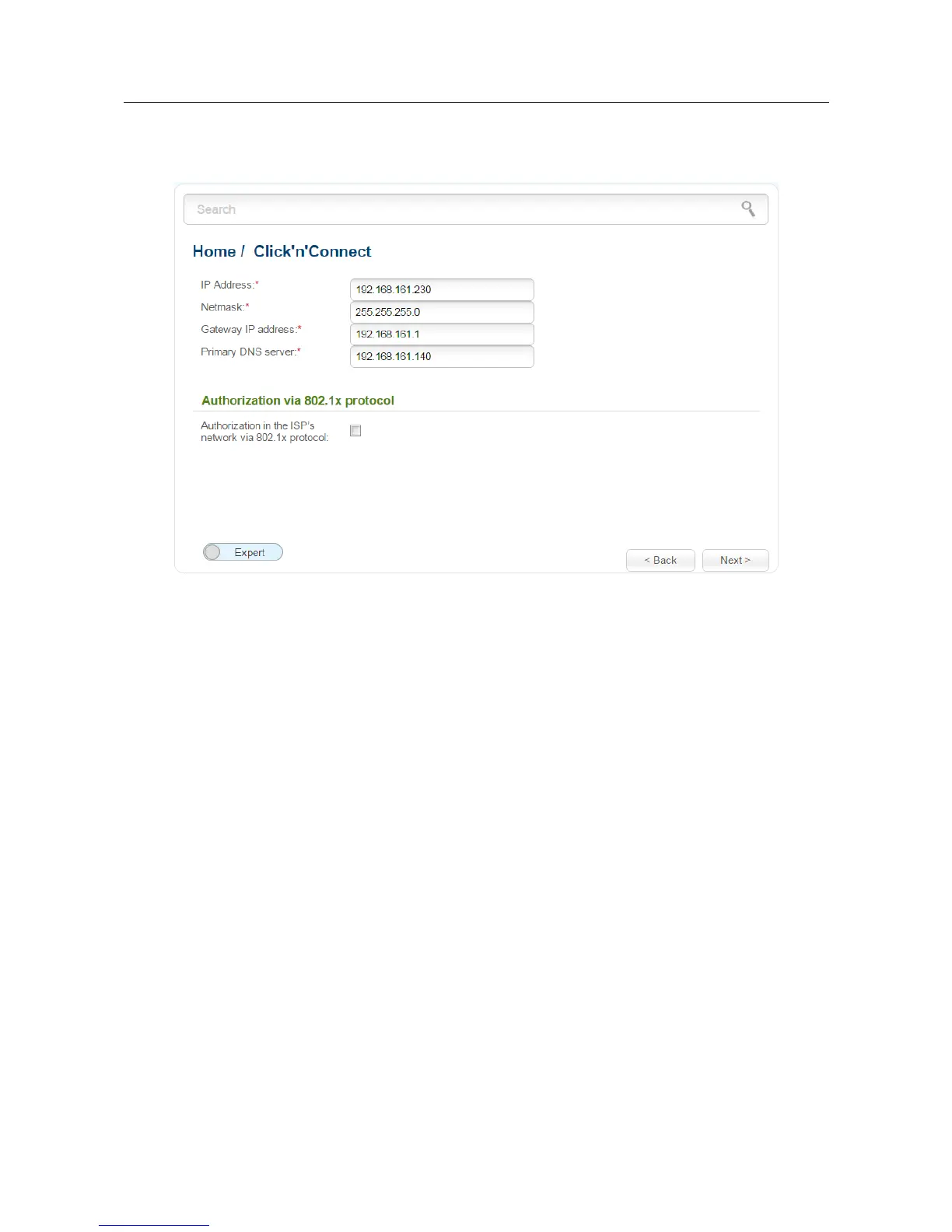

Figure 39. Configuring PPTP + Static IP WAN connection.
Fill in the IP Address and Netmask fields.
In the Gateway IP address field, enter the IP address of the gateway used by this WAN
connection.
In the Primary DNS server field, enter the address of the primary DNS server.
If your wired ISP uses authorization via the 802.1x protocol, in the Authorization via 802.1x
protocol section, select the Authorization in the ISP's network via 802.1x protocol
checkbox and fill in the fields of the section in accordance with data provided by your ISP.
As a rule, the specified settings are enough to configure a non-protected connection of the selected
type. If you need to specify additional settings, open the expert settings mode. To do this, use the
switch in the bottom left corner of the page (for a detailed description of all the connection's
parameters, see the Creating PPTP/L2TP + Static IP or PPTP/L2TP + Dynamic IP WAN
Connection section, page 118).
Click the Next button to continue.
Page 58 of 225
