DIR-620 Wireless N300 Router with 3G/CDMA/LTE Support
and USB Port
User Manual
Configuring via Web-based Interface
System Time
On the System / System time page, you can manually set the time and date of the router or
configure automatic synchronization of the system time with a time server on the Internet.

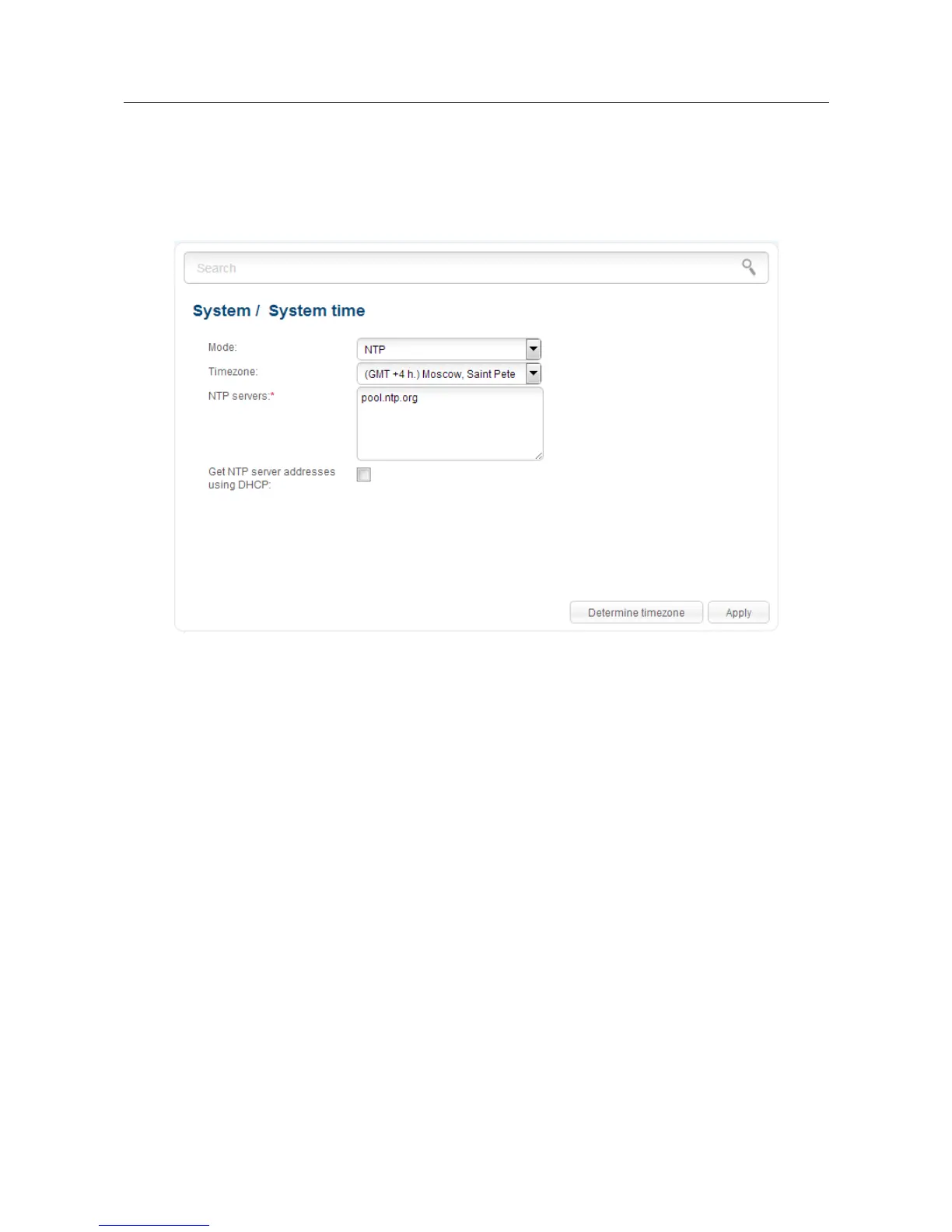

Figure 165. The System / System time page.
To set the system time manually, select the Manual value from the Mode drop-down list and set
the time and date in the fields displayed. Then click the Apply button.
To enable automatic synchronization with a time server, follow the next steps:
1. Select the NTP value from the Mode drop-down list.
2. Select your time zone from the drop-down list. To set the time zone in accordance with the
settings of your operating system, click the Determine timezone button in the bottom
right corner of the page.
3. Specify the needed NTP server in the NTP servers field or leave the server specified by
default.
4. Click the Apply button.
In some cases NTP servers addresses are provided by your ISP. In this case, you need to select the
Get NTP server addresses using DHCP checkbox. Contact your ISP to clarify if this
checkbox needs to be enabled. If the Get NTP server addresses using DHCP checkbox is
selected, the NTP servers field is not available.
Page 214 of 225
