DIR-620
Wireless
N300
Router
with
3G/CDMA/L
TE
Support
and USB Port
User Manual
Configuring via Web-based Interface
Clients
On the
Status /
Clients
page, you can
view the
list of devices
connected to
the router and
devices
accessing its web-based interface.

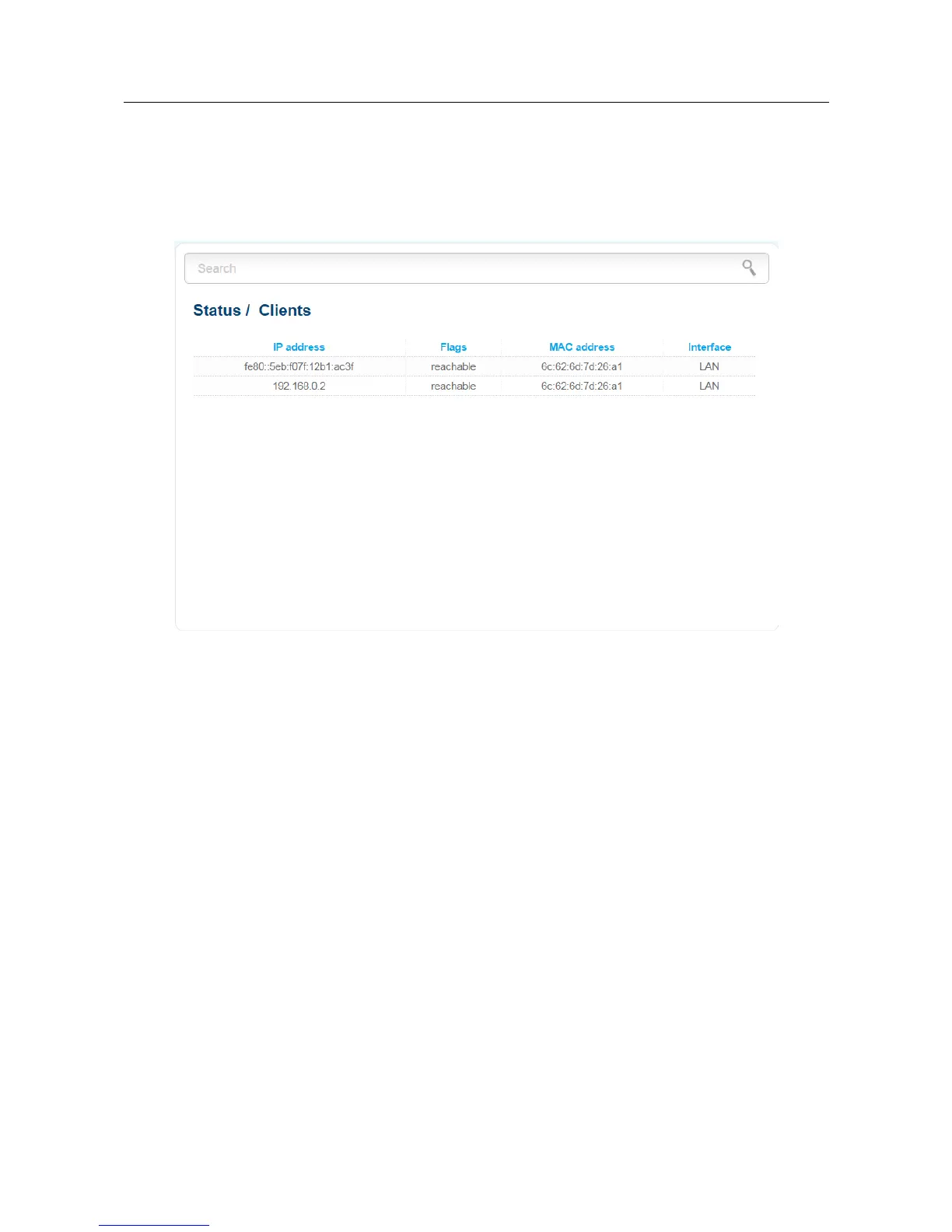

Figure 63. The
Status / Clients
page.
For
each
devi
ce
the
following
data
are
di
splayed:
the
IP
address,
the
MAC
address,
and
the
interface to which the device is connected.
Page
83
of 225
82
84
