DIR-620 Wireless N300 Router with 3G/CDMA/LTE Support
and USB Port
User Manual
Configuring via Web-based Interface
Wireless Network Settings Wizard
To specify all needed settings for your wireless network, click the Wireless network settings
wizard link in the Home section.

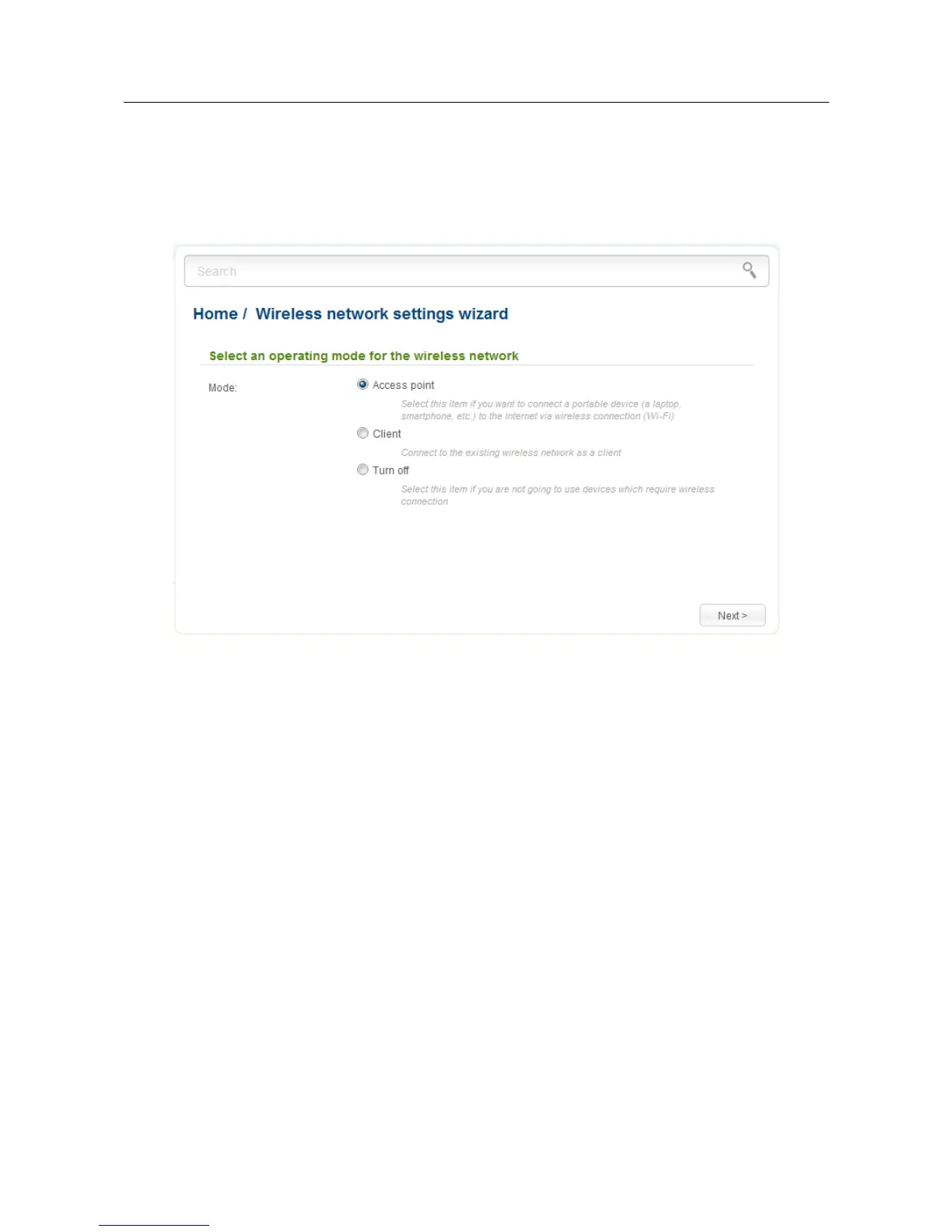

Figure 52. The page for selecting the operating mode for the wireless network.
If you are not going to use the wireless connection, select the Turn off choice of the Mode radio
button. Click the Next button and then click the Apply button on the opened page. After clicking
the button, the Home / Information page opens.
If you want to connect portable devices to the Internet via wireless connection, select the Access
point choice of the Mode radio button. Click the Next button.
If you want to configure the router as a client to connect to a wireless access point, select the Client
choice of the Mode radio button. Click the Next button.
Page 71 of 225
