D-Link DWR-933 User Manual

13D-Link DWR-933 User Manual
Section 3 - Conguration

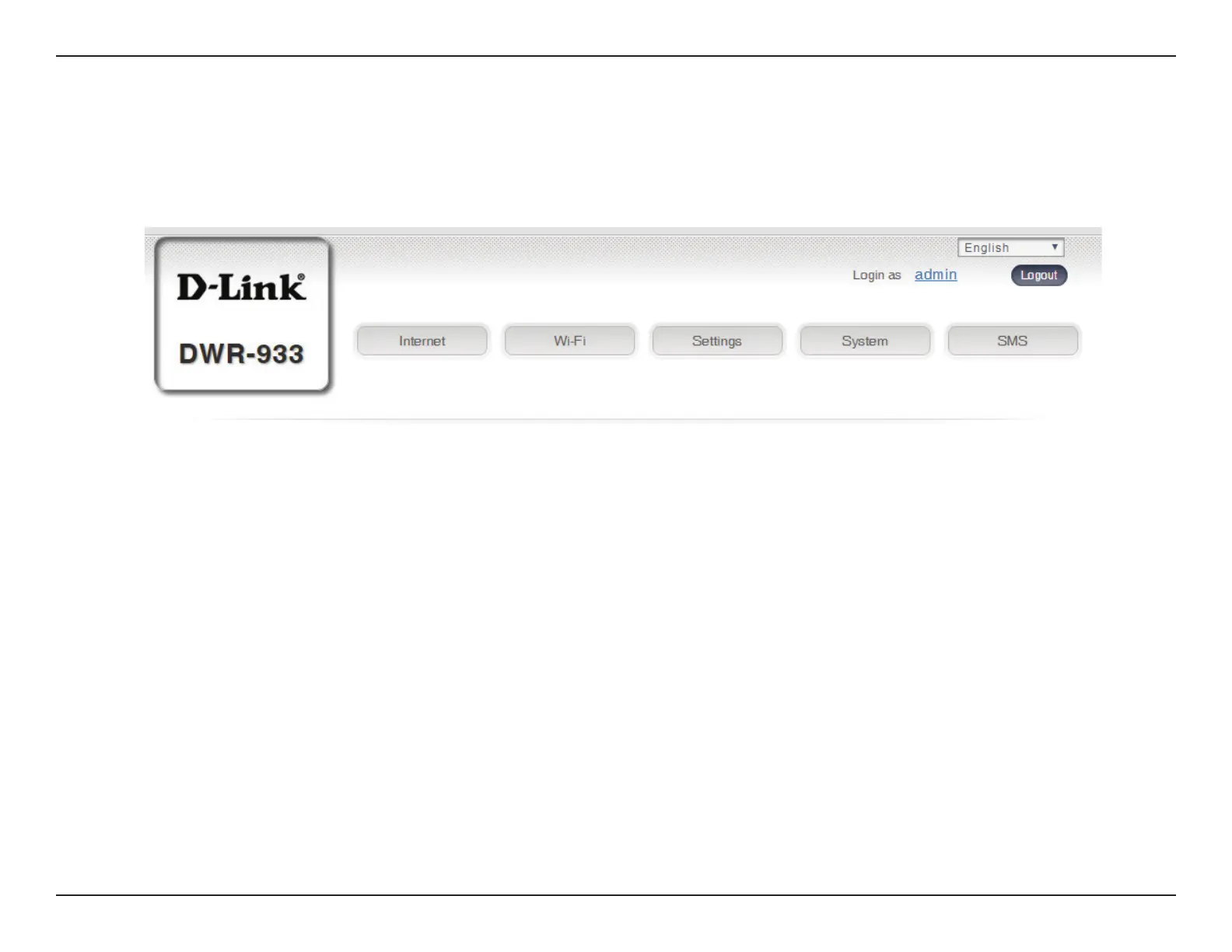

On the home page of the interface, you will nd a menu bar at the top of the page which includes tabs for easy navigation.
The Internet tab allows you to congure your Internet settings, including details about your mobile operator.
The Wi-Fi tab allows you to congure your Wi-Fi network, as well as add new devices using WPS.
The Settings tab allows you to congure rewall and security settings.
The System tab allows you to view system information, change your login information, and upgrade the rmware.
From the SMS tab, you can sent and receive SMS text messages, as well as USSD (Unstructured Supplementary Service
Data) codes, sometimes called “Quick Codes” or “Feature Codes.”
Navigation
Internet
Wi-Fi
Settings
System
SMS

D-Link DWR-933 Specifications

General

SIM card slot	Yes
3G/4G USB modem compatibility	No
Product type	Portable router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
4G standard	LTE
3G standards	DC-HSDPA, HSPA, HSPA+, WCDMA
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Number of products included	1 pc(s)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	0
Output current	1 A
Output voltage	5 V
Battery capacity	2800 mAh
Power source type	Battery
Battery life (max)	16 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	BSMI, RoHS
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	64 mm
Width	105 mm
Height	14 mm
Weight	140 g
