D-Link DWR-933 User Manual

24D-Link DWR-933 User Manual
Section 3 - Conguration

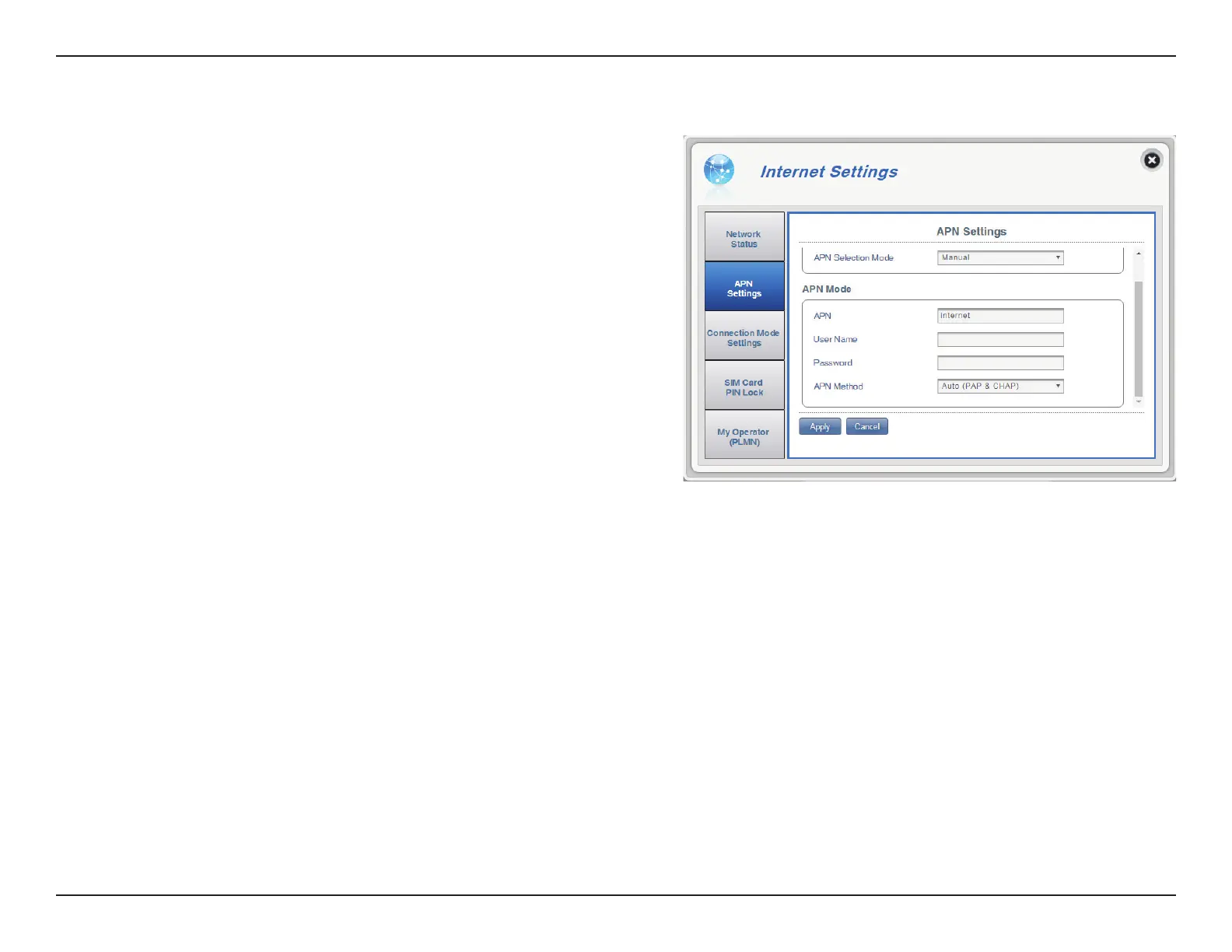

APN
User Name
Password
APN Method
APN Mode
If you are already connected to a mobile network,
your ISP will provide the necessary APN which you
can select from the drop down list. If no options
are available, use the manual conguration on the
previous page.
Enter the username to be used for this connection.
Enter the password to be used for this connection.
Choose the authentication method that your ISP
uses to connect to its mobile network. If you do not
know this information, please contact your service
provider. For more information refer to Connection
Settings on page 16.
Click Apply to save changes.
If you choose to manually select your APN:

D-Link DWR-933 Specifications

General

SIM card slot	Yes
3G/4G USB modem compatibility	No
Product type	Portable router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
4G standard	LTE
3G standards	DC-HSDPA, HSPA, HSPA+, WCDMA
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Number of products included	1 pc(s)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	0
Output current	1 A
Output voltage	5 V
Battery capacity	2800 mAh
Power source type	Battery
Battery life (max)	16 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	BSMI, RoHS
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	64 mm
Width	105 mm
Height	14 mm
Weight	140 g
