D-Link DWR-933 User Manual

18D-Link DWR-933 User Manual
Section 3 - Conguration

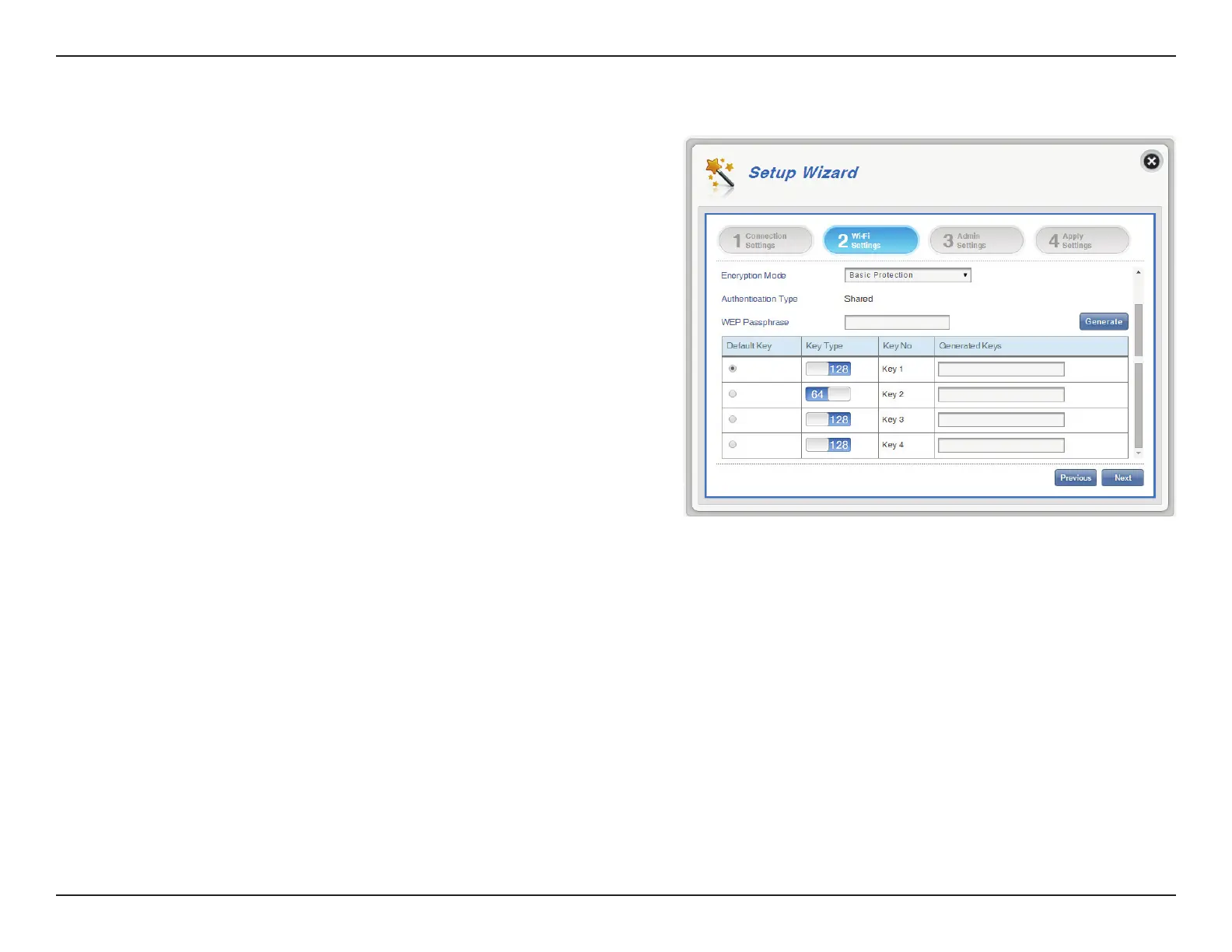

Authentication Type:
WEP Passphrase:
Key 1-4:
Shared - The encryption key is used for
authentication as well as to encrypt data packets.
Enter your passphrase to be used when connecting
to the router. Once you have entered a passphrase,
click Generate to create keys automatically, or enter
them manually below.
You can predetermine up to 4 WEP keys. Select the
WEP key you wish to use by clicking on the radial
buttons next to the keys. Select whether you wish
to use 64 bit or 128 bit characters in your key using
the slider menu. Enter the desired key in the eld
provided.
Click Next to move to the next section.
If you selected Basic Protection:

D-Link DWR-933 Specifications

General

SIM card slot	Yes
3G/4G USB modem compatibility	No
Product type	Portable router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
4G standard	LTE
3G standards	DC-HSDPA, HSPA, HSPA+, WCDMA
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Number of products included	1 pc(s)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	0
Output current	1 A
Output voltage	5 V
Battery capacity	2800 mAh
Power source type	Battery
Battery life (max)	16 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	BSMI, RoHS
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	64 mm
Width	105 mm
Height	14 mm
Weight	140 g
