D-Link DWR-933 User Manual

39D-Link DWR-933 User Manual
Section 3 - Conguration
Firewall Enable
DMZ Settings
PPTP Pass Through
IPsec Pass Through
L2TP Pass Through
WAN Ping Blocking
Access from WAN

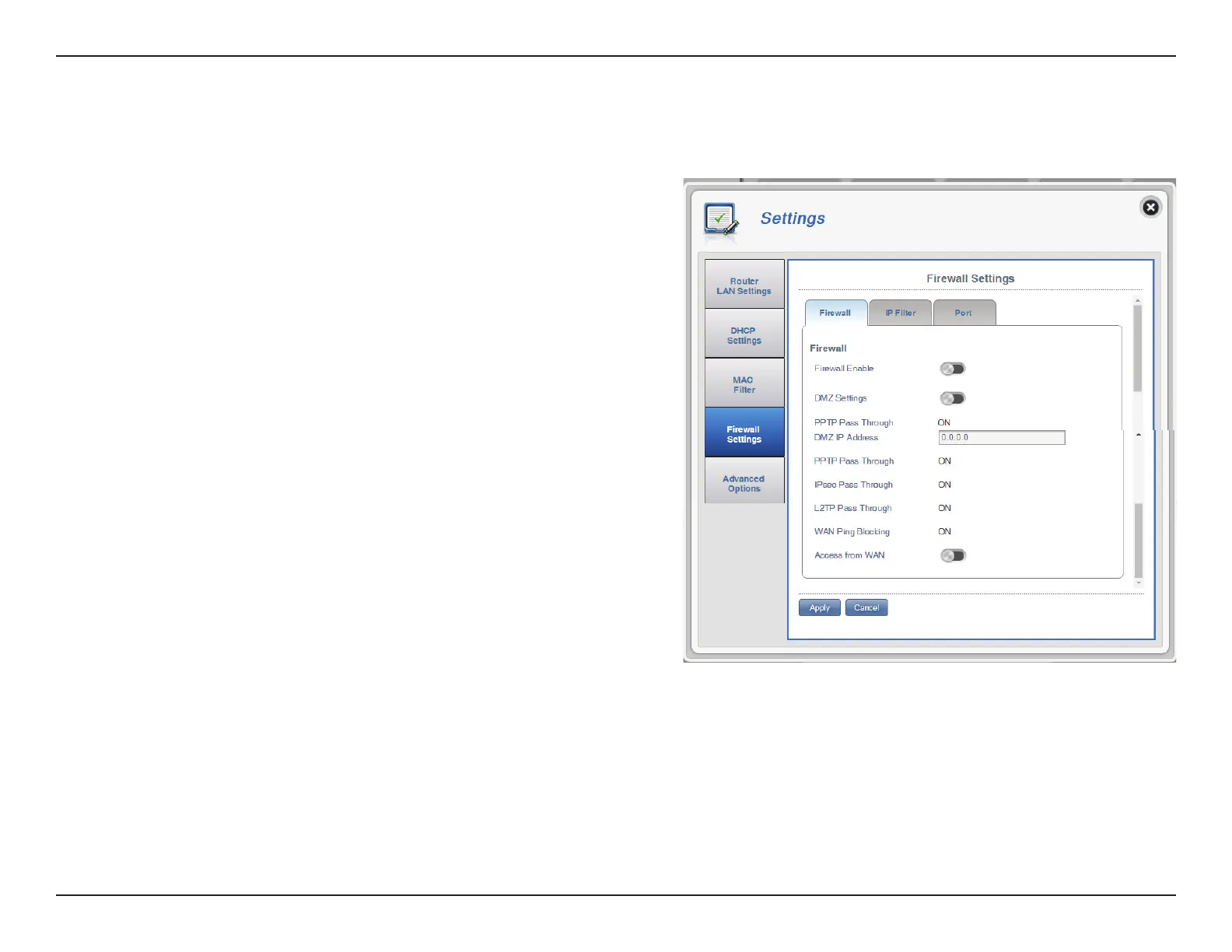

Firewall Settings
A rewall helps protect your network from external cyber attack and intrusions. This page allows you to alter your router’s rewall settings.
Clicking this toggle activates the IP Filter. For more
information see IP Filter on page 41.
Toggling the DMZ (Demilitarized Zone) will expose a
chosen computer to the outside world by completely
disabling all rewalls and routing all inbound trac
to the target IP.
Note: This feature is only recommended for advanced
users. Enabling this option will potentially expose your
computer to attacks over the Internet.
Allows clients to connect to their corporate network
or VPN using the PPTP protocol.
Allows clients to connect to their corporate network
or VPN using the IPsec protocol.
Allows clients to connect to their corporate network
or VPN using the L2TP protocol.
When enabled the DWR-933 will not
respond to pings from WAN.
Clicking this toggle allows access from WAN. This
setting may open your router to external security
threats and is not recommended for most users.
Click Apply to save changes.
Firewall

D-Link DWR-933 Specifications

General

SIM card slot	Yes
3G/4G USB modem compatibility	No
Product type	Portable router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
4G standard	LTE
3G standards	DC-HSDPA, HSPA, HSPA+, WCDMA
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Number of products included	1 pc(s)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	0
Output current	1 A
Output voltage	5 V
Battery capacity	2800 mAh
Power source type	Battery
Battery life (max)	16 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	BSMI, RoHS
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	64 mm
Width	105 mm
Height	14 mm
Weight	140 g
